Shop Legrand Green'up Premium Single-Phase 7.4kW EV Charging Station | 59071 In Iraq Best Prices
Compact wall-mounted Green'up Premium single-phase EV charging station with 7.4kW power, integrated RFID reader, IP/WiFi connectivity, and remote monitoring capabilities for secure and efficient electric vehicle charging.

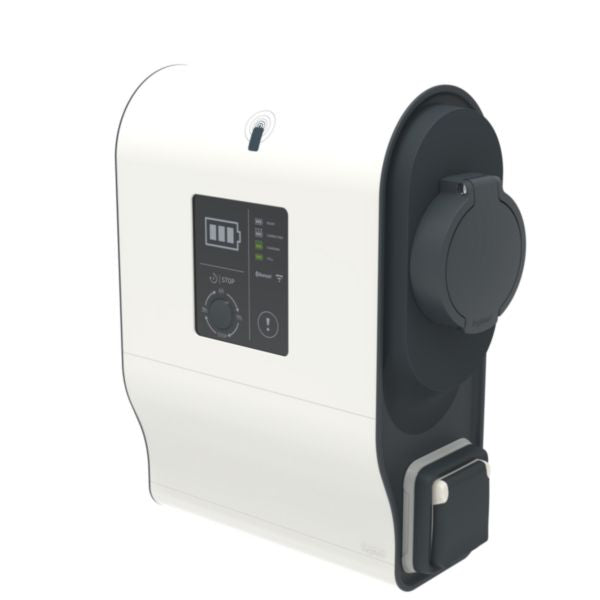

The Legrand Green'up Premium charging station is a compact, wall-mountable electric vehicle charging solution designed for single-phase residential and commercial applications. This Mode 3 charging station delivers 7.4kW at 230V with a maximum current of 32A, providing efficient and secure EV charging capabilities. The unit features integrated RFID reader and built-in communication kit with IP/WiFi OCPP connectivity, enabling remote control and monitoring via smartphone, tablet, or PC. The charging station is equipped with 6mA DC protection against residual direct current, allowing upstream use of RCD type A or F circuit breakers for enhanced electrical safety.
The Green'up Premium charging station comes pre-assembled with its communication kit and RFID reader already mounted and ready for installation. It supports multiple user access through badge-based RFID authentication, making it ideal for shared charging environments. The unit offers flexible power adjustment options ranging from 3.7kW to 7.4kW (16A to 32A), allowing customization based on electrical infrastructure and charging requirements. With its advanced OCPP protocol support, the charging station can be supervised by charging point operators, providing comprehensive fleet management capabilities.
Features include off-peak control via contactor with volt-free contact input, Bluetooth connectivity for easy firmware updates through the dedicated mobile application, and comprehensive protection against electrical faults. The plastic housing provides IP44 protection rating and IK08 impact resistance, suitable for both indoor and outdoor wall-mounted installations. The charging station operates reliably in temperature ranges from -25°C to 50°C, with storage capability up to 70°C, ensuring year-round performance in various climates.
Key Features
- Integrated RFID reader with badge-based access control for multi-user charging environments
- Built-in communication kit with IP/WiFi OCPP protocol for remote control via smartphone, tablet, or PC
- 6mA DC protection against residual direct current with support for upstream RCD type A or F
- Flexible power adjustment from 3.7kW to 7.4kW (16A to 32A) to match electrical infrastructure
- Wall-mountable compact plastic design with IP44 protection and IK08 impact resistance
- Off-peak control option via contactor with volt-free contact input
- Bluetooth connectivity for easy firmware updates through mobile application
- OCPP protocol support for charging point operator supervision and fleet management
- Operating temperature range from -25°C to 50°C for year-round reliability
- Mode 2/3 EV charging compatibility with Type 2 socket outlet connector
Technical Specifications
| Specification |
Value |
| Product Reference | 059071 |
| EAN Code | 3414972345323 |
| Installation Type | Single-phase connection |
| Nominal Power | 7.4 kW |
| Nominal Voltage | 220-240 V |
| Maximum Current | 32 A |
| Number of Charging Units | 1 |
| Connector Type | Type 2 socket outlet |
| Charging Mode | Mode 2/3 |
| Housing Material | Plastic |
| Dimensions (W x H x D) | 295 mm x 365 mm x 140 mm |
| IP Protection Rating | IP44 |
| Impact Resistance Rating | IK08 |
| Operating Temperature Range | -25°C to 50°C |
| Storage Temperature Range | -25°C to 70°C |
| DC Protection | 6mA DC residual current protection |
| Communication Protocol | OCPP 1.6J |
| Connectivity | Bluetooth, Modbus, Network, WiFi 2.4G, OCPP |
| Power Adjustment Options | 3.7 kW / 4.6 kW / 5.7 kW / 7.4 kW (16A / 20A / 25A / 32A) |
| RFID Reader | 13.56MHz integrated RFID reader |
| Mobile Application | Available on App Store and Google Play Store |
| Wall Mounting Kit | Included |
| Optional Floor Mounting | Pedestal ref. 0 590 52 available as option |
| Energy Meter | No |
| Display | No |
| Color | White |
| Connected Object | Yes |
| Programmable | Yes |
| Voice Command Compatible | No |
| Smart Home Integration | Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa |
