Professional single-phase 7.4kW Mode 3 EV charging station with integrated RFID reader, Bluetooth connectivity, and OCPP protocol support for secure multi-user access and remote management

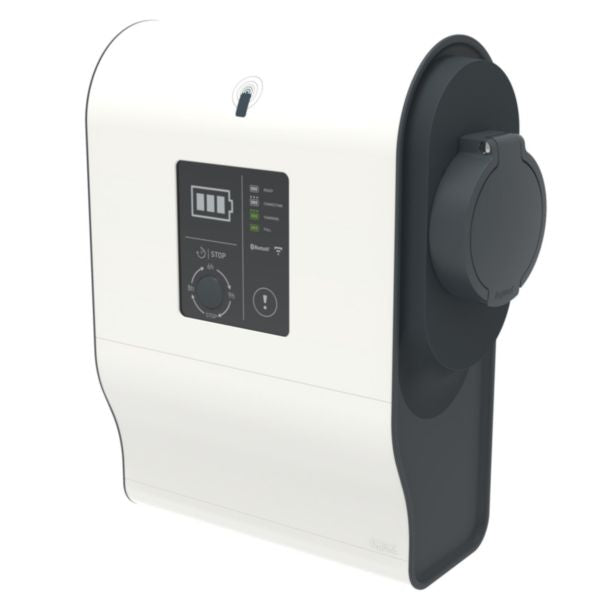

The Legrand Green'up Premium is a professional-grade single-phase electric vehicle charging station designed for secure multi-user access and remote management. This Mode 3 charging station delivers 7.4kW of power at 32A, featuring an integrated RFID reader for badge-based access control and Bluetooth connectivity via the EV Charge app for configuration and remote monitoring. The station comes with a communication kit pre-mounted and ready for installation, supporting IP network and WiFi connectivity for seamless integration into modern charging infrastructure. With its IP44 and IK08 plastic housing, this charging station is built to withstand harsh outdoor and indoor environments while maintaining optimal performance and safety standards.
Key technical features include embedded 6mA DC residual current protection, allowing compatibility with upstream RCD type A or F devices. The charging station supports adjustable power delivery (3.7/4.6/5.7/7.4 kW or 16/20/25/32 A) and offers deferred charging capability through the front panel or external controls such as contactors, clocks, and switches via dry contact input at 12V. The unit operates across a temperature range of -25°C to 50°C, with storage capability from -25°C to 70°C, ensuring reliable performance in diverse climatic conditions.
The Green'up Premium charging station incorporates advanced connectivity features including Modbus, OCPP 1.6J protocol support, and compatibility with Google Play Store and App Store applications. Its programmable nature allows for flexible configuration and management through web software, making it ideal for fleet operators, commercial properties, and public charging networks. The charging station is supplied with a wall-mounting kit as standard, with optional floor mounting pedestal available separately.
Key Features
- Integrated RFID reader for secure multi-user badge-based access control
- Bluetooth connectivity via EV Charge app for remote configuration and monitoring
- Adjustable power delivery from 3.7kW to 7.4kW (16A to 32A)
- Embedded 6mA DC residual current protection compatible with RCD type A or F
- OCPP 1.6J protocol support for charging point operator supervision
- Deferred charging capability with external control options (contactor, clock, switch)
- IP44 and IK08 plastic housing for outdoor and harsh environments
- Pre-mounted communication kit ready for immediate installation
- WiFi and IP network connectivity for seamless infrastructure integration
- Programmable via web software with Modbus protocol support
- Operating temperature range -25°C to 50°C for reliable year-round performance
- Wall-mounting kit included with optional floor pedestal available
Technical Specifications
| Specification |
Value |
| Product Reference | 059006 |
| EAN Code | 3414972345279 |
| Brand | Legrand |
| Product Line | Green'up Premium |
| Installation Type | Single-phase |
| Nominal Power | 7.4 kW |
| Rated Current | 32 A |
| Charging Mode | Mode 3 |
| Number of Charging Units | 1 |
| Connector Type | Type 2 socket outlet |
| Number of Vehicle Connectors | 1 Type 2 socket outlet |
| Width | 295 mm |
| Height | 365 mm |
| Depth | 140 mm |
| Housing Material | Plastic |
| Color | White |
| IP Rating | IP44 |
| IK Rating | IK08 |
| Residual Current Protection | 6mA DC embedded |
| Nominal Voltage | 220-240 V |
| Operating Temperature | -25°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Connectivity | Bluetooth, WiFi 2.4G, IP Network, Modbus, OCPP 1.6J |
| RFID Reader | Yes - 13.56MHz integrated |
| Communication Kit | Pre-mounted and included |
| Mobile Application | EV Charge app (Google Play Store, App Store) |
| Programming Method | Web software |
| Power Adjustment | 3.7/4.6/5.7/7.4 kW or 16/20/25/32 A |
| Deferred Charging | Yes - 3/6/9 hours |
| External Control Input | Dry contact 12V (contactor, clock, switch compatible) |
| Energy Meter | No |
| Display | No |
| Smart Home Compatible | No |
| Voice Command Support | No |
| Charging Cable Length | 0 m (wall-mounted charging point) |
| Mounting Kit | Wall-mounting kit included |
| Optional Accessories | Floor mounting pedestal (Ref. 0 590 52) |
| ISO 15118-2 Support | Not supported |
| Warranty | Standard manufacturer warranty |
