Shop Legrand Green'up Access Flush Mounting Metal Socket 16A 230V | 77857 In Iraq Best Prices
Secure flush-mounting metal EV charging socket with 16A 230V capacity, IP55-IK10 protection, locked flap with unique keys, and German standard compliance for Mode 1/Mode 2 vehicle charging.

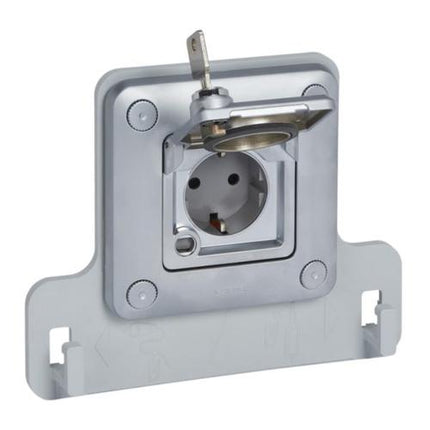

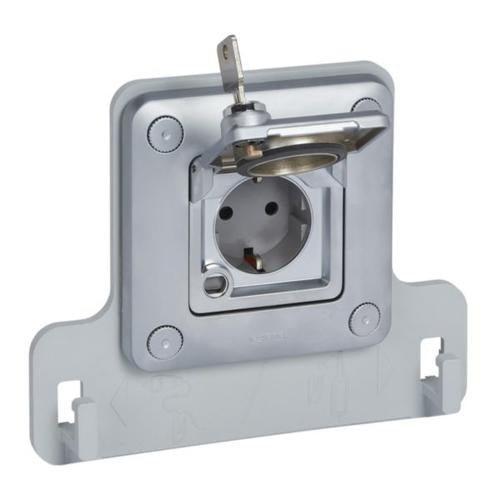

The Legrand Green'up Access is a premium flush-mounting metal charging socket specifically designed for electric and hybrid vehicles. This robust charging solution operates at 230V single-phase with a 16A capacity, making it ideal for Mode 1 and Mode 2 EV charging applications. The socket features exceptional durability with IP55-IK10 protection ratings, ensuring reliable performance in both residential and commercial environments.

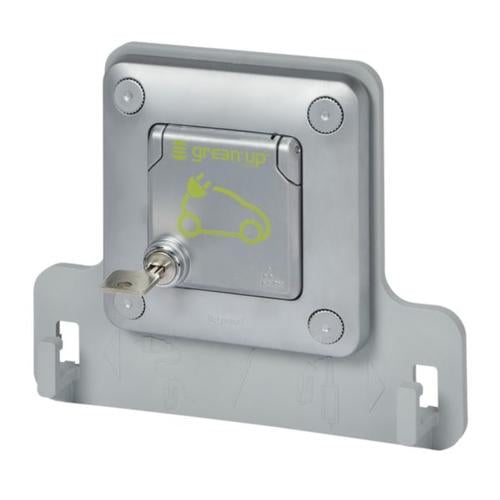

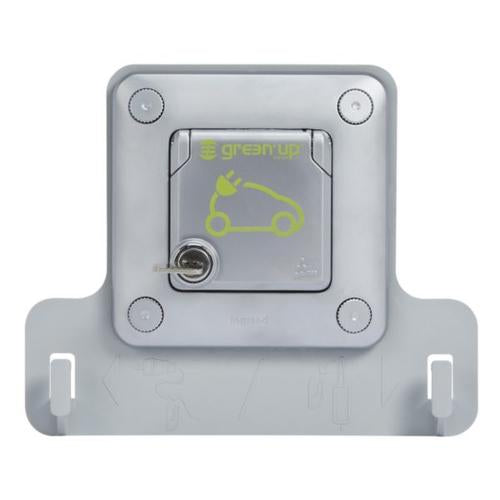

This charging socket incorporates advanced security features including a locked flap cover with unique key combinations offering 250 different locking variations. The heavy-duty mechanism utilizes silvered contacts for superior conductivity and longevity. Installation is straightforward with screw connection terminals and compatibility with standard 3 x 2.5 mm² dedicated power lines protected by appropriate 30mA RCBO or RCD/circuit breaker combinations. The socket comes complete with mounting plate, support hardware, and a unique set of two keys for access control.
The Green'up Access is manufactured to German standard specifications and conforms to IEC 60884-1 international standards. It features a compact flush-mounting design with dimensions of 110 x 110 x 47mm, suitable for installation in 1-gang Batibox flush-mounting boxes with 50mm depth. The recommended installation height is 1.30m from the floor. This socket is ideal for private residences, lock-up garages, parking facilities, and workplace charging stations, providing secure and reliable EV charging infrastructure.
Key Features
- IP55-IK10 robustness rating for superior weather and impact resistance
- Locked flap cover with 250 unique key combination options for enhanced security
- Heavy-duty mechanism with silvered contacts for reliable long-term performance
- Compatible with Mode 1 and Mode 2 EV charging standards
- German standard outlet conforming to IEC 60884-1 international specifications
- Single-phase 230V 16A capacity suitable for residential and commercial use
- Includes mounting plate, support hardware, and unique key set
- Screw connection terminals for secure electrical connections
- Compact flush-mounting design for seamless installation
- Recommended installation height of 1.30m for optimal accessibility
Technical Specifications
| Specification |
Value |
| Product Type | Flush-mounting metal charging socket |
| Brand | Legrand |
| Model | Green'up Access |
| Reference Number | 077857 |
| EAN Code | 3414970321299 |
| Nominal Voltage | 230V AC single-phase |
| Maximum Nominal Current | 16A |
| Type of Current | AC single phase |
| Charging Modes | Mode 1 and Mode 2 compatible |
| Connection System | Screw connection |
| Power Contact Cross Section | 2.5-2.5 mm² |
| Number of Communication Contacts | 3 |
| IP Rating | IP55 |
| IK Rating | IK10 |
| Standard Compliance | German standard, IEC 60884-1 |
| Width | 110 mm |
| Height | 110 mm |
| Depth | 47 mm |
| Installation Depth Required | 50 mm (Batibox flush-mounting box) |
| Recommended Installation Height | 1.30 m from floor |
| Operating Temperature Range | -5°C to +40°C |
| Storage Temperature Range | -10°C to +70°C |
| Contact Material | Silvered contacts |
| Mechanism Type | Heavy-duty with locked flap |
| Key Combinations Available | 250 different combinations |
| Included Accessories | Mounting plate, support hardware, 2 unique keys |
| Protection System | 30mA RCBO or 30mA RCD + 20A C-curve circuit breaker |
| Recommended Cable Size | 3 x 2.5 mm² dedicated line per socket |
| LED Integrated | No |
| Interlocking Actuator | No |
| Access Interlocking | No |
| Suitable Applications | Private houses, lock-up garages, parking lots, workplace charging stations |
