Description

Shop Legrand Fuse Carrier Industrial Cylindrical 8.5x31.5mm 400V 1P+N | 5816 In Iraq Best Prices

Professional isolating fuse carrier for industrial cylindrical cartridge fuses 8.5x31.5mm, 400V AC, 1P+N configuration with 20kA breaking capacity and DIN rail mounting

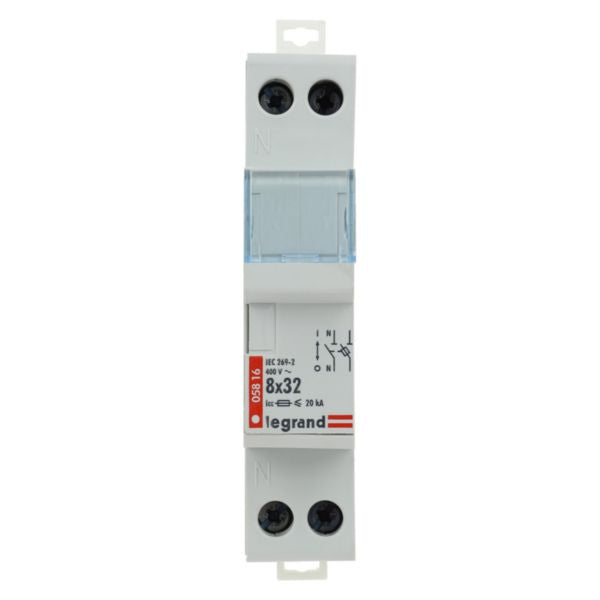

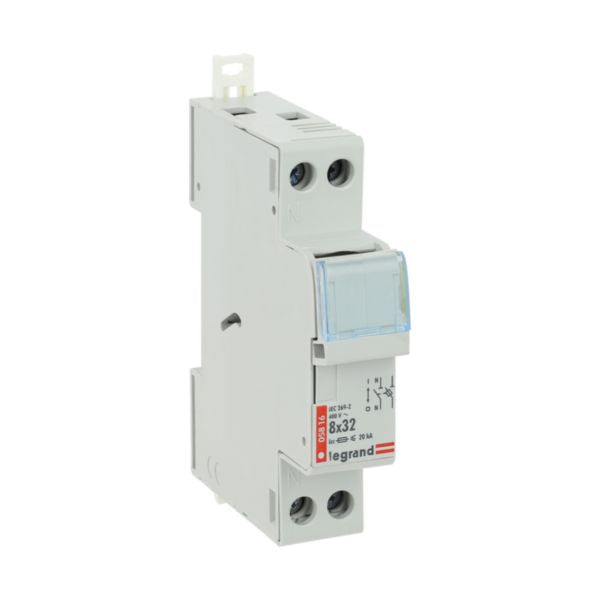

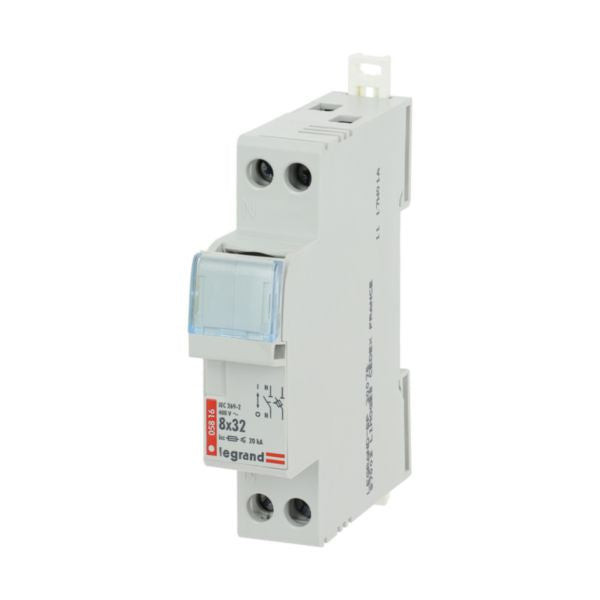

The Legrand Fuse Carrier (Reference 005816) is a premium isolating fuse carrier specifically designed for industrial cylindrical cartridge fuses conforming to IEC 60269-2 standards. This professional-grade component is engineered to accommodate industrial cylindrical cartridge fuses of 8.5 x 31.5 mm dimensions and operates at 400V AC voltage. The carrier is equipped with a single pole plus neutral configuration, making it ideal for three-phase electrical distribution systems requiring precise fault protection. This fuse carrier features an impressive short-circuit breaking capacity of 20 kA with the 8.5 x 31.5 mm cartridge fuse, ensuring reliable protection against electrical faults and overcurrent conditions. The product incorporates an isolating mechanism that conforms to IEC 60947-3 standards, providing safe disconnection of electrical circuits. The carrier is mounted on DIN rails for easy installation in electrical cabinets and switchboards, featuring a lockable design that prevents accidental removal of fuses. The device offers IP20 degree of protection and is finished in RAL 7035 light gray color for aesthetic integration into industrial control panels. With its robust construction and compliance with international standards, this Legrand fuse carrier represents a reliable solution for industrial electrical protection applications. The product is designed for both aM (general purpose) and gG (fast-acting) type cartridge fuses, providing flexibility in fault protection strategies.

Key Features

Isolating fuse carrier for industrial cylindrical cartridge fuses compliant with IEC 60269-2 standards
Rated voltage 400V AC with single pole plus neutral configuration for three-phase systems
Short-circuit breaking capacity of 20kA with 8.5x31.5mm cartridge fuses
Lockable design preventing accidental fuse removal and ensuring circuit safety
DIN rail mounting for easy installation in electrical cabinets and switchboards
IP20 degree of protection with RAL 7035 light gray finish
Conforms to IEC 60947-3 isolator standards for safe circuit disconnection
Compatible with both aM and gG type cartridge fuses for flexible protection

Technical Specifications

Specification	Value
Product Reference	005816
EAN Code	3245060058166
Nominal Voltage	400V AC
Fuse Size	8.5 x 31.5 mm (8.5 x 32 mm cartridge dimensions)
Number of Poles	1 Pole + Neutral (1P+N)
Short-Circuit Breaking Capacity	20 kA at 400V with 8.5x31.5 cartridge fuse; 100 kA with 10x38 cartridge fuse
Mounting Method	DIN Rail
Number of Modules	1
Degree of Protection	IP20
RAL Color Code	RAL 7035 (Light Gray)
Lockable Function	Yes
Optical Defect Indication	No
Concurrently Switching Neutral Conductor	Yes
Standards Compliance	IEC 60269-2, IEC 60947-3
Fuse Types Compatible	aM (general purpose) and gG (fast-acting) cartridge fuses
Manufacturer	Legrand

Order Legrand Fuse Carrier Industrial Cylindrical 8.5x31.5mm 400V 1P+N | 5816 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
