Professional 3P+N fuse carrier for 10x38mm industrial cylindrical cartridge fuses at 500V, featuring Class II insulation, DIN-rail mounting, padlock capability, and IP20 protection with 1x25mm² terminals.

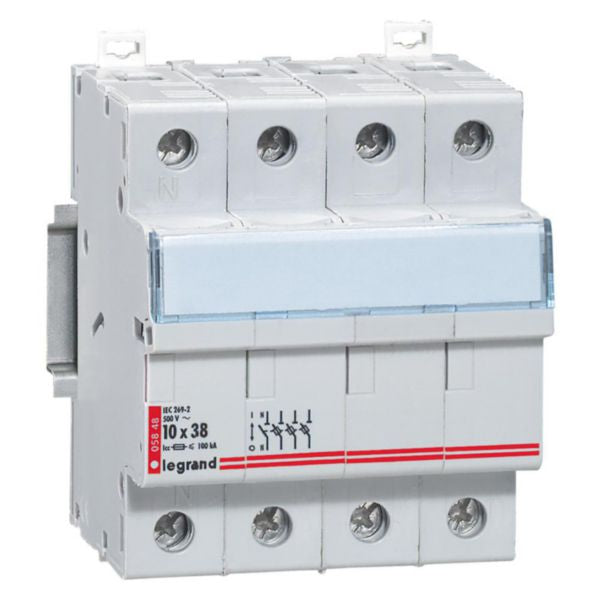

The Legrand Fuse Carrier 3P+N (REF. 005848) is a professional-grade switch-disconnector designed for disconnection and protection of electrical circuits. This industrial-rated device handles 10x38mm cylindrical cartridge fuses at 500V nominal voltage, making it ideal for three-phase systems with neutral conductor. The carrier features Class II insulation for enhanced safety and is equipped with padlock capability using accessory 005799, ensuring secure circuit isolation and maintenance access control.
This DIN-rail mounted fuse carrier offers exceptional reliability and compliance with international standards including IEC 60269-1, IEC 60269-2, IEC 60269-2-1, and NF C 63-210. The device provides IP20 protection rating and features screw terminals with 1x25mm² maximum capacity, suitable for various industrial applications. The insulated carrier design includes a label holder for clear circuit identification and optional blown fuse indicator functionality with accessory 005790, allowing for quick visual fault detection.
With its robust construction and professional specifications, this fuse carrier is essential for industrial electrical installations requiring reliable overcurrent protection and circuit disconnection. The product conforms to strict safety standards and must be installed by qualified electricians in compliance with local electrical installation rules. All maintenance and repairs should be performed exclusively by Legrand-approved personnel to maintain warranty coverage and ensure optimal performance.
Key Features
- Class II insulated carrier with padlock capability using accessory 005799 for secure circuit isolation
- DIN-rail mounted with dual clamps (top and bottom) allowing independent removal while busbar remains in place
- Handles 10x38mm cylindrical cartridge fuses at 500V nominal voltage for three-phase systems
- Screw terminals with 1x25mm² maximum capacity and PZ2 screw head design
- IP20 protection rating with optional blown fuse indicator using accessory 005790
- Built-in label holder for clear and convenient circuit identification
- Complies with IEC 60269-1, IEC 60269-2, IEC 60269-2-1, and NF C 63-210 standards
- Switchable neutral conductor (3P+N configuration) for complete circuit control
Technical Specifications
| Specification |
Value |
| Product Reference | 005848 |
| EAN Code | 3245060058487 |
| Nominal Voltage | 500 V |
| Fuse Size | 10x38 mm |
| Number of Poles | 3P+N (Three-phase with neutral) |
| Mounting Method | DIN rail with dual clamps |
| Terminal Capacity | 1x25 mm² maximum |
| Screw Head Type | PZ2 |
| Degree of Protection | IP20 |
| Insulation Class | Class II |
| Lockable | Yes (with accessory 005799) |
| Optical Defect Indication | No (optional with accessory 005790) |
| RAL Number | 7035 |
| Concurrently Switching Neutral | Yes |
| Standards Compliance | IEC 60269-1, IEC 60269-2, IEC 60269-2-1, NF C 63-210 |
| Manufacturer | Legrand |
| Product Type | Switch-Disconnector Fuse Carrier |
| Fuse Supply | Not included |
