Shop Legrand Fuse Carrier 1P+N Cartridge Fuses 8.5x23mm 10A | 5820 In Iraq Best Prices
Professional household fuse carrier for 8.5x23mm cartridge fuses, 10A rated, 1P+N configuration with Class II insulation, padlockable design, DIN-rail mounting, and optional blown-fuse indication.

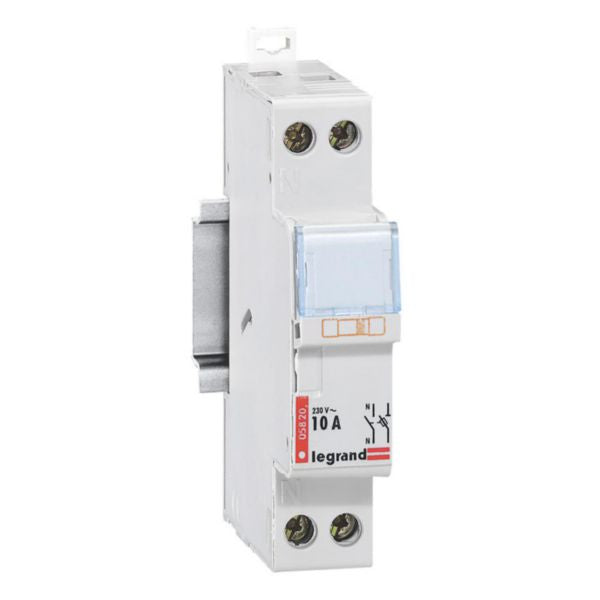

The Legrand Fuse Carrier 005820 is a professional-grade household disconnector designed for cylindrical cartridge fuses with dimensions of 8.5x23mm. This high-quality electrical component is rated for 10A at 250V and features a 1P+N (single pole plus neutral) configuration, making it ideal for residential and small commercial electrical installations. The device incorporates Class II insulation standards, ensuring superior safety and protection against electrical hazards.
This fuse carrier is engineered with a padlockable design that allows for secure locking using the optional Accessory 005799, providing enhanced safety during maintenance and troubleshooting procedures. The product features an IP20 degree of protection rating, protecting internal components from dust and contact hazards. The terminals are designed to accommodate up to 1x16mm² cable, with screw head PZ1 specification, ensuring reliable electrical connections. The DIN-rail modular design allows for independent removal without disrupting the busbar supply to other components in the row.
Compliant with international standards EN 60269-1 and IEC 60269-1-3, this fuse carrier offers optional blown-fuse indication capability through the addition of Accessory 005790. The product includes a convenient label holder for clear circuit identification and features dual DIN rail clamps positioned on both top and bottom sides for secure mounting. This professional-grade component is manufactured by Legrand, a global leader in electrical infrastructure solutions, ensuring reliability and longevity in demanding electrical environments.
Key Features
- Class II insulated carrier with padlockable design for enhanced safety and maintenance security
- DIN-rail modular mounting with dual top and bottom clamps for independent removal capability
- Terminal capacity of 1x16mm² maximum with PZ1 screw head specification for reliable connections
- IP20 degree of protection rating safeguarding against dust and contact hazards
- Optional blown-fuse indication capability through Accessory 005790 for fault monitoring
- Compliant with EN 60269-1 and IEC 60269-1-3 international safety standards
- Convenient label holder for clear circuit identification and organization
- Rated for 10A at 250V with 1P+N configuration for residential applications
Technical Specifications
| Specification |
Value |
| Product Reference | 005820 |
| EAN Code | 3245060058203 |
| Nominal Voltage | 250V |
| Rated Current | 10A |
| Fuse Size | 8.5 x 23 mm (cylindrical cartridge) |
| Number of Poles | 1P+N (Single Pole + Neutral) |
| Mounting Method | DIN rail |
| Insulation Class | Class II |
| Degree of Protection | IP20 |
| Terminal Capacity | 1 x 16 mm² maximum |
| Screw Head Type | PZ1 |
| Lockable Design | Yes (with Accessory 005799) |
| Blown-Fuse Indication | Optional (with Accessory 005790) |
| RAL Color Number | 7035 |
| Compliant Standards | EN 60269-1, IEC 60269-1-3 |
| Neutral Conductor | Yes (Concurrently switching) |
| Mounting Position | DIN rail clamps - top and bottom |
| Label Holder | Yes (included for circuit identification) |
