Description

Shop Legrand Electromechanical Siren IP30 IK05 24V DC | 41533 In Iraq Best Prices

Professional electromechanical siren delivering 100dB acoustic output with IP30 protection, 24V DC operation, and reliable performance for industrial security and alarm applications.

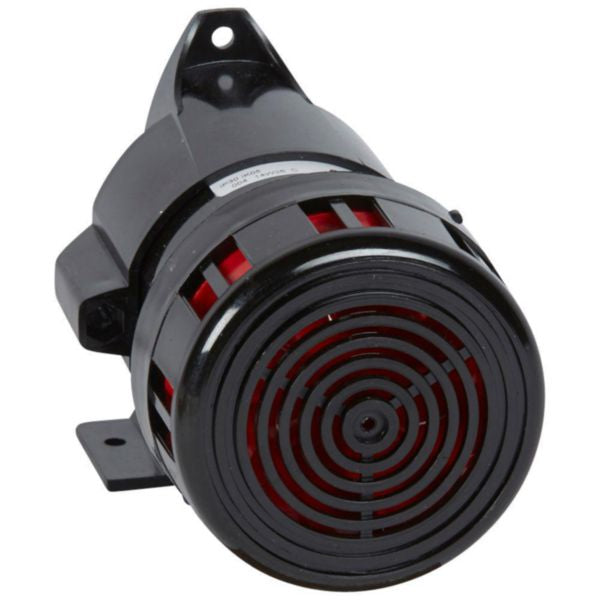

The Legrand Electromechanical Siren (REF. 041533) is a professional-grade audible alarm device designed for industrial and commercial security applications. This DC-powered siren operates at 24V= with a power consumption of 12W and draws 516mA, delivering an impressive acoustic output of 100dB at 1 meter distance. Built with a durable plastic housing in black, the siren features IP30 protection rating against dust and water spray, combined with IK05 impact resistance for reliable performance in challenging environments. The device is supplied with screws for both surface and semi-flush mounting options, making it versatile for various installation scenarios. Designed for continuous operation with a maximum continuous rating of 200 hours, this electromechanical siren is ideal for emergency alert systems, industrial control panels, and security installations. The compact dimensions (73mm width × 103mm height × 60mm depth with 63mm built-in depth) allow for flexible placement in tight spaces. Operating safely across a wide temperature range from -10°C to +55°C, the siren maintains consistent performance in diverse climatic conditions. The halogen-free construction ensures environmental compliance and safety standards. With its screwed terminal connection type and straightforward installation process, this Legrand siren provides reliable acoustic signaling for critical applications requiring immediate attention and clear audible alerts.

Key Features

High acoustic output of 100dB at 1 meter distance for clear emergency alerts
IP30 protection rating against dust and water spray with IK05 impact resistance
24V DC power supply with low 12W power consumption and 516mA current draw
Compact dimensions (73×103×60mm) suitable for surface and semi-flush mounting
Halogen-free construction ensuring environmental compliance and safety standards
Wide operating temperature range from -10°C to +55°C for diverse climates
Maximum continuous rating of 200 hours for reliable extended operation
Screwed terminal connection for secure and straightforward installation

Technical Specifications

Specification	Value
Product Reference	041533
EAN Code	3245060415334
Brand	Legrand
Type	Electromechanical Siren
Nominal Voltage	24V DC (24-24V range)
Power Consumption	12W
Current Draw	516mA (0.5A)
Acoustic Output	100dB at 1 meter
Housing Material	Plastic
Housing Color	Black
Protection Rating (IP)	IP30
Impact Resistance (IK)	IK05
Width	73mm
Height	103mm
Depth	60mm
Built-in Depth	63mm
Vertical Fixing Distance	78mm
Horizontal Fixing Distance	71mm
Mounting Method	Surface mounted/Recessed mounted
Connection Type	Screwed terminal
Operating Temperature Range	-10°C to +55°C
Storage Temperature Range	0°C to +55°C
Maximum Continuous Rating	200 hours
Weight	0.2kg
Halogen Free	Yes
Radio Controlled	No
Contains Batteries	No
Rainproof Plate Protection	No
Luminous Signal	No
Carbon Footprint (Manufacturing)	1.510 kg CO2 eq.

Order Legrand Electromechanical Siren IP30 IK05 24V DC | 41533 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
