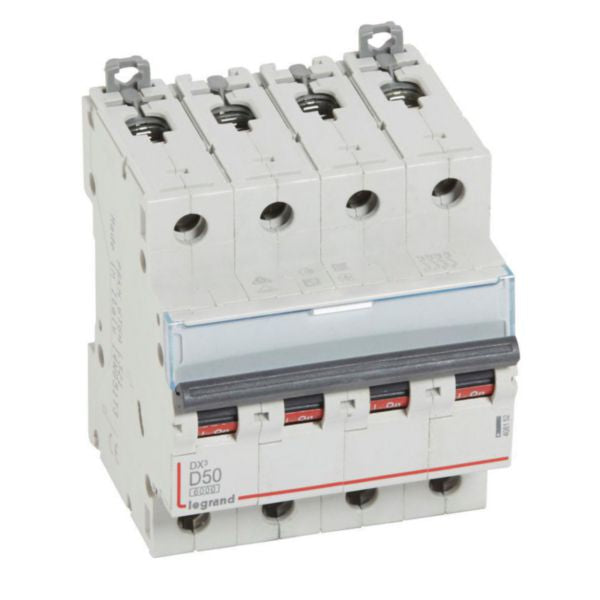

Shop Legrand DX3 MCB 4P 50A D Curve 6kA Circuit Breaker | 408152 In Iraq Best Prices
Professional-grade 4-pole, 50A thermal magnetic circuit-breaker with 6kA breaking capacity, D curve characteristic, and IP20 fingerproof protection for residential and commercial electrical installations.
The Legrand DX3 MCB is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This 4-pole, 50A rated device features a D curve characteristic with a breaking capacity of 6000A according to IEC 60898-1 standard for household installations. The tripping threshold in case of short-circuit is between 500A and 700A (D curve between 10 In and 14 In), providing reliable protection for electrical systems operating at 400V~. The device offers IP20 "fingerproof" safety protection, preventing contact with solid bodies larger than 12.5mm, making it suitable for residential and small commercial installations.
This circuit-breaker can be supplied by copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side). It is equipped with two DIN rail clamps for independent removal when the prong busbar is still in place. The device can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and accessories, and can be connected to aluminum cable with terminal accessory. The label holder allows clear identification of circuits, with ON and OFF indications printed on red and green backgrounds respectively.
The product complies with substance-restriction requirements and has been designed in an environmentally conscious process with a carbon footprint of 3.806 kg CO2 eq. during the manufacturing phase. It features halogen-free construction and meets all relevant safety and environmental standards including RoHS Directive and REACH Declaration requirements.
Key Features
- Thermal magnetic protection against overloads and short-circuits with 6000A breaking capacity per IEC 60898-1
- 4-pole configuration with D curve characteristic for optimal circuit protection and selective tripping
- IP20 fingerproof safety rating protecting against contact with solid bodies larger than 12.5mm
- Compatible with copper cables, prong busbars, fork busbars, and Legrand HX3 plug busbars for flexible installation
- DIN rail mounted with independent removal capability and label holder for circuit identification
- Supports Legrand DX3 auxiliaries, RCD add-on modules, and additional accessories for enhanced functionality
- Halogen-free construction with low environmental impact and 3.806 kg CO2 eq. manufacturing carbon footprint
- Rated for 400V~ AC operation with 50-60 Hz frequency range and wide ambient temperature tolerance
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit-Breaker (MCB) |
| Number of Poles | 4 poles (4P) |
| Rated Current | 50 A |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity (Icn) | 6 kA at 400V according to EN 60898 |
| Breaking Capacity (Icu) | 10 kA at 400V according to IEC 60947-2 |
| Trip Characteristic | D curve (500A-700A or 10-14 In) |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (Fingerproof) |
| Impact Strength Rating | IK02 |
| Ambient Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Connectable Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Connection Type | Screwed Terminal |
| Modular Width | 4 modules |
| Physical Width | 70.8 mm |
| Physical Height | 94.8 mm |
| Physical Depth | 77.8 mm (built-in depth: 44 mm) |
| Mounting Method | DIN Rail |
| Color | Grey (RAL 7035) |
| Supply Direction | Top or Bottom |
| Neutral Conductor Switching | Yes - Concurrently switching neutral conductor |
| Halogen Free | Yes |
| Pollution Degree | 2 |
| Additional Equipment | Yes - Compatible with DX3 auxiliaries, RCD add-on modules, and accessories |
| Flush-mounted Installation | Yes |
| Manufacturing Carbon Footprint | 3.806 kg CO2 eq. (Global Warming Potential A1-A3) |
| Reference Number | 408152 |
| EAN Code | 3245064081528 |
| Brand | Legrand |
| Product Series | DX3 |
