Shop Legrand DX3 MCB 4 Pole 80A D-Curve Circuit Breaker | 409540 In Iraq Best Prices
Legrand DX³ four-pole 80A D-curve MCB circuit breaker with 16kA breaking capacity, IP20 finger-safe terminals, and complete DX³ compatibility for residential and commercial electrical protection

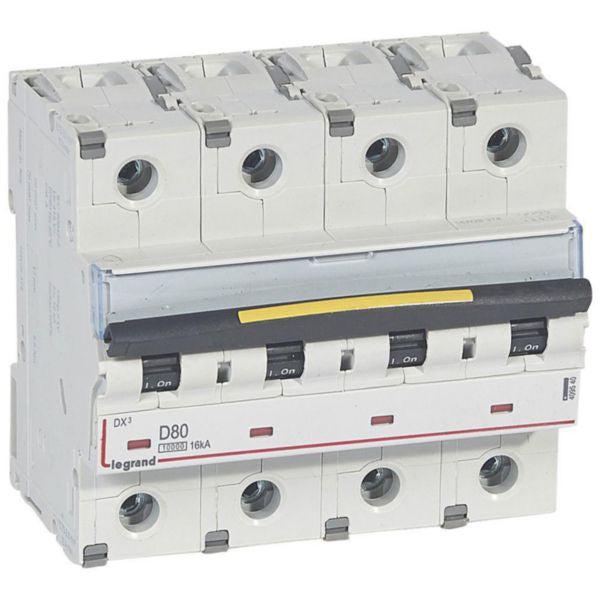

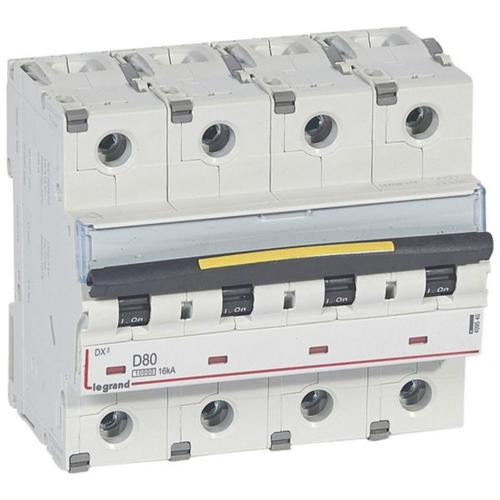

The Legrand DX³ MCB 409540 is a four-pole modular thermal-magnetic circuit breaker designed for comprehensive control, protection, and isolation of electrical circuits in residential and small commercial installations. This device delivers exceptional 80A rated current performance with a D-curve release characteristic at 400V~, providing reliable short-circuit protection with a 16kA breaking capacity according to IEC 60947-2 standards and 10kA breaking capacity per IEC 60898-1 for household installations. The circuit breaker features IP20 finger-safe screwed terminals that prevent accidental contact with live parts, making it safe for professional and semi-professional environments.
This advanced circuit breaker incorporates a thermal-magnetic tripping mechanism that offers superior protection against overloads and short circuits with a tripping threshold between 800A and 1120A (D curve between 10In and 14In). The device is compatible with the complete DX³ product range, including RCD add-on modules, earth leakage modules, and various Legrand accessories, enabling flexible system configurations. With a built-in label holder for circuit identification, red/green mechanical status indicator, and support for both copper and aluminum cables (with appropriate terminal accessories), this breaker provides comprehensive electrical protection.
The DX³ MCB meets stringent environmental standards, being halogen-free and designed through an environmentally conscious manufacturing process. It operates reliably across ambient temperatures from -25°C to 70°C, features a pollution degree rating of 2, and includes impact strength rating of IK02. The device measures 70.8mm width, 94.8mm height, and 77.8mm depth, occupying 6 modular spacings on DIN rails. With its carbon footprint of 6.132 kg CO₂eq during the manufacturing phase and compliance with RoHS and REACH regulations, this circuit breaker represents a sustainable choice for modern electrical installations.
Key Features
- Four-pole modular thermal-magnetic circuit breaker with 80A rated current and D-curve release characteristic
- 16kA breaking capacity at 400V per IEC 60947-2 and 10kA per IEC 60898-1 for household installations
- IP20 finger-safe screwed terminals preventing accidental contact with live parts
- Compatible with complete DX³ product range including RCD modules, earth leakage modules, and accessories
- Built-in label holder with red/green mechanical status indicator for circuit identification and monitoring
- Supports both copper and aluminum cables with appropriate terminal accessories
- Halogen-free design with environmentally conscious manufacturing process
- Operates reliably across -25°C to 70°C ambient temperature range
- Tripping threshold between 800A and 1120A for enhanced short-circuit protection
- DIN rail mounting with 6 modular spacing width for flexible installation
Technical Specifications
| Specification |
Value |
| Product Type | Four-Pole Modular Circuit Breaker |
| Manufacturer | Legrand |
| Brand | DX³ |
| Reference Number | 409540 |
| EAN Code | 3245064095402 |
| Rated Current | 80 A |
| Number of Poles | 4 |
| Release Characteristic | D-Curve |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity (IEC 60898-1) | 10 kA at 400V |
| Breaking Capacity (IEC 60947-2 at 230V) | 32 kA |
| Breaking Capacity (IEC 60947-2 at 400V) | 16 kA |
| Tripping Threshold | 800A to 1120A (D curve between 10In and 14In) |
| Degree of Protection | IP20 (Finger-safe) |
| Connection Type | Screwed Terminal |
| Connectable Conductor Cross Section (Multi-wired) | 6-50 mm² |
| Connectable Conductor Cross Section (Solid-core) | 6-70 mm² |
| Frequency Range | 50-60 Hz |
| Ambient Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 70°C |
| Pollution Degree | 2 |
| Impact Strength Rating | IK02 |
| Width | 70.8 mm |
| Height | 94.8 mm |
| Depth | 77.8 mm |
| Built-in Depth | 47 mm |
| Modular Spacing Width | 6 |
| Mounting Method | DIN Rail |
| Flush-mounted Installation | Yes |
| Concurrent Switching of Neutral Conductor | Yes |
| Electric Supply Direction | Top or Bottom |
| Additional Equipment Possible | Yes (RCD modules, earth leakage modules, accessories) |
| Color | Grey |
| RAL Number | 7035 |
| Halogen Free | Yes |
| Label Space/Information Surface | Yes |
| Mechanical Indicator | Red/Green Status Display |
| Carbon Footprint (Manufacturing Phase) | 6.132 kg CO₂eq |
| Compliance Standards | IEC 60898-1, IEC 60947-2, IEC/EN 60529, RoHS, REACH |
