Description

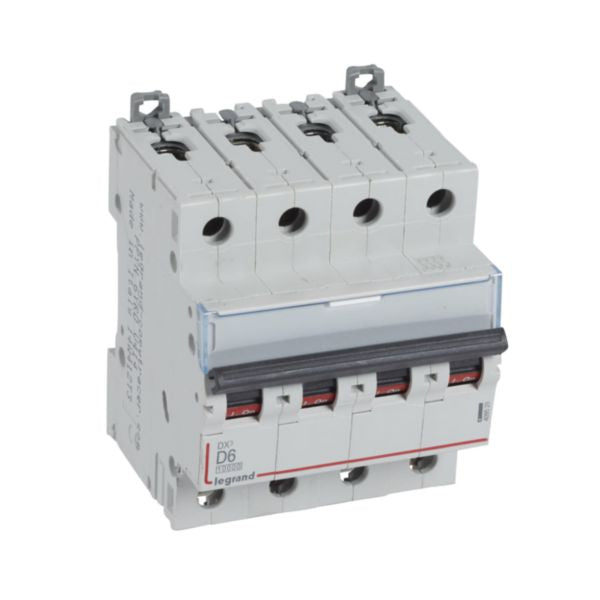

Shop Legrand DX3 MCB 4 Pole 6A D-Curve Circuit Breaker | 409529 In Iraq Best Prices

Thermal-magnetic 4-pole circuit breaker with 6A rating, D-curve characteristic, 10kA breaking capacity at 400V, IP20 protection, and DIN rail mounting for reliable electrical installation protection.

The Legrand DX3 MCB 10000A is a thermal-magnetic circuit breaker designed to provide reliable protection for wiring installations against overloads and short circuits. With a 4-pole configuration and 6A rated current, this device features a D-curve release characteristic and 10kA breaking capacity at 400V, making it suitable for residential and small commercial applications. The breaker is equipped with IP20 finger-safe protection and mounts securely on DIN rails, ensuring safe installation in electrical distribution panels. This circuit breaker combines advanced safety features with practical installation benefits. It can be supplied through copper cables, prong busbars (top or bottom side), fork busbars (bottom side), or Legrand HX3 plug busbars (top side). The device includes a label holder for clear circuit identification and ON/OFF indication printed on the handle with red and green backgrounds for easy status identification. The built-in depth of 44mm and modular width of 70.8mm make it compatible with standard DIN rail installations. The DX3 MCB meets international standards including IEC 60898-1 for household installations and IEC/EN 60529 for protection against solid bodies larger than 12.5mm. It is halogen-free and designed with environmental consciousness. The product is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, providing flexibility for system expansion and customization.

Key Features

Thermal-magnetic protection against overloads and short circuits with D-curve release characteristic
4-pole configuration with 6A rated current and 10kA breaking capacity at 400V
IP20 finger-safe protection compliant with IEC/EN 60529 standard
Multiple supply options including copper cables, prong busbars, fork busbars, and Legrand HX3 plug busbars
DIN rail mounting with two independent clamps allowing removal without affecting other devices
Clear circuit identification with label holder and color-coded ON/OFF indication
Compatible with Legrand DX3 auxiliaries and RCD add-on modules for system expansion
Halogen-free construction designed with environmental consciousness
Operates at 50-60 Hz frequency with rated insulation voltage of 500V
Wide ambient operating temperature range from -25°C to +70°C

Technical Specifications

Specification	Value
Product Type	Thermal-Magnetic Circuit Breaker (MCB)
Manufacturer	Legrand
Model Series	DX3
Reference Number	409529
EAN Code	3414970434579
Number of Poles	4 poles (4P)
Rated Current	6 Amperes (A)
Release Characteristic	D-curve (10 In to 14 In)
Breaking Capacity at 230V	16 kA according to IEC 60898
Breaking Capacity at 400V	10 kA according to IEC 60898
Short-Circuit Breaking Capacity Icu at 230V	32 kA according to IEC 60947-2
Short-Circuit Breaking Capacity Icu at 400V	16 kA according to IEC 60947-2
Rated Voltage	400 Volts AC
Rated Insulation Voltage	500 Volts (Ui)
Rated Impulse Withstand Voltage	4 kV (Uimp)
Frequency	50-60 Hz
Degree of Protection	IP20 (Finger-safe)
Degree of Impact Strength	IK02
Pollution Degree	2
Width (in modular spacings)	4 modules
Width	70.8 mm
Height	94.8 mm
Depth (Built-in)	44 mm
Total Depth	77.8 mm
Mounting Method	DIN Rail (35 mm)
Connection Type	Screwed Terminal
Connectable Conductor Cross Section (Solid-core)	1.5-35 mm²
Connectable Conductor Cross Section (Multi-wired)	1.5-25 mm²
Supply Direction	Top or Bottom
Ambient Temperature Operating Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Colour	Grey (RAL 7035)
Halogen Free	Yes
Flush-mounted Installation	Yes
Concurrently Switching Neutral Conductor	Yes
Additional Equipment Possible	Yes
Label Space/Information Surface	Yes
Explosion-proof	No
Carbon Footprint (Manufacturing Phase)	3.125 kg CO₂ eq.
Compliance Standards	IEC 60898-1, IEC 60947-2, IEC/EN 60529, RoHS, REACH

Order Legrand DX3 MCB 4 Pole 6A D-Curve Circuit Breaker | 409529 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
