Shop Legrand DX3 MCB 4 Pole 63A Curve D Circuit Breaker | 409852 In Iraq Best Prices
Premium four-pole modular circuit breaker with 63A D-curve rating, 25kA breaking capacity, IP20 finger-safe terminals, and full DX3 compatibility for reliable electrical circuit protection.

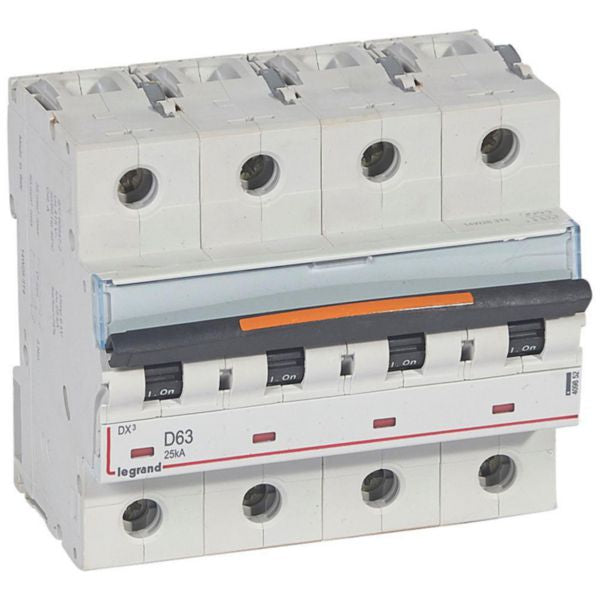

The Legrand DX³ MCB is a four-pole modular thermal-magnetic circuit breaker designed for comprehensive control, protection, and isolation of electrical circuits in residential and small commercial applications. This robust device delivers a 25kA breaking capacity at 400V~ and features a D-curve tripping characteristic with a rated current of 63A, making it ideal for circuits requiring moderate overload protection. The breaker incorporates IP20 finger-safe terminals that protect against solid bodies larger than 12.5mm, ensuring enhanced safety in installation environments.
This circuit breaker is engineered with advanced thermal-magnetic technology that provides reliable short-circuit protection with a tripping threshold between 630A and 882A (D curve between 10 In and 14 In). The DX³ breaker is fully compatible with Legrand DX3 auxiliary modules, RCD add-on modules, and comprehensive accessories, allowing for flexible system expansion and customization. It features a red/green mechanical indicator that clearly displays the open or closed status of contacts, and includes a convenient label holder for circuit identification.
The device is constructed with environmentally conscious design principles and complies with substance-restriction requirements. It can be supplied by copper cable from either the top or bottom, and features screwed terminals suitable for both solid-core (1.5-50 mm²) and multi-wired (1.5-35 mm²) conductors. With a built-in depth of 47mm and width of 6 modular spacings, it integrates seamlessly into DIN rail-mounted distribution panels. The breaker operates reliably across a wide ambient temperature range of -25 to 70°C and includes halogen-free construction for enhanced environmental performance.
Key Features
- 25kA breaking capacity at 400V with D-curve thermal-magnetic protection for reliable short-circuit defense
- Four-pole design with 63A rated current for comprehensive electrical circuit control and isolation
- IP20 finger-safe terminals protecting against solid bodies larger than 12.5mm per IEC/EN 60529
- Red/green mechanical indicator displaying clear open/closed contact status for easy verification
- Full compatibility with Legrand DX3 auxiliary modules, RCD add-on modules, and comprehensive accessories
- Flexible supply options from top or bottom with copper cable and screwed terminals for 1.5-50mm² solid-core or 1.5-35mm² multi-wired conductors
- DIN rail mounting with 6 modular spacing width and 47mm built-in depth for seamless panel integration
- Halogen-free construction with environmentally conscious design and substance-restriction compliance
- Wide operating temperature range from -25 to 70°C with storage capability from -40 to 70°C
- Convenient label holder for clear circuit identification and convenient management
Technical Specifications
| Specification |
Value |
| Product Type | Four-Pole Modular Thermal-Magnetic Circuit Breaker |
| Rated Current | 63 Amperes |
| Release Characteristic | D Curve (10 In to 14 In tripping threshold) |
| Breaking Capacity at 400V | 25 kA (Icu) |
| Breaking Capacity at 230V | 50 kA (Icu) |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 6 kV |
| Frequency Range | 50-60 Hz |
| Number of Poles | 4 poles (total and protected) |
| Degree of Protection | IP20 (Finger-safe terminals) |
| Degree of Impact Strength | IK02 |
| Built-in Depth | 47 mm |
| Width in Modular Spacings | 6 spacings |
| Total Width | 106.8 mm |
| Height | 127.5 mm |
| Total Depth | 79.2 mm |
| Connectable Conductor Cross Section (Solid-core) | 1.5-50 mm² |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-35 mm² |
| Connection Type | Screwed terminal with top or bottom cable supply |
| Mounting Method | DIN rail mounting |
| Ambient Temperature Operating Range | -25 to 70°C |
| Storage Temperature Range | -40 to 70°C |
| Nominal Voltage Range | 360-440 V |
| Pollution Degree | 3 |
| Concurrently Switching Neutral Conductor | Yes |
| Additional Equipment Possible | Yes (DX3 auxiliaries and RCD add-on modules) |
| Colour | Grey (RAL 7035) |
| Halogen Free | Yes |
| Carbon Footprint (Manufacturing Phase) | 6.991 kg CO₂ eq. |
| Product Reference | 409852 |
| EAN Code | 3245064098526 |
| Flush-mounted Installation | Yes |
| Explosion-proof | No |
| Label Space/Information Surface | Yes |
| Terminal Marking Indication | No |
