Shop Legrand DX3 MCB 4 Pole 63A Curve C Circuit Breaker | 410040 In Iraq Best Prices
Premium 4-pole modular circuit breaker with 63A capacity, 36kA breaking capacity at 400V, C-curve protection, IP20 finger-safe terminals, and full DX3 auxiliary compatibility for reliable electrical circuit protection.

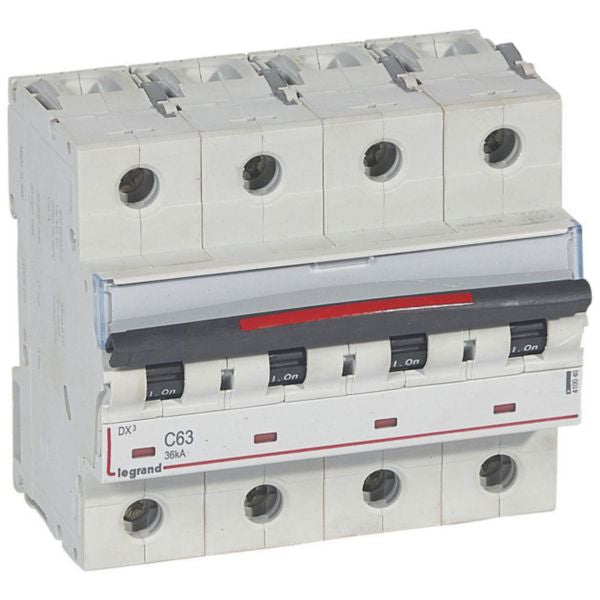

The Legrand DX3 MCB 4 Pole 63A Curve C is a premium modular thermal-magnetic circuit breaker designed for comprehensive control, protection, and isolation of electrical circuits in residential and small commercial applications. This high-performance device delivers an impressive 36kA breaking capacity at 400V AC, making it suitable for demanding electrical environments. The circuit breaker features a C-curve tripping characteristic with a tripping threshold between 315A and 630A, providing reliable protection against short circuits while minimizing nuisance trips during normal operation.
Built with advanced safety features, this four-pole circuit breaker incorporates IP20 finger-safe terminals that comply with IEC/EN 60529 standards, ensuring protection against solid bodies larger than 12.5mm. The device is fully compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories, allowing for flexible system expansion and customization. With a rated voltage of 400V and insulation voltage of 500V, it handles both single-phase and three-phase systems with neutral conductor switching capability. The mechanical red/green indicator clearly displays the status of contacts, while the integrated label holder enables convenient circuit identification.
The DX3 circuit breaker is engineered with environmentally conscious design principles and complies with substance-restriction requirements. It features a compact depth of 47mm and occupies 6 modular spacings on DIN rail, making it ideal for space-constrained installations. The device operates reliably across a wide ambient temperature range from -25°C to 70°C and accepts both solid-core (1.5-50mm²) and multi-wired (1.5-35mm²) conductors. Whether supplied from top or bottom, this versatile circuit breaker provides professional-grade electrical protection with Legrand's trusted quality and reliability.
Key Features
- 36kA breaking capacity at 400V AC with C-curve tripping characteristic between 315A-630A
- IP20 finger-safe terminals protecting against solid bodies larger than 12.5mm per IEC/EN 60529
- Four-pole modular thermal-magnetic design for comprehensive circuit protection and isolation
- Red/green mechanical indicator displaying open/closed contact status with integrated label holder
- Full compatibility with Legrand DX3 auxiliaries, RCD add-on modules, and system accessories
- Compact 47mm depth design occupying 6 modular spacings on standard DIN rail
- Accepts solid-core (1.5-50mm²) and multi-wired (1.5-35mm²) conductors with top/bottom supply
- Wide ambient temperature operation range from -25°C to 70°C with halogen-free construction
- Environmentally conscious design complying with substance-restriction requirements
- Rated insulation voltage of 500V with 6kV impulse withstand voltage for superior protection
Technical Specifications
| Specification |
Value |
| Product Type | Modular Thermal-Magnetic Circuit Breaker |
| Number of Poles | 4 poles (4 protected poles) |
| Rated Current | 63 Amperes |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 6 kV |
| Breaking Capacity at 230V | 72 kA according to IEC 60947-2 |
| Breaking Capacity at 400V | 36 kA according to IEC 60947-2 |
| Release Characteristic | C-curve (5In to 10In tripping range) |
| Short-Circuit Tripping Threshold | 315A to 630A |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (Finger-safe terminals) |
| Impact Strength Rating | IK02 |
| Built-in Depth | 47 mm |
| Width in Modular Spacings | 6 spacings |
| Physical Dimensions | Width: 106.8mm, Height: 127.5mm, Depth: 79.2mm |
| Ambient Temperature Range | -25°C to +70°C (operating) |
| Storage Temperature Range | -40°C to +70°C |
| Connectable Conductor Cross-Section (Solid-Core) | 1.5-50 mm² |
| Connectable Conductor Cross-Section (Multi-Wired) | 1.5-35 mm² |
| Connection Type | Screwed terminal with top or bottom supply |
| Neutral Conductor Switching | Yes (Concurrently switching) |
| Mounting Method | DIN rail |
| Flush-Mounted Installation | Yes |
| Pollution Degree | 3 |
| Color | Grey (RAL 7035) |
| Halogen-Free | Yes |
| Additional Equipment | Compatible with DX3 auxiliaries and RCD add-on modules |
| Nominal Voltage Range | 360-440V |
| Explosion-Proof | No |
| Carbon Footprint (Manufacturing) | 6.993 kg CO₂ eq. |
| Reference Number | 410040 |
| EAN Code | 3245064100403 |
