Shop Legrand DX3 MCB 4 Pole 63A C Curve 10kA Circuit Breaker | 409342 In Iraq Best Prices
Premium 4-pole thermal magnetic circuit-breaker with 63A C curve, 10kA breaking capacity, IP20 protection, and DIN rail installation for reliable electrical circuit protection

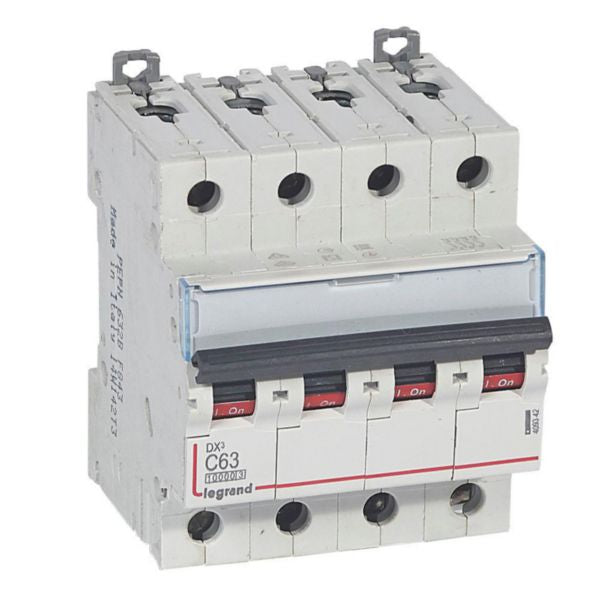

The Legrand DX3 MCB 10000A is a premium thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This 4-pole device features a 63A rated current with C curve release characteristic and 10kA breaking capacity at 400V, providing reliable protection for residential and small commercial applications. The MCB is IP20 protected against solid bodies larger than 12.5mm, ensuring safe control and isolation of electrical circuits. Its compact design allows installation on DIN rail with independent removal capability, while the label holder enables clear circuit identification.
This circuit-breaker complies with IEC 60898-1 standard for household installations and features current limiting class 3 for maximum energy limitation. It can be supplied via copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar, offering flexible installation options. The device is equipped with concurrently switching neutral conductor capability and supports additional Legrand DX3 auxiliaries, RCD add-on modules, and accessories for enhanced functionality. With its halogen-free construction and environmentally conscious design, this MCB represents a commitment to safety and sustainability.
The DX3 MCB operates reliably across a wide temperature range from -25°C to +70°C and supports both solid-core conductors (1.5-35mm²) and multi-wired conductors (1.5-25mm²). Its color-coded handle provides easy ON/OFF identification with red and green backgrounds respectively, while the IP20 protection degree ensures protection against accidental contact. This product is fully compliant with RoHS Directive and REACH regulations, making it an ideal choice for modern electrical installations requiring both performance and environmental responsibility.
Key Features
- Breaking capacity 10kA at 400V according to IEC 60898-1 standard with C curve tripping threshold between 315A-630A
- IP20 protection against solid bodies larger than 12.5mm with current limiting class 3 for maximum energy limitation
- 4-pole design with concurrently switching neutral conductor for complete circuit protection and isolation
- Flexible supply options via copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar
- DIN rail mounted with independent removal capability and label holder for clear circuit identification
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and comprehensive accessory range
- Halogen-free construction with environmentally conscious design and RoHS/REACH compliance
- Color-coded handle with ON/OFF indication for easy status identification
- Wide operating temperature range from -25°C to +70°C with reliable performance
- Supports both solid-core (1.5-35mm²) and multi-wired (1.5-25mm²) conductor connections
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Brand | Legrand |
| Series | DX3 |
| Reference Number | 409342 |
| EAN Code | 3245064093422 |
| Number of Poles | 4 poles |
| Rated Current | 63 A |
| Release Characteristic | C curve (5-10 In) |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 400V | 10 kA (Icn according to EN 60898) |
| Breaking Capacity at 230V | 16 kA (Icn according to EN 60898) |
| Ultimate Breaking Capacity at 400V | 16 kA (Icu according to IEC 60947-2) |
| Ultimate Breaking Capacity at 230V | 32 kA (Icu according to IEC 60947-2) |
| Current Limiting Class | Class 3 |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK02 |
| Pollution Degree | 2 |
| Width in Modular Spacings | 4 modules |
| Width | 70.8 mm |
| Height | 94.8 mm |
| Depth | 77.8 mm |
| Built-in Depth | 44 mm |
| Connectable Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Connection Type | Screwed terminal |
| Operating Temperature Range | -25 to +70 °C |
| Storage Temperature Range | -40 to +70 °C |
| Mounting Method | DIN rail |
| Electric Supply Direction | Top or bottom |
| Flush-mounted Installation | Yes |
| Concurrently Switching Neutral Conductor | Yes |
| Additional Equipment Possible | Yes |
| Color | Grey |
| RAL Number | 7035 |
| Halogen Free | Yes |
| Label Space/Information Surface | Yes |
| Explosion-proof | No |
| Carbon Footprint (Manufacturing Phase) | 3.866 kg CO2 eq. |
| Compliance Standards | IEC 60898-1, IEC 60947-2, IEC/EN 60529, RoHS Directive, REACH Regulation |
