Description

Shop Legrand DX3 MCB 4 Pole 16A Circuit Breaker D-Curve | 409533 In Iraq Best Prices

Advanced 4-pole thermal magnetic circuit breaker with 16A D-curve and 10000A breaking capacity, designed for reliable protection of residential and commercial wiring installations with DX³ auxiliary compatibility.

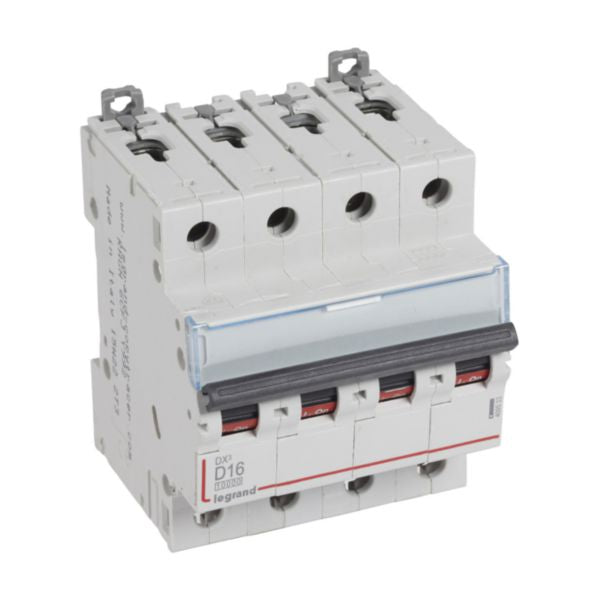

The Legrand DX3 MCB 10000A 4 Pole 16A Curve D is a thermal magnetic circuit-breaker specifically designed to protect wiring installations against overloads and short-circuits. With its 16A D-curve release characteristic and impressive 10000A breaking capacity at 400V~, this device delivers reliable and consistent protection for residential and small commercial applications. The 4-pole design ensures comprehensive circuit protection across all phases, while its compatibility with DX³ auxiliaries provides flexible control and monitoring options. This circuit breaker features advanced safety specifications including a rated impulse withstand voltage of 4 kV and dual breaking capacities (16 kA at 230V and 10 kA at 400V according to IEC 60947-2 standards). The device is protected against solid bodies larger than 12.5mm with IP20 rating, ensuring safe operation in standard environments. Its modular design allows installation on standard DIN rails with independent removal capability, making maintenance and replacement straightforward even when the busbar system remains energized. The MCB incorporates practical features such as a label holder for clear circuit identification and intuitive on/off indication with color-coded handles (red for off, green for on). The device supports multiple connection methods including copper cables, prong busbars, fork busbars, and Legrand HX3 plug busbars. With halogen-free construction and environmentally conscious design, this circuit breaker meets modern sustainability requirements while delivering superior electrical protection.

Key Features

4-pole thermal magnetic protection with 16A D-curve release characteristic for precise circuit control
10000A breaking capacity at 400V~ ensuring superior short-circuit protection per IEC 60898-1 standard
IP20 fingerproof protection against solid bodies larger than 12.5mm for enhanced safety
DIN rail mounting with independent removal capability allowing maintenance without de-energizing busbar system
Compatible with Legrand DX³ auxiliaries, RCD add-on modules and comprehensive accessory range
Color-coded handle indication (red/green) for immediate on/off status identification
Integrated label holder for clear circuit identification and organization
Multiple connection options including copper cables, prong busbars, fork busbars and HX3 plug busbars
Halogen-free environmentally conscious design meeting modern sustainability standards
Dual breaking capacity ratings (16 kA at 230V, 10 kA at 400V) per IEC 60947-2 specification

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit Breaker (MCB)
Number of Poles	4 poles (3 phase + neutral)
Rated Current	16 Amperes
Release Characteristic	D-curve (10-14 x In)
Rated Voltage	400 V AC
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity at 230V	16 kA (Icn) / 32 kA (Icu)
Breaking Capacity at 400V	10 kA (Icn) / 16 kA (Icu)
Short-Circuit Trip Threshold	160A to 224A (D-curve)
Frequency	50-60 Hz
Degree of Protection	IP20 (fingerproof)
Degree of Impact Strength	IK02
Pollution Degree	2
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Connectable Conductor Cross-Section (Multi-wired)	1.5-25 mm²
Connectable Conductor Cross-Section (Solid-core)	1.5-35 mm²
Connection Type	Screwed terminal
Mounting Method	DIN rail (top and bottom clamps)
Module Width	4 modular spacings
Width Dimension	70.8 mm
Height Dimension	94.8 mm
Depth Dimension	77.8 mm (built-in depth: 44 mm)
Color	Grey (RAL 7035)
Halogen Content	Halogen-free
Neutral Conductor Switching	Concurrently switching neutral conductor
Flush-mounted Installation	Yes
Additional Equipment Possible	Yes (RCD modules, auxiliaries)
Supply Direction	By top or bottom
Reference Number	409533
EAN Code	3414970434616
Product Series	DX³
Manufacturer	Legrand
Carbon Footprint (Manufacturing)	3.122 kg CO₂ eq.
Standards Compliance	IEC 60898-1, IEC 60947-2, IEC/EN 60529

Order Legrand DX3 MCB 4 Pole 16A Circuit Breaker D-Curve | 409533 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
