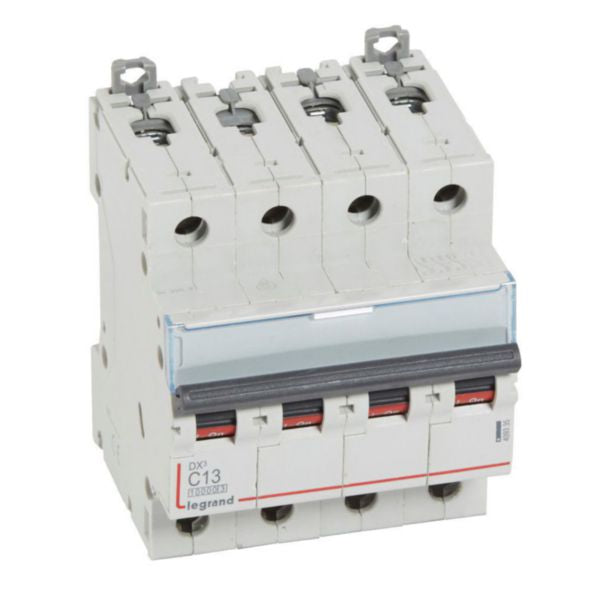

Shop Legrand DX3 MCB 4 Pole 13A Curve C Circuit Breaker | 409335 In Iraq Best Prices
Legrand DX3 4-pole thermal magnetic circuit-breaker with 13A C-curve protection, 10kA breaking capacity, IP20 finger-safe design, and advanced energy limitation for reliable wiring installation protection.
The Legrand DX3 MCB 10000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This 4-pole device offers reliable 13A C-curve protection at 400V~ with exceptional 10kA/16kA breaking capacity. The IP20 finger-safe design ensures protection against solid bodies larger than 12.5mm, making it ideal for residential and small commercial applications. The device features independent removal capability with DIN rail clamps on both top and bottom sides, allowing convenient maintenance without disturbing the prong busbar supplying the row.
This MCB incorporates advanced energy limitation technology (class 3 according to IEC 60898-1 standard) and can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories for enhanced functionality. The label holder allows clear circuit identification with ON/OFF indication printed on the handle in red and green backgrounds. The device is halogen-free and designed with environmental consciousness in mind. Compatible with copper cables, prong busbars, fork busbars, and Legrand HX3 plug busbars for flexible installation options.
With a breaking capacity of 10000A according to IEC 60898-1 standard, the DX3 MCB provides a tripping threshold in case of short-circuit between 65A and 130A (C curve between 5 In and 10 In). The device operates across a frequency range of 50-60 Hz and maintains performance in ambient temperatures from -25°C to 70°C. Installation should be performed by qualified electricians in compliance with local installation rules to ensure optimal safety and performance.
Key Features
- 4-pole thermal magnetic protection with 13A C-curve rating for reliable overload and short-circuit protection
- 10kA/16kA breaking capacity according to IEC 60898-1 standard with advanced energy limitation class 3
- IP20 finger-safe design protecting against solid bodies larger than 12.5mm
- Independent removal capability with DIN rail clamps on top and bottom for convenient maintenance
- Compatible with multiple supply options including copper cables, prong busbars, fork busbars, and Legrand HX3 plug busbars
- Clear circuit identification with label holder and ON/OFF indication in red and green backgrounds
- Halogen-free and environmentally conscious design meeting substance-restriction requirements
- Can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories
- Operates across 50-60 Hz frequency range with ambient temperature capability from -25°C to 70°C
- Rated voltage 400V with impulse withstand voltage of 4kV for enhanced protection
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit-Breaker (MCB) |
| Number of Poles | 4 poles (total and protected) |
| Rated Current | 13 A |
| Release Characteristic | C curve (5 In to 10 In) |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 230V | 16 kA (Icn), 32 kA (Icu) |
| Breaking Capacity at 400V | 10 kA (Icn), 16 kA (Icu) |
| Current Limiting Class | Class 3 |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (Finger-safe) |
| Degree of Impact Strength | IK02 |
| Width in Modular Spacings | 4 modules |
| Physical Dimensions | Width: 70.8 mm, Height: 94.8 mm, Depth: 77.8 mm, Built-in depth: 44 mm |
| Connectable Conductor Cross Section | Multi-wired: 1.5-25 mm², Solid-core: 1.5-35 mm² |
| Connection Type | Screwed terminal |
| Mounting Method | DIN rail with top and bottom clamps |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Pollution Degree | 2 |
| Supply Direction | By top or bottom |
| Colour | Grey (RAL 7035) |
| Halogen Free | Yes |
| Flush-mounted Installation | Yes |
| Concurrent Neutral Switching | Yes |
| Additional Equipment Possible | Yes |
| Reference Number | 409335 |
| EAN Code | 3245064093354 |
| Carbon Footprint (Manufacturing) | 3.666 kg CO2 eq. |
