Description

Shop Legrand DX3 MCB 4 Pole 10A Circuit Breaker C Curve | 409334 In Iraq Best Prices

Professional-grade 4-pole thermal magnetic circuit breaker with 10A capacity, C-curve tripping, and 10kA breaking capacity. IP20 finger-safe protection with DIN rail mounting for residential and commercial electrical panel installations.

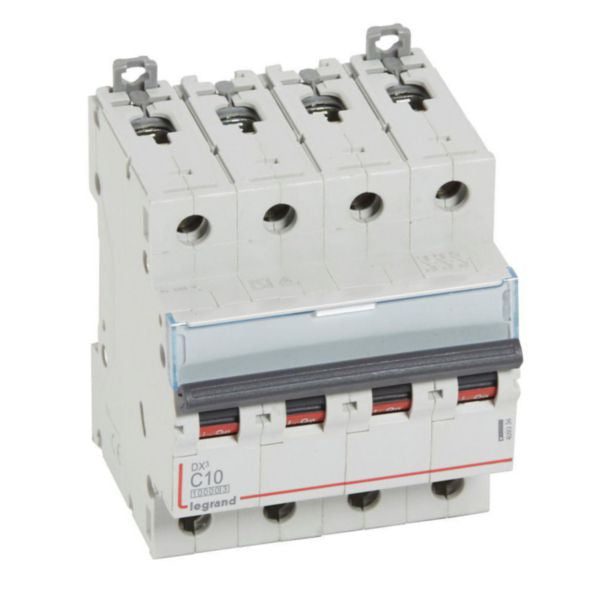

The Legrand DX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This 4-pole device features a 10A rated current with C-curve release characteristic and offers exceptional 10kA breaking capacity at 400V AC. The breaker ensures comprehensive control and isolation of electrical circuits while maintaining IP20 finger-safe protection standards, making it ideal for residential and small commercial panel applications. This circuit breaker incorporates advanced safety features including energy limitation class 3 according to IEC 60898-1 standard, providing maximum protection for connected equipment. The device is equipped with two DIN rail clamps enabling independent removal while maintaining power supply continuity. It features a convenient label holder for circuit identification and clear ON/OFF indication on the handle with color-coded backgrounds (red for OFF, green for ON) for easy status recognition. The MCB DX3 supports multiple connection methods including copper cable, prong busbar, fork busbar, and Legrand HX3 plug busbar options. It can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, offering flexible system integration. Built with halogen-free materials and environmentally conscious manufacturing processes, this product complies with all substance-restriction requirements and international safety standards including IEC 60898-1 and IEC 60947-2.

Key Features

4-pole configuration with 10A rated current and C-curve release characteristic for optimal circuit protection
10kA breaking capacity at 400V AC with current limiting class 3 per IEC 60898-1 standard
IP20 finger-safe protection with secure DIN rail mounting using dual clamps
Multiple connection options: copper cable, prong busbar, fork busbar, and Legrand HX3 plug busbar
Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and comprehensive accessories
Clear ON/OFF indication with color-coded handle (red/green) and convenient label holder for circuit identification
Halogen-free construction with environmentally conscious manufacturing process
Rated impulse withstand voltage of 4kV with 500V insulation voltage rating
Operating temperature range -25°C to +70°C with storage capability from -40°C to +70°C
Compliant with IEC 60898-1 and IEC 60947-2 international safety standards

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Number of Poles	4 poles (4P)
Rated Current	10 Amperes (A)
Release Characteristic	C curve (5In to 10In)
Breaking Capacity at 400V	10,000 A (10 kA) per IEC 60898-1
Breaking Capacity at 230V	16 kA per IEC 60898-1
Ultimate Breaking Capacity at 400V	16 kA per IEC 60947-2
Rated Voltage	400 V AC
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Frequency Range	50-60 Hz
Current Limiting Class	Class 3 (Maximum energy limitation)
Degree of Protection	IP20 (Finger-safe)
Impact Strength Rating	IK02
Width in Modular Spacings	4 modules
Physical Dimensions - Width	70.8 mm
Physical Dimensions - Height	94.8 mm
Physical Dimensions - Depth	77.8 mm (built-in depth: 44 mm)
Mounting Method	DIN rail mounting with dual clamps
Connection Type	Screwed terminal
Connectable Conductor Cross Section (Multi-wired)	1.5-25 mm²
Connectable Conductor Cross Section (Solid-core)	1.5-35 mm²
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Pollution Degree	2
Color	Grey (RAL 7035)
Halogen Free	Yes
Neutral Conductor Switching	Concurrently switching
Additional Equipment Compatible	Yes (RCD modules, auxiliaries, accessories)
Flush-mounted Installation	Yes
Supply Direction	By top or bottom
Label Space	Yes
Product Reference	409334
EAN Code	3245064093347
Carbon Footprint (Manufacturing)	3.584 kg CO2 eq.

Order Legrand DX3 MCB 4 Pole 10A Circuit Breaker C Curve | 409334 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
