Shop Legrand DX3 MCB 4 Pole 100A Curve C Circuit Breaker | 409802 In Iraq Best Prices
Professional-grade 4-pole 100A circuit breaker with C curve characteristic, 25kA breaking capacity, fully visible breaking mechanism, and IP20 finger-safe terminals for residential and commercial electrical protection.

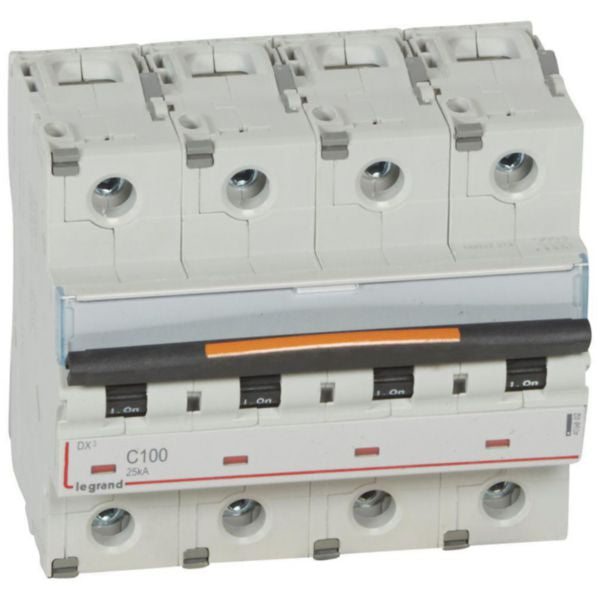

The Legrand DX³ MCB (Miniature Circuit Breaker) is a four-pole modular thermal-magnetic circuit breaker designed for control, protection, and isolation of electrical circuits. With a rated current of 100A and C curve characteristic, this device provides reliable circuit protection with a breaking capacity of 25kA at 400V. The breaker features fully visible breaking mechanism, allowing users to clearly see the status of contacts through the red/green mechanical indicator. This professional-grade component is engineered to meet IEC 60947-2 standards and offers IP20 finger-safe terminals, making it suitable for installation in residential and small commercial electrical panels.
Equipped with advanced safety features, the DX³ 100A breaker includes a label holder for clear circuit identification and concurrently switches the neutral conductor for enhanced safety. The device can be supplied by copper cable from either the top or bottom, providing installation flexibility. With a rated voltage of 400V and rated insulation voltage of 500V, this circuit breaker is designed for AC applications with frequencies between 50-60 Hz. The thermal-magnetic tripping mechanism ensures protection against both overload and short-circuit conditions, with the C curve providing a tripping threshold between 500A and 1000A (5 In to 10 In).
The Legrand DX³ 100A circuit breaker is fully compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories, allowing for system expansion and customization. Built with halogen-free materials and designed through an environmentally conscious process, this product complies with substance-restriction requirements. The breaker operates reliably in ambient temperatures ranging from -25°C to 70°C and can accommodate multi-wired conductors from 6-50mm² or solid-core conductors from 6-70mm². Its compact design with a built-in depth of 47mm and width of 106.8mm makes it ideal for space-constrained installations.
Key Features
- Four-pole thermal-magnetic circuit breaker with 100A rated current and C curve characteristic
- 25kA breaking capacity at 400V according to IEC 60947-2 standards
- Fully visible breaking mechanism with red/green mechanical indicator for clear status display
- IP20 finger-safe terminals for enhanced safety and protection against solid bodies larger than 12.5mm
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and system accessories
- Concurrently switches neutral conductor for improved circuit protection
- Flexible copper cable supply from top or bottom installation orientation
- Label holder for clear and convenient circuit identification
- Halogen-free construction designed through environmentally conscious process
- Operates reliably in ambient temperatures from -25°C to 70°C
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Brand | Legrand |
| Series | DX³ |
| Reference Number | 409802 |
| EAN Code | 3245064098021 |
| Number of Poles | 4 poles |
| Rated Current | 100 A |
| Trip Characteristic | C curve (500A - 1000A or 5 In - 10 In) |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 6 kV |
| Breaking Capacity at 230V | 50 kA |
| Breaking Capacity at 400V | 25 kA |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (finger-safe terminals) |
| Built-in Depth | 47 mm |
| Width | 106.8 mm |
| Height | 127.5 mm |
| Overall Depth | 79.2 mm |
| Width in Modular Spacings | 6 |
| Impact Strength Rating | IK02 |
| Colour | Grey (RAL 7035) |
| Connection Type | Screwed terminal with cable supply |
| Connectable Conductor Cross Section (Multi-wired) | 6-50 mm² |
| Connectable Conductor Cross Section (Solid-core) | 6-70 mm² |
| Mounting Method | DIN rail |
| Supply Direction | Top or bottom |
| Neutral Conductor Switching | Concurrently switching |
| Pollution Degree | 3 |
| Ambient Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Nominal Voltage Range | 360-440 V |
| Additional Equipment | Compatible with DX3 auxiliaries and RCD add-on modules |
| Halogen Free | Yes |
| Label Space | Yes |
| Carbon Footprint (Manufacturing) | 7.069 kg CO₂ eq. |
| Flush-mounted Installation | Yes |
| Explosion-proof | No |
| Terminal Marking Indication | No |
