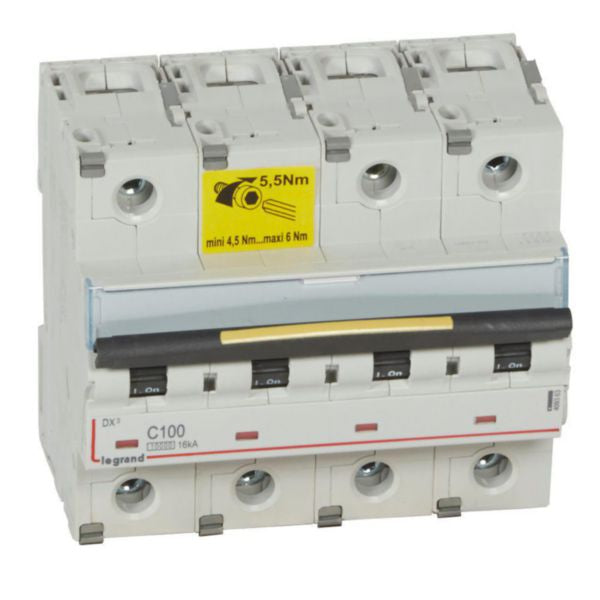

Shop Legrand DX3 MCB 4 Pole 100A Circuit Breaker C-Curve | 409363 In Iraq Best Prices
Professional 4-pole 100A C-curve circuit breaker with 10kA/16kA breaking capacity, IP20 finger-safe terminals, and advanced thermal-magnetic protection for reliable electrical circuit management.
The Legrand DX3 MCB (Miniature Circuit Breaker) is a professional-grade 4-pole modular thermal-magnetic circuit breaker designed for comprehensive control, protection, and isolation of electrical circuits in residential and small commercial applications. This robust device delivers 100A rated current protection with a C-curve release characteristic, offering 10kA breaking capacity according to IEC 60898-1 standard and 16kA according to IEC 60947-2 standard at 400V AC. The circuit breaker features IP20 finger-safe terminals that protect against solid bodies larger than 12.5mm, ensuring safe installation and operation in various environments.
Equipped with advanced safety features, the DX3 MCB incorporates a red/green mechanical indicator that clearly displays the contact status (open or closed), and includes a convenient label holder for easy circuit identification. The thermal-magnetic tripping mechanism activates between 500A and 1000A (5-10 times the rated current), providing reliable short-circuit protection. The device supports both top and bottom copper cable supply connections and can be installed on standard DIN rails with a 6-module spacing width. It is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, offering flexible system integration.
Designed with environmental consciousness, this circuit breaker complies with substance-restriction requirements and is halogen-free. Operating across a wide temperature range from -25°C to +70°C, the DX3 MCB maintains consistent performance in diverse climatic conditions. The 47mm built-in depth and compact 70.8mm width make it ideal for space-constrained installation environments. With a rated insulation voltage of 500V and impulse withstand voltage of 4kV, this professional-grade device meets all modern electrical safety standards and regulations.
Key Features
- Dual breaking capacity: 10kA per IEC 60898-1 and 16kA per IEC 60947-2 at 400V
- C-curve release characteristic with 5-10x rated current tripping threshold
- IP20 finger-safe terminals protecting against solid bodies larger than 12.5mm
- Red/green mechanical indicator displaying open/closed contact status
- Supports top or bottom copper cable supply with terminal accessories
- Compatible with Legrand DX3 auxiliaries and RCD add-on modules
- Halogen-free and environmentally conscious design
- Wide operating temperature range: -25°C to +70°C
- Standard DIN rail mounting with 6-module spacing
- Convenient label holder for circuit identification
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) - 4 Pole |
| Rated Current | 100A |
| Rated Voltage | 400V AC |
| Release Characteristic | C-Curve (5-10 In) |
| Breaking Capacity IEC 60898-1 | 10kA at 400V |
| Breaking Capacity IEC 60947-2 | 16kA at 400V, 32kA at 230V |
| Number of Poles | 4 poles (3 protected + neutral) |
| Rated Insulation Voltage | 500V |
| Impulse Withstand Voltage | 4kV |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (finger-safe) |
| Impact Strength Rating | IK02 |
| Pollution Degree | 2 |
| Built-in Depth | 47mm |
| Width | 70.8mm (6 module spacing) |
| Height | 94.8mm |
| Total Depth | 77.8mm |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Connectable Conductor Cross Section (Multi-wired) | 6-50mm² |
| Connectable Conductor Cross Section (Solid-core) | 6-70mm² |
| Connection Type | Screwed terminal |
| Supply Direction | Top or bottom |
| Mounting Method | DIN rail |
| Color | Grey (RAL 7035) |
| Halogen Free | Yes |
| Explosion-proof | No |
| Concurrent Neutral Switching | Yes |
| Additional Equipment Possible | Yes (auxiliaries and RCD modules) |
| Label Space | Yes |
| Carbon Footprint (Manufacturing) | 6.044 kg CO₂ eq. |
Order Legrand DX3 MCB 4 Pole 100A Circuit Breaker C-Curve | 409363 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
