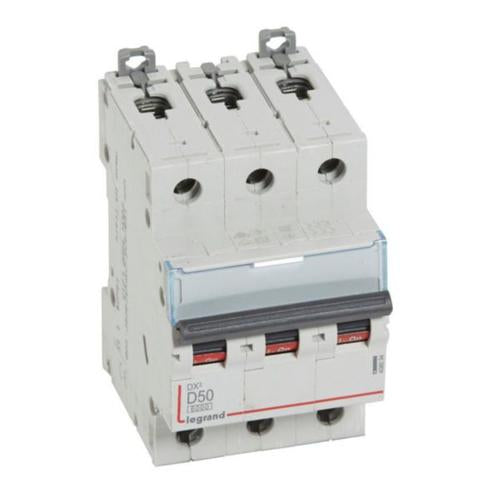

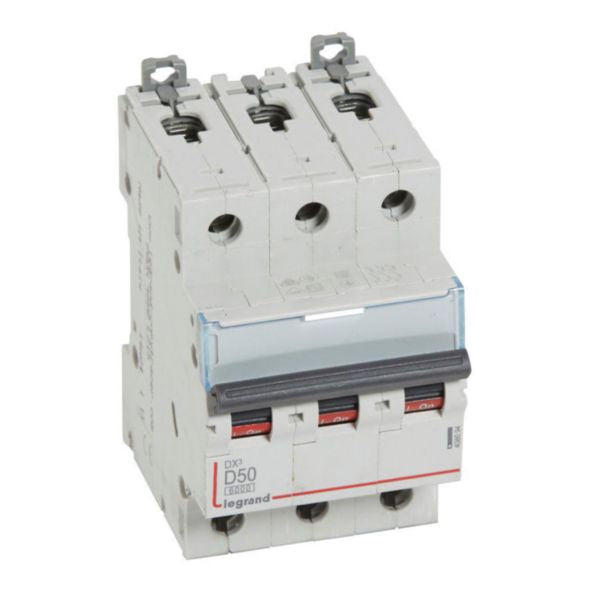

Legrand DX3 thermal magnetic circuit-breaker with 3-pole, 50A rating, D curve, 6000A breaking capacity, and IEC 60898-1 compliance for reliable protection and control of residential and commercial wiring installations.
The Legrand DX3 MCB 6000A is a thermal magnetic circuit-breaker specifically designed to protect wiring installations against overloads and short-circuits while providing control and isolation capabilities. With a 3-pole configuration, 50A rated current, D curve characteristic, and 400V~ rating, this device delivers a 6000A breaking capacity according to IEC 60898-1 standards. The circuit-breaker features advanced protection mechanisms including a tripping threshold between 500A and 700A for short-circuit conditions (D curve between 10 In and 14 In), making it ideal for residential and small commercial applications.
This MCB is engineered with multiple supply options including copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side). The device is protected against solid bodies larger than 12.5mm with IP20 rating according to IEC/EN 60529 standards. It can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, providing flexibility for complex electrical installations. The connection terminals support both multi-wired conductors (1.5-25 mm²) and solid-core conductors (1.5-35 mm²), accommodating diverse installation requirements.
The product features innovative design elements including two DIN rail clamps for independent removal while the busbar remains in place, and a convenient label holder for clear circuit identification. The handle includes on/off indication with red and green backgrounds for easy status identification. With halogen-free construction and environmentally conscious design, this circuit-breaker complies with substance-restriction requirements and RoHS directives, ensuring safe and sustainable electrical installations.
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard for household installations with short-circuit tripping between 500A-700A
- Multiple supply options including copper cable, prong busbar, fork busbar, and Legrand HX3 plug busbar compatibility
- IP20 fingerproof protection against solid bodies larger than 12.5mm per IEC/EN 60529 standards
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and comprehensive accessory range for flexible installations
- Dual DIN rail clamps allowing independent product removal while busbar remains in place
- Clear on/off indication with red and green handle backgrounds for easy status identification
- Supports multi-wired (1.5-25 mm²) and solid-core (1.5-35 mm²) conductor connections
- Halogen-free construction with environmentally conscious design and RoHS compliance
- Built-in label holder for convenient circuit identification and organization
- Operates across 50-60 Hz frequency range with -25 to 70°C ambient temperature capability
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit-Breaker (MCB) |
| Number of Poles | 3 poles (3P) |
| Rated Current | 50 Amperes (A) |
| Release Characteristic | D Curve (10-14 In) |
| Rated Voltage | 400V AC (~) |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity (Icn) at 400V | 6 kA (6000A) per IEC 60898-1 |
| Breaking Capacity (Icu) at 230V | 25 kA per IEC 60947-2 |
| Breaking Capacity (Icu) at 400V | 10 kA per IEC 60947-2 |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (Fingerproof) |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Connection Type | Screwed Terminal |
| Built-in Depth | 44 mm |
| Width | 53.1 mm |
| Height | 94.8 mm |
| Total Depth | 77.8 mm |
| Modular Width | 3 DIN module spacings |
| Impact Strength Rating | IK02 |
| Pollution Degree | 2 |
| Supply Direction | Top or Bottom |
| Mounting Method | DIN Rail |
| Color | Grey (RAL 7035) |
| Halogen Free | Yes |
| Additional Equipment | Yes - Compatible with DX3 auxiliaries and RCD modules |
| Flush-mounted Installation | Yes |
| Neutral Conductor Switching | No |
| Explosion-proof | No |
| Reference Number | 408094 |
| EAN Code | 3245064080941 |
| Carbon Footprint (Manufacturing) | 3.055 kg CO₂ eq. |
