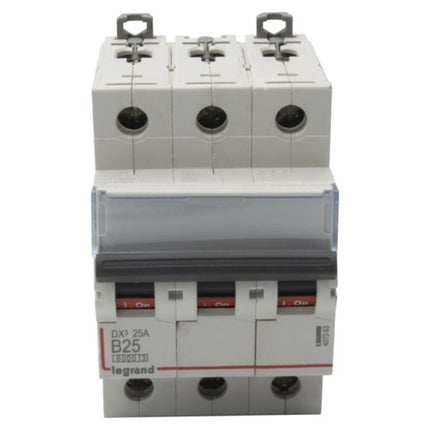

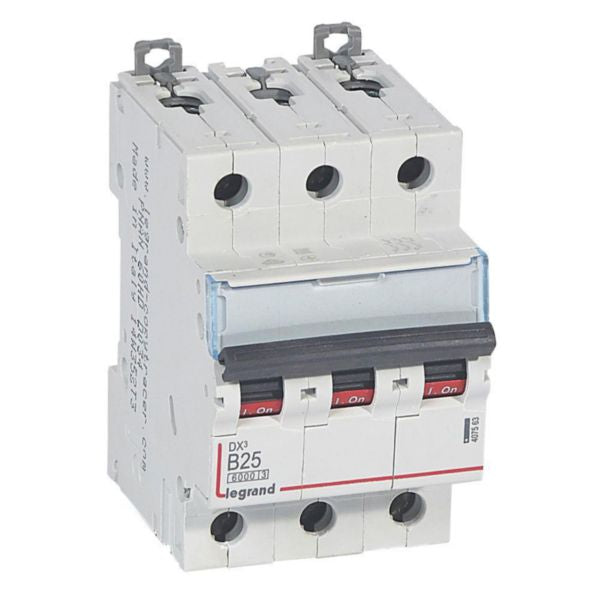

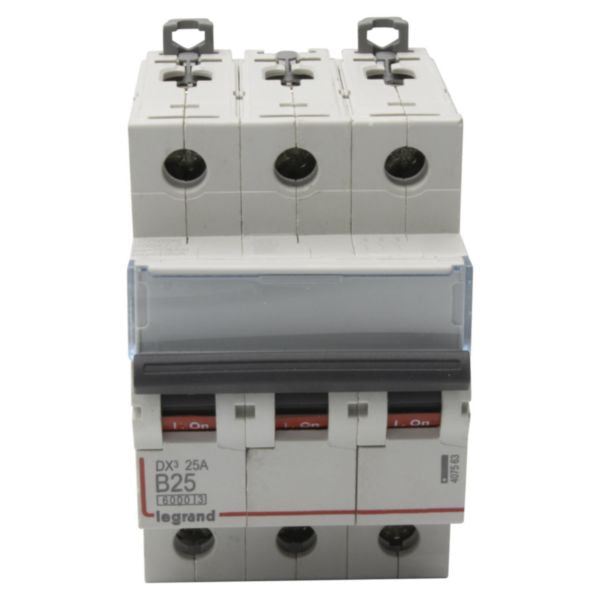

Shop Legrand DX3 MCB 3P 25A 6kA Circuit Breaker B-Curve | 407563 In Iraq Best Prices
Legrand DX3 thermal magnetic circuit-breaker, 3-pole 25A 400V, B-curve, 6kA breaking capacity, IP20 fingerproof, DIN rail mounted, ideal for residential and small commercial electrical protection
The Legrand DX3 MCB 407563 is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This 3-pole device delivers a rated current of 25A at 400V with a B-curve characteristic and exceptional 6kA/10kA breaking capacity according to IEC 60898-1 standards for household installations. The tripping threshold in case of short-circuit is precisely set between 75A and 125A (B curve between 3 In and 5 In), ensuring optimal protection for residential and small commercial electrical systems.
Featuring IP20 fingerproof design protection against solid bodies larger than 12.5mm, this circuit-breaker meets IEC/EN 60529 standards and provides maximum energy limitation (energy limitation class 3). The device offers flexible supply options including copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side) connections. With DIN rail mounting and independent removal capability, the MCB allows convenient installation and maintenance without requiring busbar disconnection.
The DX3 MCB incorporates advanced features including a label holder for circuit identification, on/off indication printed on the handle with red and green backgrounds, and compatibility with Legrand DX3 auxiliaries, RCD add-on modules, and accessories. Built with halogen-free materials in an environmentally conscious process, this circuit-breaker complies with substance-restriction requirements and represents modern electrical safety standards. The device operates reliably across ambient temperatures from -25°C to +70°C and supports connectable conductor cross-sections from 1.5mm² to 35mm² for solid-core cables.
Key Features
- Thermal magnetic protection with 25A rated current at 400V AC
- B-curve tripping characteristic between 3 In and 5 In for optimal overload protection
- 6kA breaking capacity at 400V with 10kA at 230V per IEC 60947-2 standards
- IP20 fingerproof design protecting against solid bodies larger than 12.5mm
- DIN rail mounting with independent removal without busbar disconnection
- Energy limitation class 3 for maximum short-circuit protection
- Compatible with Legrand DX3 auxiliaries and RCD add-on modules
- Halogen-free construction with environmentally conscious design
- Label holder for circuit identification and status indication
- Flexible supply options: copper cable, prong busbar, fork busbar, or HX3 plug busbar
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Number of Poles | 3P (Three Pole) |
| Rated Current | 25 A |
| Rated Voltage | 400 V AC |
| Voltage Type | AC (Alternating Current) |
| Release Characteristic | B-Curve (75A-125A tripping range) |
| Breaking Capacity (Icn) | 6 kA at 400V per IEC 60898-1 |
| Breaking Capacity (Icu) | 10 kA at 400V per IEC 60947-2 |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Current Limiting Class | Class 3 (Maximum energy limitation) |
| Degree of Protection | IP20 (Fingerproof) |
| Mounting Method | DIN Rail |
| Built-in Depth | 44 mm |
| Width in Modular Spacings | 3 modules |
| Physical Dimensions | Width 53.1mm x Height 94.8mm x Depth 77.8mm |
| Degree of Impact Strength | IK02 |
| Connectable Conductor Cross Section (Solid-core) | 1.5 - 35 mm² |
| Connectable Conductor Cross Section (Multi-wired) | 1.5 - 25 mm² |
| Connection Type | Screwed Terminal |
| Ambient Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Frequency | 50-60 Hz |
| Pollution Degree | 2 |
| Color | Grey (RAL 7035) |
| Halogen Free | Yes |
| Flush-mounted Installation | Yes |
| Concurrently Switching Neutral | No |
| Additional Equipment Possible | Yes (DX3 auxiliaries, RCD modules, accessories) |
| Electric Supply Direction | Top or Bottom |
| Reference Number | 407563 |
| EAN Code | 3245064075633 |
| Carbon Footprint (Manufacturing) | 2.805 kg CO₂ eq. |
| Manufacturer | Legrand |
| Product Series | DX³ |
