Professional 3-pole thermal magnetic circuit breaker with 63A rating, D-curve protection, and 10kA breaking capacity. IP20 finger-safe protection with DIN rail mounting and comprehensive accessory compatibility.

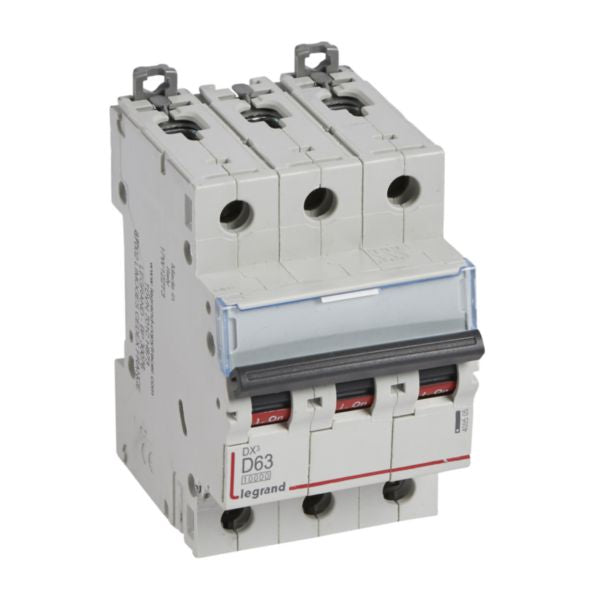

The Legrand DX3 MCB 10000A is a professional-grade thermal magnetic circuit breaker designed to protect wiring installations against overloads and short-circuits. With a rated current of 63A and D-curve release characteristic, this 3-pole breaker delivers a breaking capacity of 10kA at 400V~. The device features IP20 finger-safe protection, ensuring safe operation in residential and small commercial applications. Built with precision engineering, it provides reliable control and isolation of electrical installations with exceptional safety standards.
This circuit breaker is equipped with two DIN rail clamps for independent removal while the prong busbar remains in place. The device supports multiple supply methods including copper cable, prong busbar (top or bottom side), fork busbar, and Legrand HX3 plug busbar connections. It incorporates a convenient label holder for circuit identification and clear ON/OFF indication on the handle with red and green backgrounds respectively. The breaker is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, making it a versatile solution for modern electrical installations.
Designed with environmental consciousness, this product complies with substance-restriction requirements and RoHS directives. The thermal magnetic protection mechanism ensures rapid response to fault conditions, with short-circuit tripping thresholds between 630A and 882A (D-curve between 10In and 14In). Operating across a wide temperature range from -25°C to +70°C, it delivers consistent performance in diverse environmental conditions. The grey RAL 7035 colored housing provides a professional appearance while maintaining durability and reliability in demanding electrical environments.
Key Features
- Breaking capacity of 10kA according to IEC 60898-1 standard for household installations
- D-curve release characteristic with short-circuit tripping between 630A and 882A (10In to 14In)
- IP20 finger-safe protection against solid bodies larger than 12.5mm per IEC/EN 60529
- Dual DIN rail clamps allowing independent removal while busbar remains installed
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and comprehensive accessories
- Multiple supply options including copper cable, prong busbar, fork busbar and HX3 plug busbar
- Clear label holder for circuit identification with ON/OFF indication on handle
- Halogen-free design with RoHS compliance and environmentally conscious manufacturing
- Wide operating temperature range from -25°C to +70°C for diverse environments
- Rated insulation voltage of 500V with 4kV impulse withstand capability
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Manufacturer | Legrand |
| Model Series | DX3 |
| Reference Number | 409505 |
| EAN Code | 3414970434531 |
| Number of Poles | 3 poles |
| Rated Current | 63 Amperes |
| Release Characteristic | D-curve |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 230V | 16 kA (Icn) |
| Breaking Capacity at 400V | 10 kA (Icn) |
| Ultimate Breaking Capacity at 230V | 32 kA (Icu) |
| Ultimate Breaking Capacity at 400V | 16 kA (Icu) |
| Short-Circuit Tripping Range | 630A to 882A (D-curve 10In to 14In) |
| Frequency | 50-60 Hz |
| Degree of Protection | IP20 (Finger-safe) |
| Degree of Impact Strength | IK02 |
| Pollution Degree | 2 |
| Width in Modular Spacings | 3 modules |
| Width | 53.1 mm |
| Height | 94.8 mm |
| Depth | 77.8 mm |
| Built-in Depth | 44 mm |
| Connectable Conductor Cross-Section (Multi-wired) | 1.5 to 25 mm² |
| Connectable Conductor Cross-Section (Solid-core) | 1.5 to 35 mm² |
| Connection Type | Screwed terminal |
| Mounting Method | DIN rail |
| Supply Direction | Top or bottom |
| Flush-mounted Installation | Yes |
| Concurrent Switching of Neutral | No |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Colour | Grey |
| RAL Number | 7035 |
| Halogen Free | Yes |
| Explosion-proof | No |
| Additional Equipment Possible | Yes |
| Label Space | Yes |
| Carbon Footprint (Manufacturing) | 2.805 kg CO2 eq. |
| Standards Compliance | IEC 60898-1, IEC/EN 60529, IEC 60947-2, RoHS, REACH |
