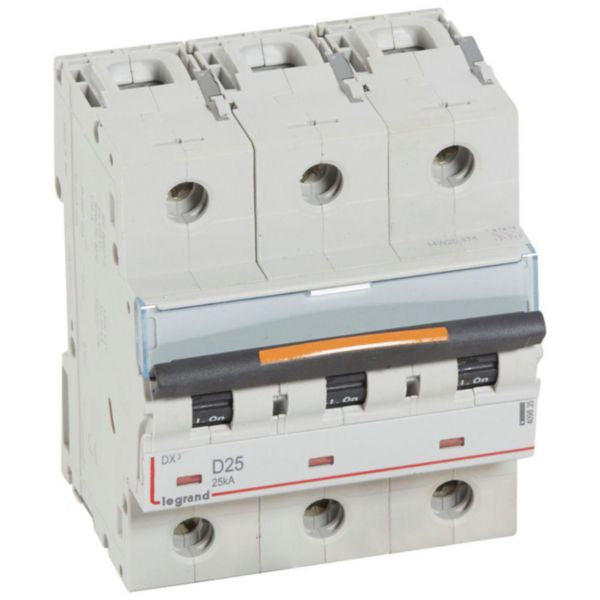

Shop Legrand DX3 MCB 3 Pole 25A Curve D Circuit Breaker | 409835 In Iraq Best Prices
Legrand DX3 three-pole modular circuit breaker with 25A rated current, 25kA breaking capacity at 400V, D-curve protection, and IP20 finger-safe terminals for reliable electrical circuit protection.
The Legrand DX3 MCB is a three-pole modular thermal-magnetic circuit breaker designed for control, protection, and isolation of electrical circuits in residential and small commercial applications. This high-performance device offers a rated breaking capacity of 25kA at 400V with a D-curve characteristic, providing reliable protection against overloads and short circuits. The circuit breaker features 25A rated current and is equipped with IP20 finger-safe terminals for enhanced safety. It can be supplied from either the top or bottom side using copper cable and is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories for comprehensive electrical system integration.
Designed with modern safety standards in mind, the DX3 MCB includes a red/green mechanical indicator that clearly displays the contact status (open or closed), along with a label holder for circuit identification. The device operates across a frequency range of 50-60 Hz and maintains performance in ambient temperatures from -25°C to 70°C. With a compact built-in depth of 47mm and a width of 80.1mm, it integrates seamlessly into standard DIN rail installations. The product complies with IEC 60947-2 standards and substance-restriction requirements, demonstrating Legrand's commitment to environmental responsibility.
This circuit breaker is engineered for professional installation and offers exceptional durability with halogen-free construction. The device provides concise circuit protection with its D-curve tripping characteristic, which activates between 250A and 350A for short-circuit conditions. It accommodates both solid-core conductors (1.5-50mm²) and multi-wired conductors (1.5-35mm²), making it versatile for various installation scenarios. The grey color (RAL 7035) and robust construction ensure long-term reliability in demanding electrical environments.
Key Features
- 25kA breaking capacity at 400V according to IEC 60947-2 standards
- D-curve tripping characteristic with 250A-350A short-circuit threshold
- IP20 finger-safe terminals protecting against solid bodies larger than 12.5mm
- Red/green mechanical indicator for clear open/closed contact status display
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories
- Halogen-free construction with environmentally conscious design
- DIN rail mounting with 4.5 modular spacing width
- Operates across 50-60 Hz frequency range
- Label holder for convenient circuit identification
- Top or bottom copper cable supply capability
Technical Specifications
| Specification |
Value |
| Product Type | Three-pole modular thermal-magnetic circuit breaker |
| Rated Current | 25A |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 6kV |
| Breaking Capacity at 400V | 25kA |
| Breaking Capacity at 230V | 50kA |
| Release Characteristic | D curve (250A-350A short-circuit threshold) |
| Number of Poles | 3 poles (3 protected poles) |
| Degree of Protection | IP20 |
| Built-in Depth | 47mm |
| Width | 80.1mm |
| Height | 127.5mm |
| Modular Width Spacing | 4.5 modules |
| Frequency Range | 50-60 Hz |
| Operating Temperature Range | -25°C to 70°C |
| Storage Temperature Range | -40°C to 70°C |
| Solid-core Conductor Cross-section | 1.5-50mm² |
| Multi-wired Conductor Cross-section | 1.5-35mm² |
| Mounting Method | DIN rail |
| Installation Position | Top or bottom copper cable supply |
| Colour | Grey (RAL 7035) |
| Impact Strength Degree | IK02 |
| Pollution Degree | 3 |
| Halogen Free | Yes |
| Connection Type | Screwed terminal and cable |
| Additional Equipment Possible | Yes - compatible with RCD modules and Legrand accessories |
| Concurrently Switching Neutral | No |
| Flush-mounted Installation | Yes |
| Reference Number | 409835 |
| EAN Code | 3245064098359 |
| Carbon Footprint (Manufacturing Phase) | 5.684 kg CO₂ eq. |
Order Legrand DX3 MCB 3 Pole 25A Curve D Circuit Breaker | 409835 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
