Shop Legrand DX3 MCB 3 Pole 20A Curve D Circuit Breaker | 410214 In Iraq Best Prices

Legrand DX3 3-pole 20A Curve D miniature circuit breaker with 50kA breaking capacity, IP20 protection, and DIN rail mounting for residential and commercial electrical protection.

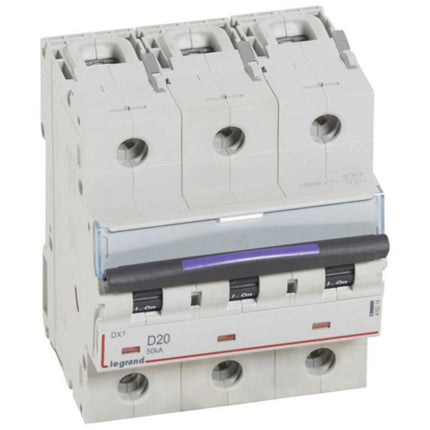

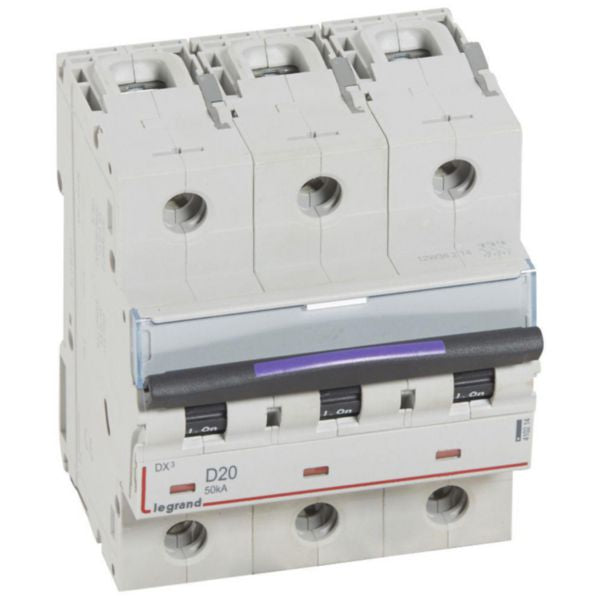

The Legrand DX3 MCB 3 Pole 20A Curve D is a high-performance miniature circuit breaker designed for residential and small commercial electrical installations. This device provides exceptional protection with a breaking capacity of 50kA according to IEC 60947-2 standards, featuring a D-curve tripping characteristic that ensures reliable short-circuit protection between 200A and 280A. The breaker incorporates advanced safety features including a red/green mechanical indicator for clear status display and a label holder for convenient circuit identification. This three-pole circuit breaker is engineered for flush-mounted DIN rail installation and offers superior reliability with IP20 protection rating against solid bodies larger than 12.5mm. The device is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, making it highly versatile for complex electrical systems. Built with halogen-free materials and designed through an environmentally conscious process, this MCB meets all substance-restriction requirements and complies with modern safety standards. The DX3 20A breaker operates efficiently across a wide ambient temperature range of -25°C to +70°C and accommodates both copper and aluminum cables (with appropriate terminal accessories). Its 4.5 modular spacing width and compact 47mm built-in depth make it ideal for space-constrained installations. With screwed terminal connections supporting conductor cross-sections from 1.5mm² to 50mm² for solid-core cables, this breaker delivers professional-grade electrical protection for demanding applications.

Key Features

High breaking capacity of 50kA according to IEC 60947-2 standards for superior short-circuit protection
D-curve tripping characteristic with 200A-280A short-circuit threshold for reliable circuit protection
Red/green mechanical indicator displaying clear open/closed contact status
IP20 fingerproof protection against solid bodies larger than 12.5mm per IEC/EN 60529
Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and comprehensive accessories
Halogen-free construction designed through environmentally conscious manufacturing process
Wide ambient temperature operating range from -25°C to +70°C for versatile installations
Supports both copper and aluminum cable connections with appropriate terminal accessories
Compact 47mm built-in depth with 4.5 modular spacing for space-efficient installations
Convenient label holder for clear circuit identification and management

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Brand	Legrand
Series	DX3
Reference Number	410214
EAN Code	3245064102148
Number of Poles	3 poles
Rated Current	20 A
Release Characteristic	D curve
Tripping Threshold	200A to 280A (D curve between 10 In and 14 In)
Rated Voltage	400 V AC
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	6 kV
Breaking Capacity at 230V	100 kA (Icu according to IEC 60947-2)
Breaking Capacity at 400V	50 kA (Icu according to IEC 60947-2)
Frequency	50-60 Hz
Nominal Voltage Range	360-440 V
Voltage Type	AC (Alternating Current)
Protection Degree	IP20 (Fingerproof)
Degree of Impact Strength	IK02
Pollution Degree	3
Built-in Depth	47 mm
Width	80.1 mm
Height	127.5 mm
Total Depth	79.2 mm
Modular Width	4.5 modular spacings
Installation Type	DIN rail flush-mounted
Connection Type	Screwed terminal with cable entry from top or bottom
Solid-Core Conductor Cross-Section	1.5-50 mm²
Multi-Wired Conductor Cross-Section	1.5-35 mm²
Ambient Temperature Operating Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Color	Grey
RAL Number	7035
Halogen Free	Yes
Explosion-Proof	No
Concurrently Switching Neutral Conductor	No
Additional Equipment Possible	Yes - Compatible with DX3 auxiliaries and RCD modules
Label Space/Information Surface	Yes
Terminal Marking Indication	No
Carbon Footprint Manufacturing Phase	5.684 kg CO2 eq.
Warranty	Manufacturer warranty included - See product documentation

Order Legrand DX3 MCB 3 Pole 20A Curve D Circuit Breaker | 410214 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
