Description

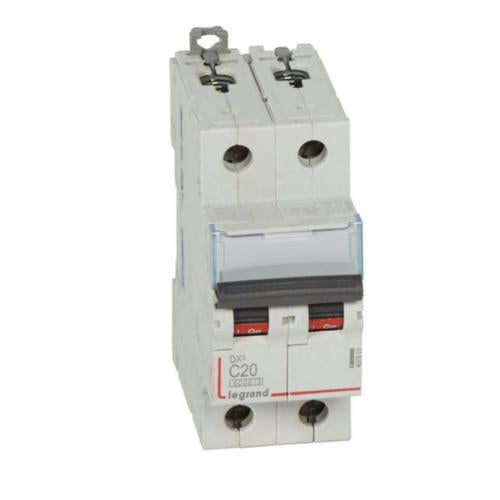

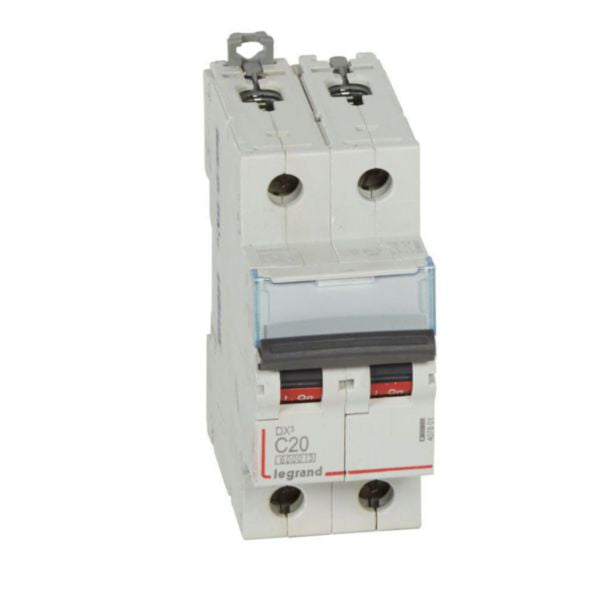

Shop Legrand DX3 MCB 2P 20A Curve C Circuit Breaker | 407801 In Iraq Best Prices

Thermal magnetic 2-pole circuit breaker with 20A C curve rating, 6kA breaking capacity, DIN rail mounting, and IP20 protection for residential and commercial electrical installations.

The Legrand DX3 MCB 6000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a 20A C curve rating and 2-pole 230/400V~ configuration, this device offers reliable protection for residential and small commercial applications. It features a 6kA breaking capacity at 400V and 10kA rated short-circuit breaking capacity according to IEC 60947-2 standards, ensuring maximum safety for electrical installations. This modular circuit breaker is equipped with DIN rail mounting capability and IP20 protection rating, making it fingerproof against solid bodies larger than 12.5mm. The device incorporates current limiting class 3 technology for superior energy limitation during fault conditions. It can be supplied via copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar connections, providing flexible installation options for various electrical configurations. The MCB DX3 complies with all substance-restriction requirements and has been designed with environmental consciousness in mind. It is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, allowing for customizable protection solutions. The product features a convenient label holder for circuit identification and clear ON/OFF indication with red and green background markings for easy status monitoring.

Key Features

Thermal magnetic protection against overloads and short-circuits with 20A C curve characteristic
6kA rated breaking capacity at 400V with 10kA IEC 60947-2 rated capacity at 400V
2-pole 230/400V~ configuration suitable for residential and small commercial applications
DIN rail mounting with dual clamps for independent removal without interrupting busbar supply
IP20 fingerproof protection and current limiting class 3 for superior energy limitation
Compatible with Legrand DX3 auxiliaries and RCD add-on modules for customizable protection
Clear label holder and ON/OFF indication with color-coded red and green backgrounds
Flexible connection options: copper cable, prong busbar, fork busbar, or HX3 plug busbar
Environmentally conscious design with halogen-free materials and RoHS compliance
Operating temperature range -25°C to +70°C with storage capability -40°C to +70°C

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit Breaker (MCB)
Number of Poles	2 poles (2P)
Rated Current	20 Amperes (A)
Release Characteristic	C Curve (5-10 In tripping threshold)
Rated Voltage	400V AC / 230/400V~ dual voltage
Rated Insulation Voltage	500V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity at 400V	6 kA (Icn) / 10 kA (Icu per IEC 60947-2)
Breaking Capacity at 230V	25 kA (Icu per IEC 60947-2)
Current Limiting Class	Class 3 (Maximum energy limitation)
Degree of Protection	IP20 (Fingerproof - protected against solid bodies >12.5mm)
Impact Strength Rating	IK02
Mounting Method	DIN Rail (35mm standard)
Module Width	2 modular spacings (35.4mm)
Built-in Depth	44 mm
Overall Dimensions	Width: 35.4mm, Height: 94.8mm, Depth: 77.8mm
Connection Type	Screwed terminal
Connectable Conductor Cross Section (Solid)	1.5 - 35 mm²
Connectable Conductor Cross Section (Multi-wired)	1.5 - 25 mm²
Supply Direction	Top or bottom connection
Frequency	50-60 Hz
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Pollution Degree	2
Color	Grey (RAL 7035)
Material Compliance	Halogen-free, RoHS compliant
Neutral Conductor Switching	No (2-pole protection only)
Flush-mounted Installation	Yes
Additional Equipment	Compatible with DX3 auxiliaries and RCD add-on modules
Carbon Footprint (Manufacturing)	1.656 kg CO2 eq. (A1-A3 phase)
Reference Number	407801
EAN Code	3245064078016

Order Legrand DX3 MCB 2P 20A Curve C Circuit Breaker | 407801 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
