Description

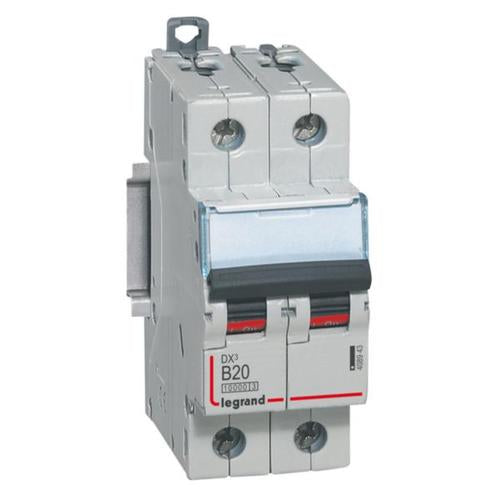

Shop Legrand DX3 MCB 2P 20A B-Curve 10kA Circuit Breaker | 408943 In Iraq Best Prices

Thermal magnetic 2-pole circuit breaker with 20A B-curve and 10kA breaking capacity for reliable protection of residential and commercial wiring installations against overloads and short-circuits.

The Legrand DX3 MCB 10000A is a thermal magnetic circuit breaker specifically designed to protect wiring installations against overloads and short-circuits. With a rated current of 20A and B-curve release characteristic, this 2-pole device provides reliable protection for residential and small commercial applications. The breaker features a 10kA breaking capacity at 400V and complies with IEC 60898-1 standards for household installations, ensuring maximum safety and performance in demanding electrical environments. This circuit breaker offers advanced functionality beyond basic protection, allowing users to control and isolate the installation with ease. The device accepts Legrand DX³ auxiliaries and RCD add-on modules, providing flexibility for system expansion and customization. With a tripping threshold between 60A and 100A (B curve between 3 In and 5 In), the MCB delivers precise short-circuit protection while maintaining operational stability. The breaker is protected against solid bodies larger than 12.5mm with IP20 rating according to IEC/EN 60529 standard, ensuring durability and safety in various installation conditions. Designed with installation convenience in mind, the DX3 MCB features two DIN rail clamps for independent removal without affecting the prong busbar supply. The device includes a label holder for clear circuit identification and On/Off indication printed on the handle for easy status recognition. With a built-in depth of 44mm, width of 35.4mm, and height of 94.8mm, this 2-module breaker integrates seamlessly into standard electrical panels. The halogen-free construction demonstrates environmental responsibility, while the carbon footprint of 1.844 kg CO₂eq during manufacturing reflects Legrand's commitment to sustainable production practices.

Key Features

Breaking capacity of 10kA at 400V according to IEC 60898-1 standard for household installations
B-curve release characteristic with tripping threshold between 60A and 100A (3 In to 5 In)
Accepts DX³ auxiliaries, RCD add-on modules and accessories for system flexibility
IP20 protection against solid bodies larger than 12.5mm with energy limitation class 3
Dual DIN rail clamps for independent removal without affecting busbar supply
Label holder and On/Off indication for easy circuit identification and status recognition
Compatible with copper and aluminium cables with appropriate terminal accessories
Halogen-free construction for environmental responsibility and sustainability
Operating temperature range from -25°C to +70°C for reliable performance
Concurrently switching capability with maximum let-through energy limitation

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit Breaker (MCB)
Number of Poles	2 poles (2P)
Rated Current	20 Amperes (A)
Release Characteristic	B-curve (tripping 3-5 In)
Breaking Capacity at 400V	10,000A (10kA) according to IEC 60898-1
Breaking Capacity at 230V	16kA according to IEC 60898-1
Ultimate Breaking Capacity Icu at 400V	16kA according to IEC 60947-2
Rated Voltage	400V AC
Rated Insulation Voltage Ui	500V
Rated Impulse Withstand Voltage Uimp	4kV
Frequency Range	50-60 Hz
Current Limiting Class	Class 3 (maximum energy limitation)
Degree of Protection IP	IP20 (fingerproof against solid bodies >12.5mm)
Degree of Impact Strength IK	IK02
Built-in Depth	44mm
Width in Modular Spacings	2 modules
Width Dimension	35.4mm
Height Dimension	94.8mm
Overall Depth Dimension	77.8mm
Connectable Conductor Cross-Section (Multi-wired)	1.5-25 mm²
Connectable Conductor Cross-Section (Solid-core)	1.5-35 mm²
Connection Type	Screwed terminal
Electric Supply Direction	Top or bottom
Mounting Method	DIN rail mounting
Colour	Grey
RAL Number	7035
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Pollution Degree	2
Flush-mounted Installation	Yes
Concurrently Switching Neutral Conductor	No
Halogen Free	Yes
Additional Equipment Possible	Yes (DX³ auxiliaries and RCD add-on modules)
Carbon Footprint Manufacturing	1.844 kg CO₂eq
Label Space/Information Surface	Yes
Reference Number	408943
EAN Code	3245064089432

Order Legrand DX3 MCB 2P 20A B-Curve 10kA Circuit Breaker | 408943 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
