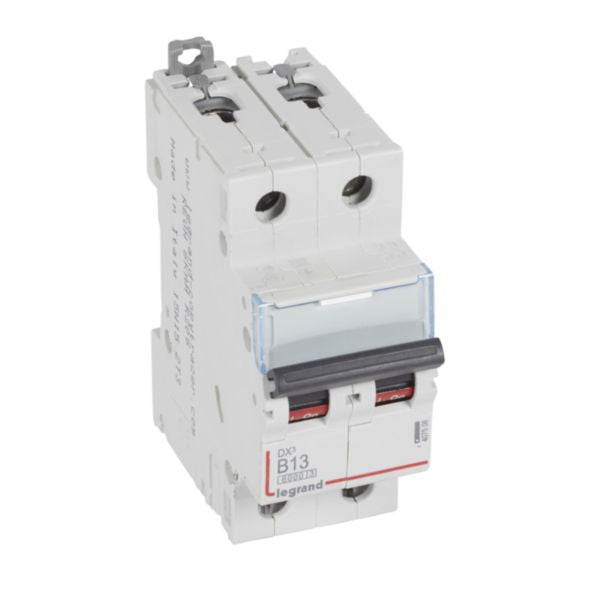

Shop Legrand DX3 MCB 2P 13A Curve B 6000A Circuit Breaker | 407508 In Iraq Best Prices
2-pole thermal magnetic circuit breaker with 13A rating, B-curve characteristic, and 6000A breaking capacity. Provides IP20 finger-safe protection and energy limitation class 3 for reliable wiring installation protection.
The Legrand DX3 MCB 6000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This 2-pole device features a 13A rated current with B-curve characteristic and exceptional 6000A breaking capacity according to IEC 60898-1 standard for household installations. The breaker provides IP20 finger-safe protection, ensuring safety against solid bodies larger than 12.5mm, and offers energy limitation class 3 for maximum protection.
This modular circuit breaker is equipped with two DIN rail clamps (top and bottom side) allowing independent removal when the prong busbar is still in place. It features a convenient label holder for circuit identification and clear ON/OFF indication printed on the handle with red and green backgrounds. The device can be supplied by copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar, offering flexible installation options.
The MCB DX3 complies with all substance-restriction requirements and has been designed through an environmentally conscious process. It can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and accessories, making it highly versatile for various electrical installations. The device operates reliably across a wide ambient temperature range from -25°C to 70°C and supports both 50Hz and 60Hz frequencies.
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard for household installations
- B-curve tripping characteristic between 3In and 5In (39A to 65A short-circuit threshold)
- IP20 finger-safe protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for maximum let-through energy limitation
- Flexible supply options: copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar
- Independent DIN rail removal with top and bottom clamps
- Clear ON/OFF indication with red and green handle backgrounds
- Compatible with Legrand DX3 auxiliaries and RCD add-on modules
- Connectable to aluminum cable with terminal accessory
- Halogen-free and environmentally conscious design
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Number of Poles | 2 poles (2P) |
| Rated Current | 13 Amperes (A) |
| Release Characteristic | B-curve (3In to 5In) |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4 kV |
| Rated Short-Circuit Breaking Capacity (Icn) | 6 kA at 400V (IEC 60898-1) |
| Rated Short-Circuit Breaking Capacity (Icu) | 25 kA at 230V / 10 kA at 400V (IEC 60947-2) |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 (Finger-safe) |
| Degree of Impact Strength | IK02 |
| Width in Modular Spacings | 2 modules |
| Width | 35.4 mm |
| Height | 94.8 mm |
| Built-in Depth | 44 mm |
| Total Depth | 77.8 mm |
| Connectable Conductor Cross Section (Multi-wired) | 1.5 to 25 mm² |
| Connectable Conductor Cross Section (Solid-core) | 1.5 to 35 mm² |
| Connection Type | Screwed Terminal |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Frequency | 50-60 Hz |
| Voltage Type | AC |
| Pollution Degree | 2 |
| Mounting Method | DIN Rail |
| Colour | Grey (RAL 7035) |
| Halogen Free | Yes |
| Flush-mounted Installation | Yes |
| Concurrently Switching Neutral Conductor | No |
| Additional Equipment Possible | Yes (Auxiliaries and RCD modules) |
| Explosion-proof | No |
| Label Space/Information Surface | Yes |
| Carbon Footprint (Manufacturing) | 1.701 kg CO₂ eq. |
| Reference Number | 407508 |
| EAN Code | 3245064075084 |
