Shop Legrand DX3 MCB 2P 125A D-Curve 10kA Circuit Breaker | 409460 In Iraq Best Prices
Professional-grade modular circuit breaker with 125A D-curve protection, 10kA/16kA breaking capacity, IP20 finger-safe design, and full compatibility with Legrand DX3 system for reliable residential and commercial electrical protection.

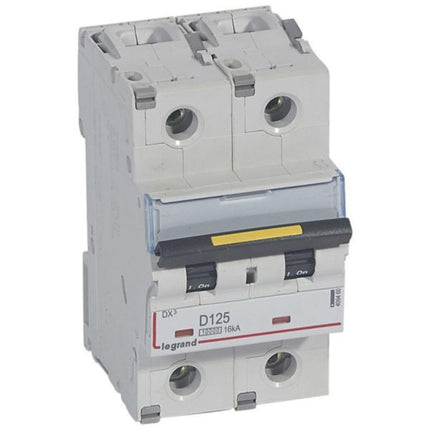

The Legrand DX³ MCB 10000A 2-pole 125A D-curve circuit breaker (Reference 409460) is a modular thermal-magnetic protection device designed for reliable electrical circuit isolation and protection in residential and small commercial installations. This advanced circuit breaker features a fully visible breaking mechanism that ensures safe and reliable operation, with a breaking capacity of 10,000A according to IEC 60898-1 standard and 16kA according to IEC 60947-2 standard. The D-curve characteristic provides a tripping threshold between 1250A and 1750A (10-14 times the rated current), making it ideal for circuits with moderate inrush currents.
This bipolar circuit breaker is equipped with comprehensive safety features including IP20 finger-proof protection, a red/green mechanical indicator displaying open/closed contact status, and a convenient label holder for circuit identification. The device can be supplied by copper cable from either the top or bottom, and is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories. With a rated voltage of 400V and insulation voltage of 500V, it meets all modern electrical standards and is suitable for flush-mounted installation on DIN rails.
Manufactured with environmental consciousness, this circuit breaker is halogen-free and complies with substance-restriction requirements including RoHS and REACH directives. The product offers exceptional reliability with an operating temperature range of -25°C to +70°C and storage capability from -40°C to +70°C. Its compact design with a width of 35.4mm and depth of 47mm allows for efficient space utilization in electrical panels, while maintaining full compliance with IEC/EN safety standards.
Key Features
- Thermal-magnetic protection with D-curve characteristic for moderate inrush current applications
- 10,000A breaking capacity per IEC 60898-1 and 16kA per IEC 60947-2 international standards
- IP20 finger-proof protection against solid bodies larger than 12.5mm for enhanced safety
- Red/green mechanical status indicator showing open/closed contact position clearly
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and system accessories
- Fully visible breaking mechanism ensuring safe and reliable circuit isolation
- Label holder for convenient circuit identification and documentation
- DIN rail mounting with compact 3-module width for efficient panel space utilization
- Halogen-free construction with RoHS and REACH compliance for environmental responsibility
- Screwed terminal connection supporting multi-wired (6-50mm²) and solid-core (6-70mm²) conductors
Technical Specifications
| Specification |
Value |
| Product Reference | 409460 |
| EAN Code | 3245064094603 |
| Brand | Legrand |
| Series | DX³ |
| Number of Poles | 2 (Bipolar) |
| Rated Current | 125A |
| Release Characteristic | D-curve |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage (Ui) | 500V |
| Rated Impulse Withstand Voltage | 4kV |
| Breaking Capacity (Icn) IEC 60898-1 | 10,000A at 400V |
| Breaking Capacity (Icu) IEC 60947-2 | 16kA at 400V / 32kA at 230V |
| Tripping Threshold Range | 1250A - 1750A (10-14 × In) |
| Frequency | 50-60Hz |
| Degree of Protection | IP20 (Finger-safe) |
| Impact Strength Rating | IK02 |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Pollution Degree | 2 |
| Connectable Conductor - Multi-wired | 6-50mm² |
| Connectable Conductor - Solid-core | 6-70mm² |
| Connection Type | Screwed Terminal |
| Supply Direction | Top or Bottom |
| Installation Type | Flush-mounted on DIN rail |
| Width | 35.4mm (3 modular units) |
| Height | 94.8mm |
| Built-in Depth | 47mm |
| Total Depth | 77.8mm |
| Color | Grey (RAL 7035) |
| Material | Halogen-free |
| Neutral Conductor | Not concurrently switching |
| Additional Equipment | Yes - Compatible with DX3 auxiliaries and RCD modules |
| Carbon Footprint (Manufacturing) | 3.068 kg CO₂ eq. |
| Compliance Standards | IEC 60898-1, IEC 60947-2, IEC/EN 60529, RoHS, REACH |
