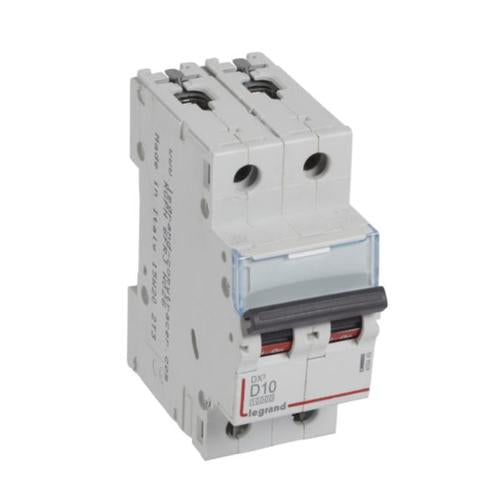

Shop Legrand DX3 MCB 2P 10A D-Curve 10kA Circuit Breaker | 409449 In Iraq Best Prices
Thermal magnetic 2-pole circuit breaker with 10A rated current, D-curve tripping, 10kA breaking capacity, IP20 protection, and DIN rail mounting for reliable electrical installation protection.
The Legrand MCB DX3 10000A is a thermal magnetic circuit breaker designed to provide reliable protection for wiring installations against overloads and short circuits. With a breaking capacity of 10kA at 230V and D-curve tripping characteristics, this 2-pole device offers exceptional safety and performance. The circuit breaker features IP20 finger-safe protection, making it suitable for both residential and small commercial applications. Its DIN rail mounting system allows for easy installation and maintenance, while the independent removal capability ensures convenient servicing without disrupting the entire power distribution system.
This advanced protection device is equipped with a rated current of 10A and operates at 400V with a rated insulation voltage of 500V. The D-curve release characteristic provides optimal protection for circuits with moderate inrush currents, making it ideal for general-purpose wiring installations. The breaker can be supplied through copper cables, prong busbars, fork busbars, or Legrand HX3 plug busbars, offering flexible installation options. With its built-in label holder and clear ON/OFF indication on the handle, users can easily identify circuit status and manage their electrical systems efficiently.
The MCB DX3 is fully compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, allowing for system expansion and customization. The device complies with all substance-restriction requirements and has been designed with environmental consciousness in mind. Operating across a frequency range of 50-60 Hz and temperature range of -25 to 70°C, this circuit breaker delivers consistent performance in diverse environmental conditions. Its halogen-free construction and comprehensive safety certifications make it a preferred choice for modern electrical installations.
Key Features
- Breaking capacity of 10kA at 230V with D-curve tripping between 100A-140A for optimal circuit protection
- IP20 finger-safe protection design prevents accidental contact with live components
- DIN rail mounting with independent removal capability allows convenient installation and maintenance
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and comprehensive accessories
- Clear ON/OFF indication with label holder for easy circuit identification and status monitoring
- Halogen-free construction with environmental consciousness and substance-restriction compliance
- Rated current of 10A with 400V rated voltage and 500V insulation voltage
- Operates reliably across 50-60 Hz frequency and -25 to 70°C temperature range
- Accepts copper cables, prong busbars, fork busbars, and Legrand HX3 plug busbars for flexible supply
- Compact 2-module width design (35.4mm) with 44mm built-in depth for space-efficient installation
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker |
| Rated Current | 10 A |
| Number of Poles | 2 |
| Release Characteristic | D-Curve |
| Breaking Capacity at 230V | 10 kA |
| Breaking Capacity at 400V | 10 kA (Icn) |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (Finger-safe) |
| Mounting Method | DIN Rail |
| Built-in Depth | 44 mm |
| Width | 35.4 mm |
| Height | 94.8 mm |
| Total Depth | 77.8 mm |
| Width in Modular Spacings | 2 |
| Degree of Impact Strength | IK02 |
| Operating Temperature Range | -25 to 70 °C |
| Storage Temperature Range | -40 to 70 °C |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Connectable Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Connection Type | Screwed Terminal |
| Supply Direction | By the top or bottom |
| Pollution Degree | 2 |
| Colour | Grey |
| RAL Number | 7035 |
| Halogen Free | Yes |
| Label Space | Yes |
| Flush-mounted Installation | Yes |
| Concurrently Switching Neutral | No |
| Additional Equipment Possible | Yes |
| Carbon Footprint (Manufacturing) | 1.713 kg CO₂ eq |
| Reference Number | 409449 |
| EAN Code | 3414970434197 |
