Shop Legrand DX3 MCB 2P 100A D-Curve Circuit Breaker | 409459 In Iraq Best Prices

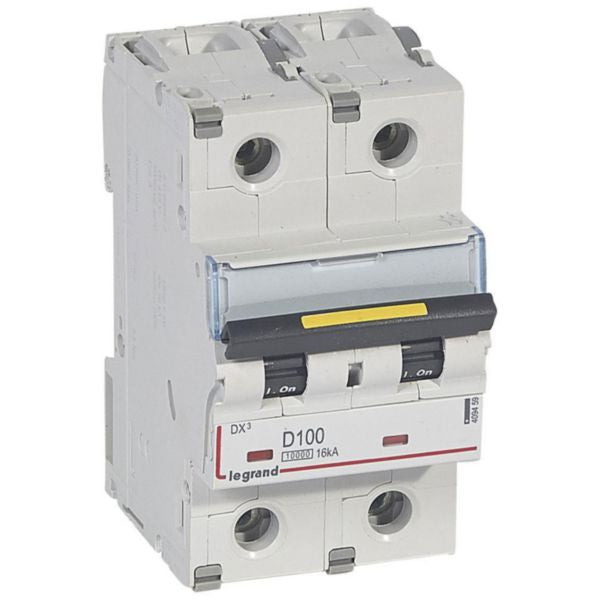

Legrand DX³ modular bipolar thermal-magnetic circuit breaker with 10000A breaking capacity, D-curve 100A protection, IP20 finger-safe design, and fully visible breaking mechanism for 230/400V electrical circuits.

The Legrand DX³ MCB DX3 10000A 2 pole 100A curve D is a modular bipolar thermal-magnetic circuit breaker designed for control, protection and isolation of electrical circuits in residential and small commercial installations. This device features a breaking capacity of 10000A according to IEC 60898-1 standard for household applications and 16kA according to IEC 60947-2, making it suitable for demanding electrical environments. The circuit breaker incorporates a D-curve release characteristic with a tripping threshold between 1000A and 1400A (10-14 In), providing optimal protection against short circuits while minimizing nuisance trips during normal operation. This DX³ circuit breaker is equipped with fully visible breaking mechanism and a red/green mechanical indicator that clearly displays the open or closed status of the contacts. The device offers IP20 finger-safe protection according to IEC/EN 60529 standard, ensuring safety in installation environments where accidental contact is possible. With a built-in label holder for circuit identification and a width of 3 modular spacings, it integrates seamlessly into standard DIN rail installations. The breaker can be supplied from either the top or bottom and is compatible with copper cables in the range of 6-70mm² for solid-core conductors and 6-50mm² for multi-wired cables. The device is halogen-free and complies with substance-restriction requirements, having been designed with environmental consciousness. It can be equipped with Legrand DX3 auxiliaries, RCD add-on modules and various accessories to extend functionality. Operating across frequencies of 50-60 Hz with a rated voltage of 400V and insulation voltage of 500V, this circuit breaker provides reliable electrical protection with an ambient temperature operating range of -25 to 70°C. The grey-colored unit (RAL 7035) features a screwed terminal connection type and is suitable for flush-mounted DIN rail installations.

Key Features

Breaking capacity of 10000A per IEC 60898-1 and 16kA per IEC 60947-2 standards
D-curve release characteristic with tripping threshold between 1000A and 1400A for optimal short-circuit protection
Fully visible breaking mechanism with red/green mechanical status indicator
IP20 finger-safe protection against accidental contact and solid bodies larger than 12.5mm
Compatible with Legrand DX3 auxiliaries, RCD add-on modules and various accessories for extended functionality
Halogen-free design with environmentally conscious manufacturing process
Built-in label holder for clear circuit identification and management
Suitable for top or bottom copper cable supply in range of 6-70mm² solid-core or 6-50mm² multi-wired
3 modular spacing width for standard DIN rail installations
Operating temperature range -25 to 70°C with 50-60 Hz frequency capability

Technical Specifications

Specification	Value
Product Name	MCB DX3 10000A 2 Pole 100A Curve D
Reference Number	409459
EAN Code	3245064094597
Brand	Legrand
Product Series	DX³ Modular Circuit Breaker
Type	Thermal-Magnetic Circuit Breaker
Number of Poles	2 (Bipolar)
Rated Current	100 A
Release Characteristic	D-Curve
Rated Voltage	400 V AC
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity IEC 60898	10 kA at 400V
Breaking Capacity IEC 60947-2	16 kA at 400V, 32 kA at 230V
Short-Circuit Tripping Threshold	1000A to 1400A (10-14 In)
Frequency	50-60 Hz
Degree of Protection	IP20 (Finger-Safe)
Impact Strength Rating	IK02
Pollution Degree	2
Built-in Depth	47 mm
Width	35.4 mm
Height	94.8 mm
Total Depth	77.8 mm
Modular Width	3 Modular Spacings
Connection Type	Screwed Terminal
Conductor Cross Section Solid-Core	6-70 mm²
Conductor Cross Section Multi-Wired	6-50 mm²
Supply Direction	Top or Bottom
Installation Type	DIN Rail Mounting (Flush-Mounted)
Ambient Temperature Operating Range	-25 to 70°C
Storage Temperature Range	-40 to 70°C
Color	Grey
RAL Number	7035
Halogen Content	Halogen Free
Explosion-Proof	No
Additional Equipment Compatible	Yes - Legrand DX3 Auxiliaries, RCD Add-on Modules, Accessories
Neutral Conductor Switching	No (Does Not Switch Neutral)
Label Space	Yes - Built-in Label Holder
Mechanical Indicator	Red/Green Status Display
Carbon Footprint Manufacturing	3.068 kg CO₂ eq. (A1-A3 Phase)
Standards Compliance	IEC 60898-1, IEC 60947-2, IEC/EN 60529, RoHS, REACH
Warranty	Legrand Standard Warranty - Exclusive authorized repair by Legrand personnel

Order Legrand DX3 MCB 2P 100A D-Curve Circuit Breaker | 409459 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
