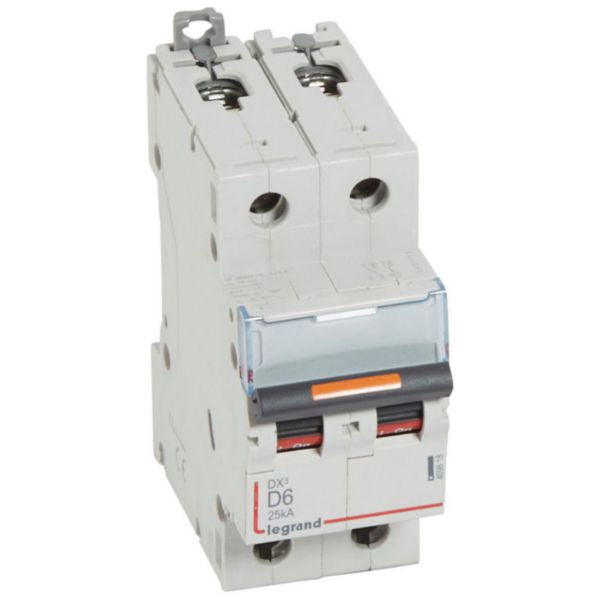

Shop Legrand DX3 MCB 2 Pole 6A Curve D Circuit Breaker | 409818 In Iraq Best Prices
Legrand DX³ modular bipolar circuit breaker with 6A D-curve protection, 25kA breaking capacity, IP20 finger-safe terminals, and DIN-rail mounting for reliable electrical circuit protection
The Legrand DX³ MCB is a modular bipolar thermal-magnetic circuit breaker designed for control, protection, and isolation of electrical circuits in residential and small commercial applications. This device offers exceptional reliability with a 25kA breaking capacity at 400V and provides D-curve 6A protection suitable for circuits with moderate inrush currents. The breaker features IP20 finger-safe terminals for enhanced safety, preventing accidental contact with live parts. It is equipped with two DIN rail clamps allowing independent removal without disrupting the busbar supply, making it ideal for maintenance and troubleshooting in electrical panels.
The DX³ series is engineered with advanced thermal-magnetic tripping mechanisms that respond to both overload and short-circuit conditions. The device can be supplied via copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar from either the top or bottom, providing flexible installation options. With a built-in label holder and clear ON/OFF indication on the handle with red and green backgrounds, circuit identification and status monitoring become straightforward. The product complies with IEC 60947-2 standards and features halogen-free construction, demonstrating Legrand's commitment to environmental sustainability.
The 6A rated current with D-curve characteristic makes this circuit breaker suitable for protecting general-purpose circuits and lighting loads. Operating within an ambient temperature range of -25°C to 70°C, it maintains consistent performance across various environmental conditions. The breaker is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, allowing for system expansion and customization. Installation should be performed by qualified electricians in compliance with local electrical codes and regulations.
Key Features
- 25kA breaking capacity at 400V according to IEC 60947-2 standards
- D-curve 6A protection with tripping threshold between 60A and 84A for short-circuit protection
- IP20 finger-safe terminals protecting against solid bodies larger than 12.5mm
- Flexible supply options: copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar
- Independent DIN rail removal system allowing maintenance without disrupting busbar supply
- Built-in label holder with clear ON/OFF indication for easy circuit identification
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories
- Halogen-free construction demonstrating environmental responsibility
- Operating temperature range -25°C to 70°C for consistent performance
- Concurrently switchable neutral conductor option available
Technical Specifications
| Specification |
Value |
| Product Type | Modular Bipolar Thermal-Magnetic Circuit Breaker |
| Rated Current | 6 A |
| Release Characteristic | D-curve |
| Number of Poles | 2 (Bipolar) |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 230V | 50 kA |
| Breaking Capacity at 400V | 25 kA |
| Short-Circuit Tripping Threshold | 60A to 84A (D-curve: 10In to 14In) |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 |
| Degree of Impact Strength | IK02 |
| Width (Module Spacing) | 2 modules |
| Dimensions (Width x Height x Depth) | 35.4 mm x 94.8 mm x 77.8 mm |
| Built-in Depth | 44 mm |
| Connectable Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Ambient Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Nominal Voltage Range | 360-440 V |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | Top or Bottom |
| Mounting Method | DIN rail |
| Flush-mounted Installation | Yes |
| Pollution Degree | 3 |
| Concurrently Switching Neutral | No |
| Additional Equipment Possible | Yes |
| Colour | Grey |
| RAL Number | 7035 |
| Halogen Free | Yes |
| Explosion-proof | No |
| Label Space/Information Surface | Yes |
| Terminal Marking Indication | No |
| Reference Number | 409818 |
| EAN Code | 3245064098182 |
| Carbon Footprint (Manufacturing) | 1.785 kg CO₂ eq. |
| Standards Compliance | IEC 60947-2, IEC/EN 60529 |
| Certifications | RoHS Compliant, REACH Declaration |
