Shop Legrand DX3 MCB 2 Pole 3A Circuit Breaker 6000A | 407794 In Iraq Best Prices
Legrand DX3 2-pole miniature circuit breaker with 3A rating and 6000A breaking capacity. Provides thermal-magnetic protection with C curve characteristic, IP20 finger-safe design, and environmentally conscious construction for residential and small commercial installations.

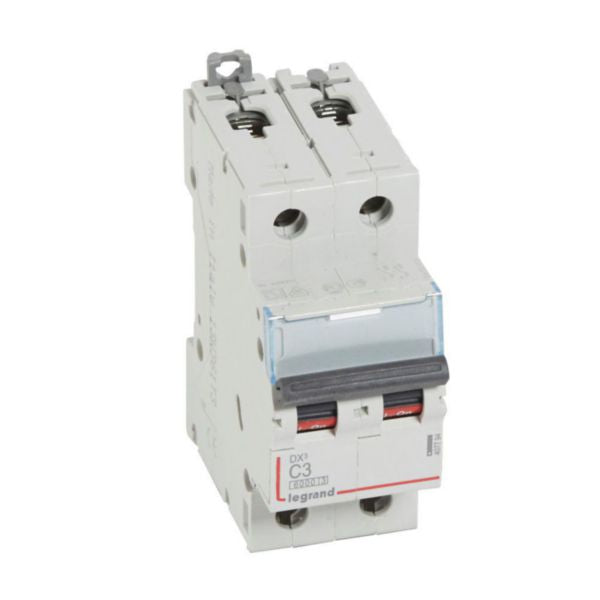

The Legrand DX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a rated current of 3A and a C curve release characteristic, this 2-pole breaker offers 6000A breaking capacity according to IEC 60898-1 standard for household installations. The tripping threshold in case of short-circuit is between 15A and 30A (C curve between 5 In and 10 In), providing reliable protection for residential and small commercial applications.
This circuit breaker features IP20 finger-safe protection, ensuring safety with protection against solid bodies larger than 12.5mm. It can be supplied by copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side). The device achieves maximum energy limitation class 3 according to IEC 60898-1 standard, minimizing let-through energy during fault conditions.
The MCB is equipped with two DIN rail clamps (one top side and one bottom side) allowing independent removal while the prong busbar supplying the row remains in place. It includes a label holder for clear circuit identification and ON/OFF indication printed on the handle with red and green backgrounds. The product is halogen-free and has been designed in an environmentally conscious process, complying with all substance-restriction requirements and RoHS directives.
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard for household installations
- Thermal-magnetic protection with C curve release characteristic between 5In and 10In
- IP20 finger-safe protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for maximum protection and minimal let-through energy
- Flexible connection options: copper cable, prong busbar, fork busbar, or HX3 plug busbar
- DIN rail mounting with two independent clamps for easy installation and removal
- Label holder with ON/OFF status indication for clear circuit identification
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories
- Halogen-free and environmentally conscious design
- Rated voltage 400V AC with 4kV impulse withstand voltage
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) - Thermal Magnetic |
| Number of Poles | 2 poles (2P) |
| Rated Current | 3A |
| Release Characteristic | C curve (5In - 10In) |
| Breaking Capacity | 6000A (Icn) at 400V according to IEC 60898-1 |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Impulse Withstand Voltage | 4kV |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | Class 3 |
| Protection Degree | IP20 (Finger-safe) |
| Impact Strength | IK02 |
| Width | 35.4mm (2 modular spacings) |
| Height | 94.8mm |
| Depth | 77.8mm / Built-in depth: 44mm |
| Color | Grey (RAL 7035) |
| Connection Type | Screwed terminal |
| Connectable Conductor Cross Section (Solid-core) | 1.5-35mm² |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25mm² |
| Mounting Method | DIN rail with independent top and bottom clamps |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Pollution Degree | 2 |
| Reference Number | 407794 |
| EAN Code | 3245064077941 |
| Environmental Compliance | Halogen-free, RoHS compliant, REACH compliant |
| Carbon Footprint (Manufacturing) | 1.745 kg CO2 eq. |
| Neutral Conductor Switching | No |
| Flush-mounted Installation | Yes |
| Additional Equipment Possible | Yes (DX3 auxiliaries, RCD modules, accessories) |
