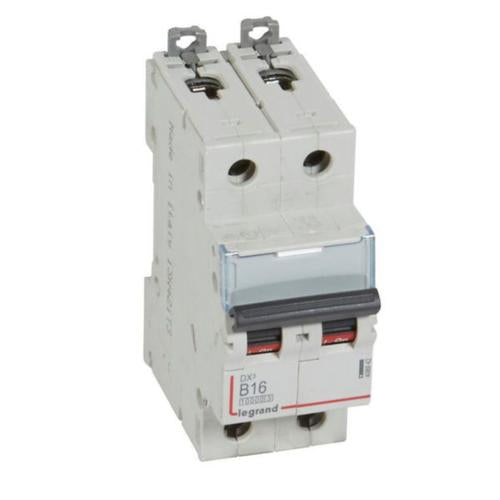

Shop Legrand DX3 MCB 2 Pole 16A Circuit Breaker Type B | 408942 In Iraq Best Prices
Legrand DX3 2-pole 16A thermal magnetic circuit-breaker with 10kA breaking capacity, B-curve protection, IP20 safety rating, and environmentally conscious design for residential and commercial electrical installations.
The Legrand DX3 MCB is a thermal magnetic circuit-breaker designed to protect residential and small commercial wiring installations against overloads and short-circuits. With a rated breaking capacity of 10,000A at 230V and 16,000A at 400V, this 2-pole device features a B-curve tripping characteristic that provides reliable protection for circuits rated at 16A. The circuit-breaker is suitable for both protection and isolation of electrical installations, making it an essential component in modern electrical distribution systems.
This device incorporates advanced safety features including IP20 protection against solid bodies larger than 12.5mm (fingerproof), energy limitation class 3 according to IEC 60898-1 standard, and compatibility with Legrand DX3 auxiliaries and RCD add-on modules. The MCB can be supplied by copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar, offering flexible installation options. Built with two DIN rail clamps for independent removal and featuring a label holder for clear circuit identification, this device combines functionality with user-friendly design.
The Legrand DX3 MCB operates reliably across ambient temperatures from -25°C to +70°C and complies with substance-restriction requirements while being designed through an environmentally conscious process. With halogen-free materials and a carbon footprint of 1.827 kg CO2 equivalent during the manufacturing phase, this circuit-breaker represents a commitment to both safety and environmental sustainability in electrical installations.
Key Features
- Thermal magnetic protection with B-curve tripping characteristic (3In to 5In) for reliable circuit protection
- 10,000A breaking capacity at 230V and 16,000A at 400V for enhanced safety performance
- IP20 fingerproof protection against solid bodies larger than 12.5mm per IEC/EN 60529 standard
- Energy limitation class 3 per IEC 60898-1 standard for maximum let-through energy limitation
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and multiple busbar supply options
- Dual DIN rail clamps enabling independent removal with busbar still in place
- Clear circuit identification with label holder and On/Off status indication
- Halogen-free materials with low environmental impact (1.827 kg CO2 equivalent manufacturing footprint)
- Flexible supply options: copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar
- Wide operating temperature range from -25°C to +70°C for diverse installation environments
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit-Breaker (MCB) |
| Number of Poles | 2 poles (2P) |
| Rated Current | 16 Amperes (A) |
| Release Characteristic | B curve (tripping threshold between 3In and 5In) |
| Breaking Capacity at 230V | 10,000A (10 kA) per IEC 60898-1 |
| Breaking Capacity at 400V | 10,000A (10 kA) per IEC 60898-1 |
| Ultimate Breaking Capacity at 230V | 32,000A (32 kA) per IEC 60947-2 |
| Ultimate Breaking Capacity at 400V | 16,000A (16 kA) per IEC 60947-2 |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4 kV |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 (fingerproof against solid bodies >12.5mm) |
| Impact Strength Rating | IK02 |
| Width in Modular Spacings | 2 modules |
| Width | 35.4 mm |
| Height | 94.8 mm |
| Depth | 77.8 mm |
| Built-in Depth | 44 mm |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Connectable Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Connection Type | Screwed Terminal |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Pollution Degree | 2 |
| Mounting Method | DIN Rail |
| Flush-mounted Installation | Yes |
| Supply Direction | Top or Bottom |
| Color | Grey (RAL 7035) |
| Halogen Free | Yes |
| Product Reference | 408942 |
| EAN Code | 3245064089425 |
| Brand | Legrand |
| Product Line | DX³ |
| Carbon Footprint (Manufacturing Phase) | 1.827 kg CO2 equivalent |
| Neutral Conductor Switching | No |
| Additional Equipment Possible | Yes (DX3 auxiliaries, RCD add-on modules) |
| Explosion-proof | No |
| Label Space | Yes |
