Description

Shop Legrand DX3 MCB 2 Pole 13A Curve C Circuit Breaker | 409201 In Iraq Best Prices

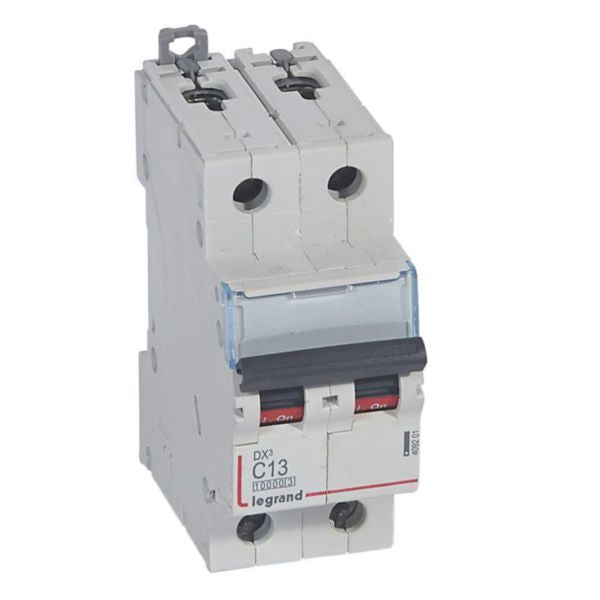

Legrand DX3 2-pole 13A C-curve thermal magnetic circuit breaker with 16kA breaking capacity, IP20 finger-safe protection, and DIN rail mounting for residential and commercial electrical installations.

The Legrand DX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit-breaker specifically designed to protect wiring installations against overloads and short-circuits. This 2-pole device features a 13A rated current with C curve release characteristic and delivers exceptional breaking capacity up to 16kA at 230V, ensuring reliable fault clearance in residential and small commercial applications. The device incorporates IP20 finger-safe design protection, meeting IEC/EN 60529 standards, which prevents accidental contact with live parts larger than 12.5mm. With a built-in depth of 44mm and width of 35.4mm (2 modular spacings), this circuit breaker is optimized for DIN rail mounting in distribution panels and switchboards. It features dual DIN rail clamps allowing independent removal while the prong busbar remains in place. The MCB can be supplied by copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side). The device includes a convenient label holder for circuit identification and clear ON/OFF indication printed on the handle with red and green backgrounds. The DX3 MCB is equipped with current limiting class 3, providing maximum energy limitation according to IEC 60898-1 standards. It can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories. The tripping threshold for short-circuit protection is between 65A and 130A (C curve between 5In and 10In). Operating across temperatures from -25°C to +70°C, with rated voltage of 400V and insulation voltage of 500V, this device complies with all substance-restriction requirements and has been designed through an environmentally conscious process with halogen-free materials.

Key Features

Thermal magnetic protection with 13A rated current and C-curve release characteristic for reliable fault detection
High breaking capacity of 16kA at 230V and 10kA at 400V according to IEC 60898-1 standard
IP20 finger-safe design prevents accidental contact with live parts larger than 12.5mm
Current limiting class 3 for maximum energy limitation and enhanced safety
Dual DIN rail clamps allowing independent removal without disturbing the power supply
Compatible with Legrand DX3 auxiliaries, RCD add-on modules and various accessories
Convenient label holder for clear circuit identification and ON/OFF indication
Halogen-free materials with environmentally conscious design
Connectable to copper cables (1.5-35mm² solid-core, 1.5-25mm² multi-wired) or various busbar types
Operating temperature range from -25°C to +70°C with rated voltage 400V

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Number of Poles	2 poles (2P)
Rated Current	13 Amperes (A)
Release Characteristic	C curve (5In to 10In)
Breaking Capacity at 230V	16 kA (Icn according to EN 60898)
Breaking Capacity at 400V	10 kA (Icn according to EN 60898)
Ultimate Breaking Capacity at 230V	32 kA (Icu according to IEC 60947-2)
Ultimate Breaking Capacity at 400V	16 kA (Icu according to IEC 60947-2)
Rated Voltage	400 V AC
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Frequency	50-60 Hz
Current Limiting Class	Class 3
Degree of Protection	IP20 (finger-safe)
Degree of Impact Strength	IK02
Built-in Depth	44 mm
Width	35.4 mm (2 modular spacings)
Height	94.8 mm
Total Depth	77.8 mm
Colour	Grey (RAL 7035)
Connection Type	Screwed terminal
Solid-core Conductor Cross Section	1.5-35 mm²
Multi-wired Conductor Cross Section	1.5-25 mm²
Mounting Method	DIN rail
Electric Supply Direction	Top or bottom
Pollution Degree	2
Ambient Temperature Operating Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Concurrently Switching Neutral Conductor	No
Flush-mounted Installation	Yes
Additional Equipment Possible	Yes
Halogen Free	Yes
Explosion-proof	No
Label Space/Information Surface	Yes
Product Carbon Footprint (Manufacturing)	1.824 kg CO2 eq.
Reference Number	409201
EAN Code	3245064092012
Tripping Threshold Short-Circuit	65A to 130A (C curve 5In to 10In)
Supply Method Options	Copper cable, prong busbar (top/bottom), fork busbar (bottom), Legrand HX3 plug busbar (top)
Auxiliary Equipment Compatible	Legrand DX3 auxiliaries, RCD add-on modules, various accessories

Order Legrand DX3 MCB 2 Pole 13A Curve C Circuit Breaker | 409201 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
