Shop Legrand DX3 MCB 2 Pole 10A Curve C Circuit Breaker | 410147 In Iraq Best Prices

Legrand DX3 modular 2-pole circuit breaker with 10A rating and C-curve protection, 50kA breaking capacity, IP20 finger-safe terminals, and full compatibility with DX3 auxiliaries.

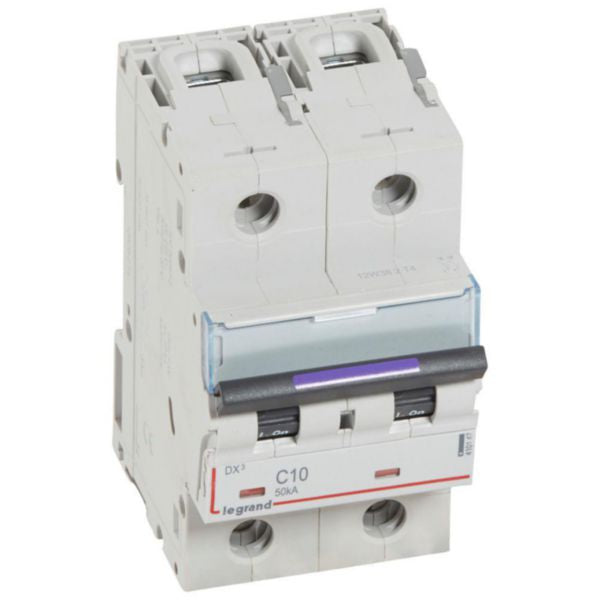

The Legrand DX3 MCB 2 Pole 10A Curve C is a modular thermal-magnetic circuit breaker designed for control, protection and isolation of electrical circuits in residential and small commercial applications. This device features a 50kA breaking capacity at 400V, providing reliable protection against short circuits and overloads. The C curve tripping characteristic ensures optimal protection with a tripping threshold between 50A and 100A (5 In to 10 In), making it suitable for circuits with moderate inrush currents. This circuit breaker offers exceptional safety features including IP20 finger-safe terminals that comply with IEC/EN 60529 standards, protecting against solid bodies larger than 12.5mm. The device features a red/green mechanical indicator for clear status display (open/closed) and includes a label holder for convenient circuit identification. Built-in depth of 47mm allows for easy integration into standard DIN rail installations with a width of 3 modular spacings. The DX3 MCB is fully compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories, enabling flexible system configurations. It operates across a frequency range of 50-60Hz with rated voltage of 400V and insulation voltage of 500V. The device is halogen-free and designed with environmental consciousness, featuring a carbon footprint of 3.341 kg CO2 equivalent during the manufacturing phase. Installation should be performed by qualified electricians in compliance with local electrical codes.

Key Features

50kA breaking capacity at 400V providing superior short-circuit protection
C-curve tripping characteristic with 5In to 10In threshold for moderate inrush current applications
IP20 finger-safe terminals protecting against solid bodies larger than 12.5mm per IEC/EN 60529
Red/green mechanical indicator for clear open/closed status display with label holder
Full compatibility with Legrand DX3 auxiliaries, RCD modules and accessories for flexible configurations
DIN rail mounting with 3 modular spacing width for standard installation
Halogen-free design with 3.341 kg CO2 equivalent carbon footprint
Operates at 50-60Hz frequency with 400V rated voltage and 500V insulation voltage

Technical Specifications

Specification	Value
Product Type	Modular Thermal-Magnetic Circuit Breaker
Number of Poles	2 poles (bipolar)
Rated Current	10 A
Rated Voltage	400 V AC
Insulation Voltage	500 V
Impulse Withstand Voltage	6 kV
Breaking Capacity at 400V	50 kA (Icu)
Breaking Capacity at 230V	100 kA (Icu)
Trip Characteristic	C curve (5In to 10In threshold)
Frequency Range	50-60 Hz
Built-in Depth	47 mm
Overall Width	53.4 mm
Overall Height	127.5 mm
Overall Depth	79.2 mm
Modular Width	3 modular spacings
Degree of Protection	IP20 finger-safe
Pollution Degree	3
Impact Strength	IK02
Operating Temperature Range	-25 to +70°C
Storage Temperature Range	-40 to +70°C
Connectable Conductor Cross-Section (Solid)	1.5-50 mm²
Connectable Conductor Cross-Section (Multi-wire)	1.5-35 mm²
Connection Type	Screwed terminal
Supply Direction	Top or bottom
Color	Grey (RAL 7035)
Mounting Method	DIN rail
Halogen Free	Yes
Carbon Footprint (Manufacturing)	3.341 kg CO2 equivalent
Reference Number	410147
EAN Code	3245064101479

Order Legrand DX3 MCB 2 Pole 10A Curve C Circuit Breaker | 410147 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
