Shop Legrand DX3 MCB 2 Pole 10A Circuit Breaker D-Curve | 410199 In Iraq Best Prices
Legrand DX3 modular bipolar thermal-magnetic circuit breaker, 10A D-curve, 50kA breaking capacity at 400V, IP20 finger-safe terminals, ideal for residential and commercial electrical protection.

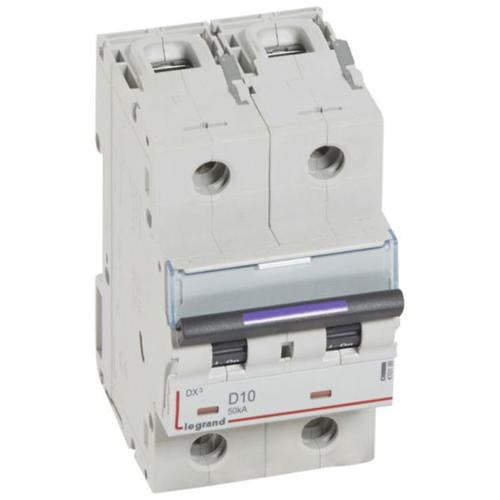

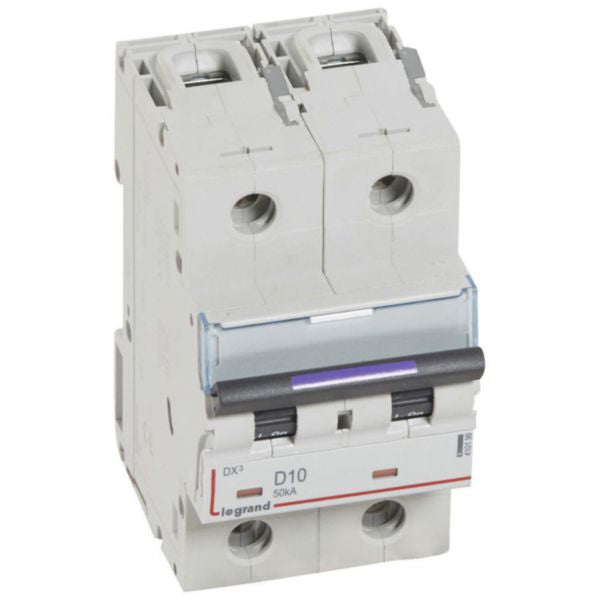

The Legrand DX3 MCB is a modular bipolar thermal-magnetic circuit breaker designed for control, protection, and isolation of electrical circuits in residential and small commercial applications. This 2-pole breaker features a 10A rated current with D-curve characteristic, providing reliable protection against overloads and short circuits. With a breaking capacity of 50kA at 400V and 100kA at 230V according to IEC 60947-2 standards, this device ensures maximum safety and performance. The breaker is equipped with IP20 finger-safe terminals and a red/green mechanical indicator displaying the open or closed status of contacts.
This DX3 circuit breaker is built with a depth of 47mm and occupies 3 modular spacings on a DIN rail, making it ideal for compact panel installations. The device features a label holder for clear circuit identification and operates reliably across a wide ambient temperature range of -25°C to +70°C. Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, this breaker offers flexibility for custom electrical configurations. The halogen-free construction and environmentally conscious design comply with substance-restriction requirements, making it an eco-friendly choice for modern electrical installations.
The DX3 MCB is suitable for top or bottom electrical supply connections and accommodates both solid-core (1.5-50mm²) and multi-wired (1.5-35mm²) conductors. With its robust construction, thermal-magnetic tripping mechanism, and comprehensive protection features, this circuit breaker delivers dependable performance for demanding electrical applications. The device complies with all relevant safety standards and should be installed by qualified electricians following proper installation guidelines.
Key Features
- Thermal-magnetic protection with D-curve characteristic for reliable circuit protection
- Breaking capacity of 50kA at 400V and 100kA at 230V per IEC 60947-2 standards
- IP20 finger-safe terminals preventing accidental contact with live parts
- Red/green mechanical indicator for clear open/closed status display
- Compatible with Legrand DX3 auxiliaries, RCD modules, and comprehensive accessories
- Halogen-free construction with environmentally conscious design
- Wide operating temperature range from -25°C to +70°C
- Accepts both solid-core and multi-wired conductors for flexible installation
- Built-in label holder for convenient circuit identification
- Compact 47mm depth design suitable for space-constrained panel installations
Technical Specifications
| Specification |
Value |
| Product Type | Modular Bipolar Thermal-Magnetic Circuit Breaker |
| Number of Poles | 2 poles (2 protected poles) |
| Rated Current | 10 Amperes |
| Tripping Characteristic | D-curve (100A to 140A tripping threshold for short circuits) |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 6 kV |
| Breaking Capacity at 400V | 50 kA (IEC 60947-2) |
| Breaking Capacity at 230V | 100 kA (IEC 60947-2) |
| Frequency | 50-60 Hz |
| Degree of Protection | IP20 (Finger-safe terminals) |
| Degree of Impact Strength | IK02 |
| Built-in Depth | 47 mm |
| Width | 53.4 mm |
| Height | 127.5 mm |
| Overall Depth | 79.2 mm |
| Modular Spacings | 3 modules |
| Mounting Method | DIN rail mounting |
| Connection Type | Screwed terminal, Cable connection |
| Supply Direction | Top or bottom electrical supply |
| Solid-core Conductor Range | 1.5-50 mm² |
| Multi-wired Conductor Range | 1.5-35 mm² |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Nominal Voltage Range | 360-440V |
| Pollution Degree | 3 |
| Color | Grey (RAL 7035) |
| Halogen Free | Yes |
| Flush-mounted Installation | Yes |
| Additional Equipment Possible | Yes - DX3 auxiliaries and RCD modules |
| Carbon Footprint (Manufacturing) | 3.497 kg CO₂ eq. |
| Reference Number | 410199 |
| EAN Code | 3245064101998 |
| Brand | Legrand |
| Series | DX³ |
