Legrand DX3 thermal magnetic circuit-breaker with 4A rating, C curve, 6000A breaking capacity, IP20 protection, and DIN rail mounting for residential electrical installations.

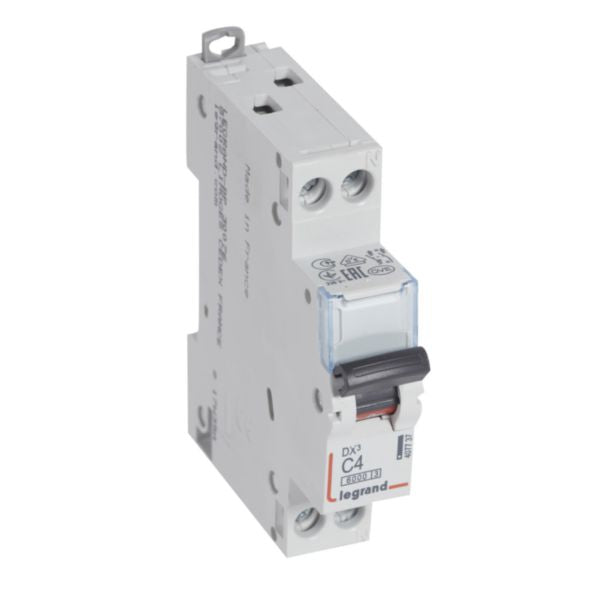

The Legrand DX3 MCB 6000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a rated current of 4A and C curve characteristic, this single pole plus neutral device offers a 6000A breaking capacity at 230V. The breaker features IP20 finger-safe protection, preventing accidental contact with live parts larger than 12.5mm, and is mounted on DIN rails for easy installation and removal. The device incorporates energy limitation class 3 according to IEC 60898-1 standard, ensuring maximum protection and minimal let-through energy during fault conditions.
This MCB is equipped with two DIN rail clamps (top and bottom) allowing independent removal while the prong busbar remains in place. The handle includes ON/OFF indication printed on red and green backgrounds for easy status identification. A label holder is integrated for clear circuit identification. The device can be supplied by copper cable or prong busbar from either the top or bottom side, providing flexible installation options. It is compatible with Legrand DX3 auxiliaries and accessories, making it an integral part of a comprehensive electrical protection system.
The Legrand DX3 MCB complies with IEC 60898-1 standard for household installations and features substance-restriction requirements compliance with environmentally conscious design. Operating temperature range is -25°C to +70°C, with storage capability from -40°C to +70°C. The device supports connectable conductor cross-sections from 0.75mm² to 16mm² for solid-core conductors and 0.75mm² to 10mm² for multi-wired conductors, accommodating various installation requirements.
Key Features
- 6000A breaking capacity according to IEC 60898-1 standard for household installations
- C curve tripping characteristic with short-circuit threshold between 20A and 40A (5-10 In)
- IP20 finger-safe protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for maximum protection and minimal let-through energy
- DIN rail mounting with independent top and bottom clamps for flexible installation
- Compatible with Legrand DX3 auxiliaries and accessories
- Label holder for clear circuit identification
- ON/OFF indication on handle with red and green backgrounds
- Supports copper cable or prong busbar supply from top or bottom
- Environmentally conscious design with substance-restriction compliance
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit-Breaker (MCB) |
| Rated Current | 4A |
| Release Characteristic | C curve |
| Number of Poles | 2 (1 pole + neutral) |
| Rated Voltage | 230V AC |
| Rated Insulation Voltage (Ui) | 250V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Breaking Capacity (Icn) | 6 kA at 230V according to EN 60898 |
| Short-circuit Breaking Capacity (Icu) | 10 kA at 230V according to IEC 60947-2 |
| Current Limiting Class | 3 |
| Degree of Protection | IP20 |
| Degree of Impact Strength | IK02 |
| Mounting Method | DIN rail |
| Width | 17.8 mm (1 modular spacing) |
| Height | 94.8 mm |
| Depth | 77.6 mm (built-in 44 mm) |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Connectable Conductor Cross-section (Solid-core) | 0.75 mm² to 16 mm² |
| Connectable Conductor Cross-section (Multi-wired) | 0.75 mm² to 10 mm² |
| Connection Type | Screwed terminal, Busbar and cable |
| Electric Supply Direction | Top or bottom |
| Frequency | 50-60 Hz |
| Pollution Degree | 2 |
| Nominal Voltage Range | 210-250V |
| Colour | Grey |
| RAL Number | 7035 |
| Halogen Free | Yes |
| Standard Compliance | IEC 60898-1, IEC 60947-2 |
| Reference Number | 407737 |
| EAN Code | 3245064077378 |
| Carbon Footprint (Manufacturing) | 0.724 kg CO₂ eq. |
