Shop Legrand DX3 MCB 1P+N 32A Curve B 6000A Circuit Breaker | 407478 In Iraq Best Prices

Thermal magnetic circuit-breaker with 32A B-curve, 6000A breaking capacity, 230V AC rating, IP20 protection, and energy limitation class 3 for household and small commercial installations.

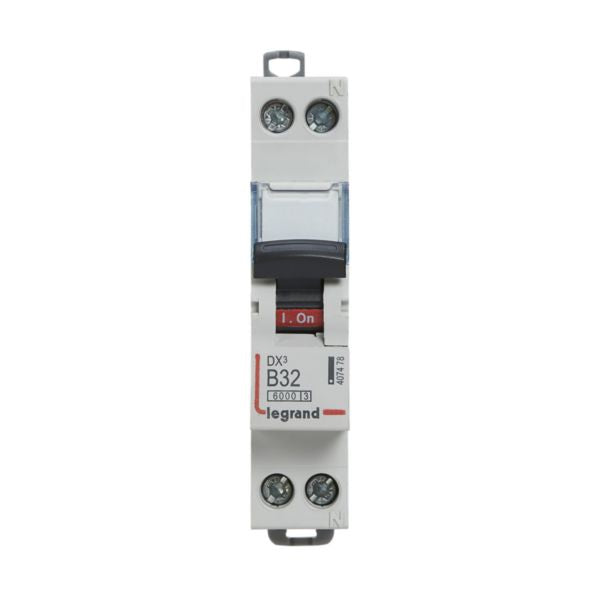

The Legrand DX3 MCB 6000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This 1 pole + neutral configuration operates at 230V AC with a rated current of 32A and B-curve tripping characteristic. The device features a breaking capacity of 6000A according to IEC 60898-1 standard, making it ideal for household and small commercial installations. With IP20 finger-safe protection and energy limitation class 3, this MCB ensures maximum safety in electrical systems. This circuit-breaker can be supplied either by copper cable or prong busbar from the top or bottom side, offering flexible installation options. The device is equipped with DIN rail clamps on both top and bottom, allowing independent removal while the busbar remains in place. The built-in depth of 44mm and modular design (1 module width) make it compatible with standard DIN rail installations. Terminal marking indication and a label holder provide clear circuit identification, while ON/OFF indication on the handle (red and green backgrounds) ensures easy status recognition. The DX3 MCB complies with all substance-restriction requirements and has been designed with environmental consciousness. It operates reliably in ambient temperatures from -25°C to +70°C and supports both solid-core (0.75-16mm²) and multi-wired (0.75-10mm²) conductor connections. With rated impulse withstand voltage of 4kV and pollution degree 2 rating, this device provides comprehensive protection for modern electrical installations.

Key Features

Breaking capacity of 6000A according to IEC 60898-1 standard for household installations
B-curve tripping characteristic with short-circuit threshold between 96A and 160A (3In to 5In)
IP20 finger-safe protection against solid bodies larger than 12.5mm
Energy limitation class 3 for maximum protection of electrical systems
Flexible supply options via copper cable or prong busbar from top or bottom
Independent removal capability with DIN rail clamps on top and bottom
Clear circuit identification with label holder and ON/OFF indication
Compatible with Legrand DX3 auxiliaries and accessories
Operates reliably in ambient temperatures from -25°C to +70°C
Halogen-free and environmentally conscious design

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit Breaker (MCB)
Rated Current	32A
Release Characteristic	B-Curve (3In to 5In)
Number of Poles	1 Pole + Neutral (2 poles total)
Rated Voltage	230V AC
Rated Insulation Voltage	250V
Rated Impulse Withstand Voltage	4kV
Breaking Capacity (Icn)	6kA at 230V AC (IEC 60898-1)
Breaking Capacity (Icu)	10kA at 230V AC (IEC 60947-2)
Current Limiting Class	3
Frequency	50-60Hz
Degree of Protection (IP)	IP20
Degree of Impact Strength	IK02
Built-in Depth	44mm
Width	17.8mm (1 modular spacing)
Height	94.8mm
Total Depth	77.6mm
Connectable Conductor Cross Section (Solid-core)	0.75-16mm²
Connectable Conductor Cross Section (Multi-wired)	0.75-10mm²
Connection Type	Screwed terminal, Busbar and cable
Electric Supplying Direction	By the top or bottom
Ambient Temperature (Operating)	-25°C to +70°C
Storage Temperature	-40°C to +70°C
Nominal Voltage Range	210-250V
Pollution Degree	2
Mounting Method	DIN Rail
Colour	Grey (RAL 7035)
Halogen Free	Yes
Flush-mounted Installation	Yes
Concurrently Switching Neutral Conductor	Yes
Terminal Marking Indication	Yes
Label Space/Information Surface	Yes
Additional Equipment Possible	Yes
Explosion-proof	No
Reference Number	407478
EAN Code	3245064074780
Carbon Footprint (Manufacturing Phase)	0.755 kg CO2 eq.

Order Legrand DX3 MCB 1P+N 32A Curve B 6000A Circuit Breaker | 407478 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
