Shop Legrand DX3 MCB 1P+N 2A Curve C 6kA Circuit Breaker | 407735 In Iraq Best Prices

Legrand DX3 thermal magnetic circuit breaker with 2A C curve rating, 6kA breaking capacity, IP20 fingerproof protection, and DIN rail mounting for residential and commercial electrical installations.

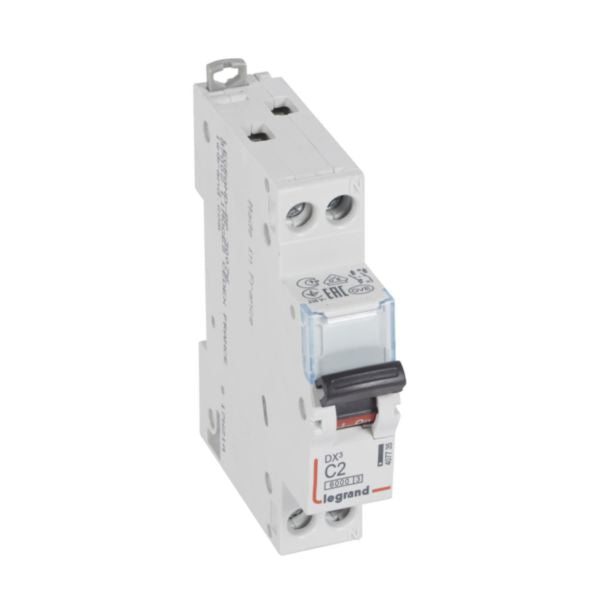

The Legrand DX3 MCB 407735 is a thermal magnetic circuit breaker designed to protect residential and small commercial wiring installations against overloads and short-circuits. With a rated current of 2A and C curve characteristic, this single pole plus neutral device provides reliable protection with a breaking capacity of 6000A at 230V. The breaker features IP20 fingerproof design for enhanced safety, preventing contact with live parts larger than 12.5mm. Its energy limitation class 3 rating ensures maximum limitation of let-through energy during fault conditions. This circuit breaker is engineered for flush-mounted installation on DIN rail systems and can be supplied via copper cable or prong busbar from either top or bottom connection points. The device features dual DIN rail clamps allowing independent removal while the busbar remains energized, making maintenance and replacement convenient. With a built-in label holder for circuit identification and clear on/off indication on the handle with red and green backgrounds, this MCB offers excellent visibility of operational status. The DX3 series is fully compatible with Legrand DX3 auxiliaries and accessories, allowing for system expansion and customization. Operating across a frequency range of 50-60 Hz with nominal voltage between 210-250V, this breaker is suitable for various electrical installations. The halogen-free construction and environmentally conscious design align with modern sustainability standards, while the device complies with all substance-restriction requirements and relevant safety standards including IEC 60898-1 and IEC/EN 60529.

Key Features

Thermal magnetic protection with 2A C curve tripping characteristic between 10-20A for short-circuits
6000A breaking capacity at 230V according to IEC 60898-1 standard for household installations
IP20 fingerproof design protecting against solid bodies larger than 12.5mm for enhanced safety
Energy limitation class 3 providing maximum limitation of let-through energy during fault conditions
Dual DIN rail clamps allowing independent removal while busbar remains energized
Compatible with Legrand DX3 auxiliaries and accessories for system customization
Label holder with clear on/off indication using red and green backgrounds for easy status identification
Connectable with copper cable or prong busbar from top or bottom connection points
Halogen-free construction with environmentally conscious design
Operating frequency range 50-60 Hz with nominal voltage 210-250V

Technical Specifications

Specification	Value
Product Model	DX3 MCB
Reference Number	407735
EAN Code	3245064077354
Rated Current	2 A
Rated Voltage	230 V AC
Insulation Voltage	250 V
Impulse Withstand Voltage	4 kV
Breaking Capacity (Icn)	6 kA at 230V according to EN 60898
Breaking Capacity (Icu)	10 kA at 230V according to IEC 60947-2
Release Characteristic	C Curve
Tripping Threshold	Between 10A and 20A (5 In to 10 In)
Number of Poles	2 (1 pole + neutral)
Protected Poles	1
Current Limiting Class	3
Degree of Protection	IP20 (Fingerproof)
Impact Strength Rating	IK02
Width (Modular Spacing)	1 module
Width Dimension	17.8 mm
Height Dimension	94.8 mm
Depth Dimension	77.6 mm (Built-in)
Built-in Depth	44 mm
Operating Temperature Range	-25 to +70 °C
Storage Temperature Range	-40 to +70 °C
Frequency Range	50-60 Hz
Nominal Voltage Range	210-250 V
Connectable Conductor Cross Section (Solid)	0.75-16 mm²
Connectable Conductor Cross Section (Multi-wired)	0.75-10 mm²
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	Top or bottom
Installation Method	DIN rail
Flush-mounted Installation	Yes
Concurrently Switching Neutral	Yes
Pollution Degree	2
Additional Equipment Possible	Yes
Color	Grey
RAL Number	7035
Halogen Free	Yes
Explosion-proof	No
Terminal Marking Indication	Yes
Label Space/Information Surface	Yes
Carbon Footprint (Manufacturing)	0.730 kg CO₂ eq.
Standards Compliance	IEC 60898-1, IEC/EN 60529, IEC 60947-2

Order Legrand DX3 MCB 1P+N 2A Curve C 6kA Circuit Breaker | 407735 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
