Legrand DX3 thermal magnetic circuit-breaker with 1-pole, 4A B-curve rating, 10kA breaking capacity, IP20 protection, and DIN rail mounting for residential and commercial electrical installations.

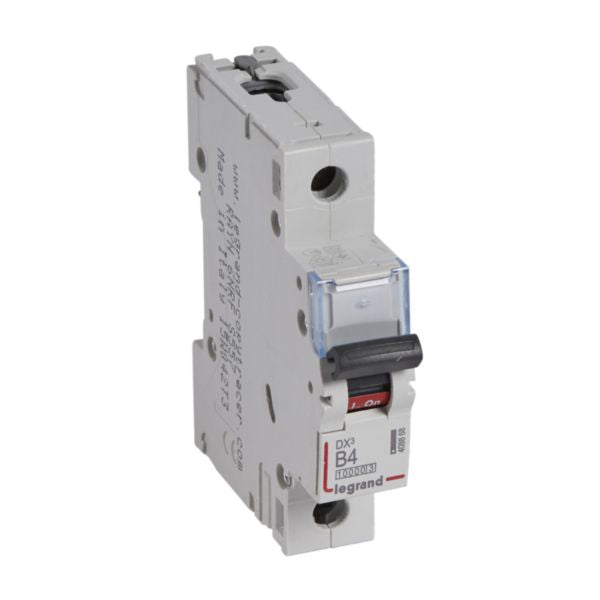

The Legrand DX3 MCB 10000A is a thermal magnetic circuit-breaker designed to protect and isolate wiring installations against overloads and short-circuits. This 1-pole device features a 4A B-curve rating with a 10kA breaking capacity at 230V, providing reliable protection for residential and small commercial electrical systems. The circuit-breaker is IP20 finger-safe protected, meeting IEC/EN 60529 standards, and offers energy limitation class 3 according to IEC 60898-1 standard. It features dual DIN rail clamps allowing independent removal while the busbar remains in place, and includes a convenient label holder for circuit identification. The device can be supplied by copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar, and is compatible with DX3 auxiliaries and RCD add-on modules.
This MCB is engineered with advanced thermal-magnetic protection characteristics, featuring a B-curve tripping threshold between 3 In and 5 In for short-circuit protection. The release characteristic provides optimal protection for standard residential wiring installations. With its compact 1-module width design and 44mm built-in depth, it integrates seamlessly into DX3 distribution panels. The device includes ON/OFF indication printed on the handle with red and green backgrounds for easy status identification. Built from halogen-free materials and designed with environmental consciousness, this circuit-breaker complies with all substance-restriction requirements and RoHS directives.
The Legrand DX3 MCB is suitable for connecting solid-core conductors between 1.5-35mm² or multi-wired conductors between 1.5-25mm². Operating temperature range extends from -25°C to 70°C, with storage capability from -40°C to 70°C. The device features a screwed terminal connection type and is rated for 50-60 Hz frequency operation. With its proven reliability, comprehensive certifications including VDE and CB-IT standards, and compatibility with Legrand's extensive DX3 accessory range, this circuit-breaker represents a complete protection solution for modern electrical installations.
Key Features
- Thermal magnetic protection with B-curve release characteristic (3-5 In tripping threshold)
- 10kA breaking capacity at 230V with IEC 60898-1 standard compliance
- IP20 finger-safe protection (solid bodies larger than 12.5mm blocked)
- Energy limitation class 3 for maximum let-through energy reduction
- Compatible with DX3 auxiliaries, RCD modules, and Legrand accessories
- Dual DIN rail clamps for independent removal capability
- Label holder for clear circuit identification with ON/OFF indication
- Halogen-free and environmentally conscious design
- Accepts copper cable, prong busbar, fork busbar, or HX3 plug busbar supply
- Compact 1-module width (17.8mm) with 44mm built-in depth
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit-Breaker (MCB) |
| Number of Poles | 1 pole |
| Rated Current | 4 A |
| Release Characteristic | B-curve (3-5 In) |
| Rated Voltage | 230 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity (Icn) | 10 kA at 230V (IEC 60898-1) |
| Breaking Capacity (Icu) | 16 kA at 230V (IEC 60947-2) |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 (finger-safe) |
| Impact Strength Rating | IK02 |
| Width | 17.8 mm (1-module width) |
| Height | 94.8 mm |
| Depth | 77.8 mm (44 mm built-in) |
| Connection Type | Screwed terminal |
| Connectable Conductor - Solid Core | 1.5-35 mm² |
| Connectable Conductor - Multi-wired | 1.5-25 mm² |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Frequency | 50-60 Hz |
| Pollution Degree | 2 |
| Supply Direction | Top or bottom |
| Colour | Grey (RAL 7035) |
| Material | Halogen-free |
| Mounting Method | DIN rail (dual clamps) |
| Mounting Position | Flush-mounted installation capable |
| Reference Number | 408868 |
| EAN Code | 3245064088688 |
| Carbon Footprint (Manufacturing) | 0.934 kg CO2 eq. |
| Standards Compliance | IEC 60898-1, IEC 60947-2, IEC/EN 60529, RoHS |
| Certifications | VDE, CB-IT, LOVAG-IT |
