Single-pole thermal magnetic circuit breaker with 16A rated current, D-curve characteristic, and 10kA breaking capacity for residential and small commercial installations

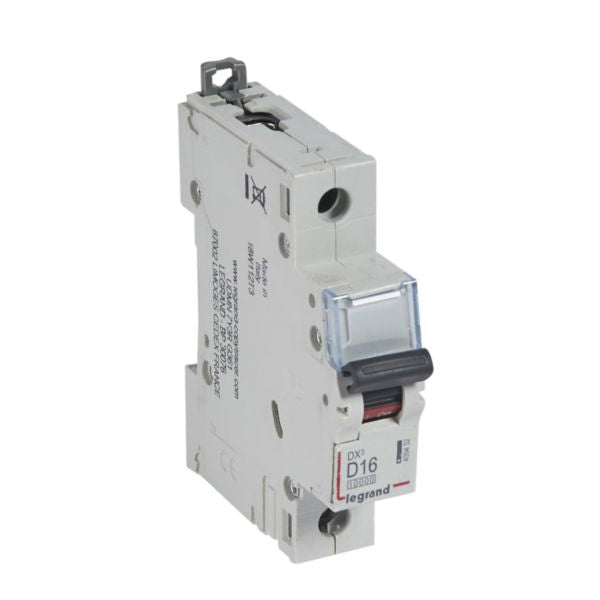

The Legrand DX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a breaking capacity of 10kA at 230/400V AC networks, this single-pole device features a D-curve release characteristic suitable for circuits with moderate inrush currents. Reference number 409432, the MCB can be supplied via copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar connections. The device operates at rated current of 16A with rated voltage of 230V and rated impulse withstand voltage of 4kV, making it ideal for residential and small commercial applications.
This circuit breaker offers advanced protection features including a breaking capacity of 10kA according to IEC 60898-1 standard for household installations, with a tripping threshold in case of short-circuit between 160A and 224A (D curve between 10In and 14In). The MCB is protected against solid bodies larger than 12.5mm (fingerproof) with IP20 protection rating according to IEC/EN 60529 standard. It can be equipped with Legrand DX3 auxiliaries, RCD add-on modules and accessories, and can also be connected to aluminium cable with terminal accessory number 4 063 10.
The device features two DIN rail clamps (one top side and one bottom side) for independent removal while the prong busbar remains in place. It includes a label holder for clear circuit identification and ON/OFF indication printed on the handle with red and green backgrounds for easy status identification. Built with halogen-free materials and designed with environmental consciousness, this product complies with substance-restriction requirements. The compact design with dimensions of 17.8mm width, 94.8mm height, and 77.8mm depth fits standard 1-module spacing on DIN rails.
Key Features
- Breaking capacity of 10kA according to IEC 60898-1 standard for household installations
- D-curve release characteristic with tripping threshold between 160A and 224A for moderate inrush currents
- IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
- Dual DIN rail clamps for independent removal without disturbing prong busbar supply
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and various connection types
- Label holder with ON/OFF indication on handle with red and green backgrounds
- Halogen-free construction with environmentally conscious design
- Compact 1-module spacing design (17.8mm width) for space-efficient installation
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Brand | Legrand |
| Series | DX3 |
| Reference Number | 409432 |
| EAN Code | 3414970434012 |
| Number of Poles | 1 pole |
| Rated Current | 16A |
| Release Characteristic | D curve |
| Rated Voltage | 230V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4kV |
| Breaking Capacity (Icn) | 10kA at 230V per IEC 60898 |
| Breaking Capacity (Icu) | 16kA at 230V per IEC 60947-2 |
| Frequency | 50-60Hz |
| Voltage Type | AC |
| Degree of Protection | IP20 |
| Degree of Impact Strength | IK02 |
| Width | 17.8mm (1 module spacing) |
| Height | 94.8mm |
| Depth | 77.8mm |
| Built-in Depth | 44mm |
| Connection Type | Screwed terminal |
| Connectable Conductor Cross Section (Solid) | 1.5-35mm² |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25mm² |
| Colour | Grey |
| RAL Number | 7035 |
| Mounting Method | DIN rail |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Pollution Degree | 2 |
| Halogen Free | Yes |
| Supply Direction | By top or bottom |
| Tripping Threshold | 160A to 224A (D curve 10In to 14In) |
| Carbon Footprint (Manufacturing) | 0.821 kg CO₂ eq. |
| Flush-mounted Installation | Yes |
| Additional Equipment Possible | Yes |
| Label Space | Yes |
