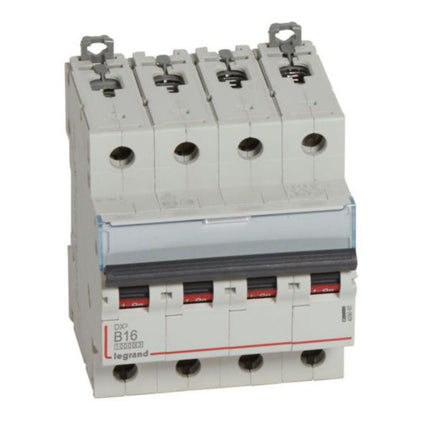

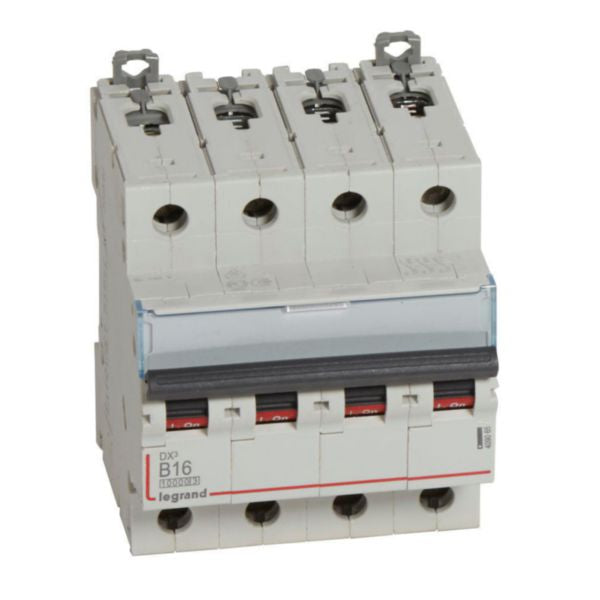

| Product Type | Thermal Magnetic Circuit-Breaker (MCB) |
| Number of Poles | 4 poles (total and protected) |
| Rated Current | 16 Amperes |
| Release Characteristic | B-curve (3-5 times rated current) |
| Breaking Capacity at 400V | 10,000A (Icn according to EN 60898) |
| Breaking Capacity at 230V | 16,000A (Icn according to EN 60898) |
| Ultimate Breaking Capacity at 400V | 16,000A (Icu according to IEC 60947-2) |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4,000V (4 kV) |
| Voltage Type | AC (Alternating Current) |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | Class 3 (maximum energy limitation) |
| Degree of Protection | IP20 (fingerproof against solid bodies > 12.5mm) |
| Degree of Impact Strength | IK02 |
| Pollution Degree | 2 |
| Mounting Method | DIN rail (35mm standard rail) |
| Width in Modular Spacings | 4 modules (70.8 mm) |
| Height | 94.8 mm |
| Depth | 77.8 mm (built-in depth 44 mm) |
| Connection Type | Screwed terminal |
| Connectable Conductor Cross Section (Solid) | 1.5-35 mm² |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Electric Supplying Direction | By the top or bottom |
| Concurrently Switching Neutral Conductor | Yes |
| Flush-mounted Installation | Yes |
| Additional Equipment Possible | Yes (Legrand DX3 auxiliaries and RCD modules) |
| Colour | Grey (RAL 7035) |
| Halogen Free | Yes |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Explosion-proof | No |
| Carbon Footprint (Manufacturing) | 3.671 kg CO₂ eq. |
| Reference Number | 409065 |
| EAN Code | 3245064090650 |
