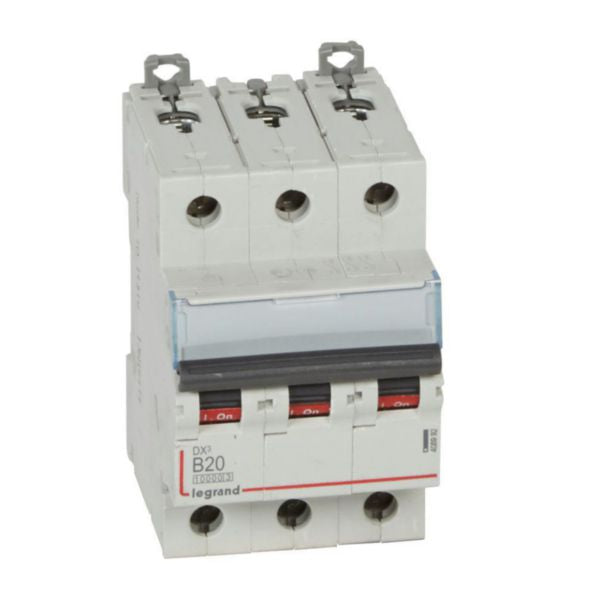

Shop Legrand DX3 MCB 3 Pole 20A Circuit Breaker B-Curve | 408992 In Iraq Best Prices

Professional-grade thermal magnetic circuit breaker with 10kA breaking capacity, 20A B-curve protection, and advanced safety features for reliable wiring installation protection.

The Legrand DX3 MCB is a thermal magnetic circuit breaker designed to provide comprehensive protection for wiring installations against overloads and short circuits. With a breaking capacity of 10kA at 400V, this 3-pole device delivers reliable performance with a 20A B-curve characteristic, offering superior energy limitation in class 3. The device features DIN-rail mounting for easy installation and can be supplied via copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar connections. This circuit breaker is engineered with advanced safety features including IP20 protection against solid bodies larger than 12.5mm, making it fingerproof and compliant with IEC/EN 60529 standards. The unit supports a wide range of conductor cross-sections from 1.5mm² to 35mm² for solid-core wiring and 1.5mm² to 25mm² for multi-wired conductors. Its modular design allows for independent removal even when the busbar is energized, thanks to dual DIN rail clamps positioned on both top and bottom sides. The product incorporates Legrand's environmentally conscious design principles and is halogen-free, complying with RoHS and REACH regulations. It features a convenient label holder for circuit identification and clear ON/OFF indication printed on the handle with red and green backgrounds. The device operates reliably across a wide temperature range from -25°C to +70°C and maintains its integrity with a carbon footprint of 2.980 kg CO₂ equivalent during the manufacturing phase.

Key Features

10kA breaking capacity at 400V with B-curve tripping characteristic between 3-5 In
3-pole configuration with 20A rated current and 500V rated insulation voltage
Energy limitation class 3 for maximum fault current limitation
IP20 fingerproof protection against solid bodies larger than 12.5mm
DIN-rail mounting with dual clamps for independent removal
Compatible with Legrand DX3 auxiliaries and RCD add-on modules
Halogen-free and environmentally conscious design
Wide conductor compatibility: 1.5-35mm² solid-core, 1.5-25mm² multi-wired
Label holder and clear ON/OFF indication on handle
Operates reliably from -25°C to +70°C

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit Breaker (MCB)
Brand	Legrand
Model Series	DX3
Reference Number	408992
EAN Code	3245064089920
Number of Poles	3 poles
Rated Current	20 Amperes
Release Characteristic	B-curve (3-5 In)
Rated Voltage	400 Volts AC
Rated Insulation Voltage	500 Volts
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity at 230V	16 kA (Icn)
Breaking Capacity at 400V	10 kA (Icn)
Ultimate Breaking Capacity at 230V	32 kA (Icu)
Ultimate Breaking Capacity at 400V	16 kA (Icu)
Current Limiting Class	Class 3
Frequency	50-60 Hz
Degree of Protection	IP20
Pollution Degree	2
Connector Type	Screwed terminal
Solid-Core Conductor Cross Section	1.5-35 mm²
Multi-Wired Conductor Cross Section	1.5-25 mm²
Mounting Method	DIN rail
Width	53.1 mm
Height	94.8 mm
Depth	77.8 mm (Built-in depth: 44 mm)
Modular Width	3 modular spacings
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +70°C
Impact Strength	IK02
Color	Grey (RAL 7035)
Halogen Free	Yes
Concurrent Neutral Switching	No
Flush-Mounted Installation	Yes
Additional Equipment Possible	Yes
Explosion-Proof	No
Manufacturing Carbon Footprint	2.980 kg CO₂ equivalent
Compatible Accessories	Legrand DX3 auxiliaries, RCD add-on modules, aluminum cable terminal accessory
Supply Methods	Copper cable, prong busbar, fork busbar, Legrand HX3 plug busbar
Standards Compliance	IEC 60898-1, IEC/EN 60529, IEC 60947-2, RoHS, REACH

Order Legrand DX3 MCB 3 Pole 20A Circuit Breaker B-Curve | 408992 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
