Description

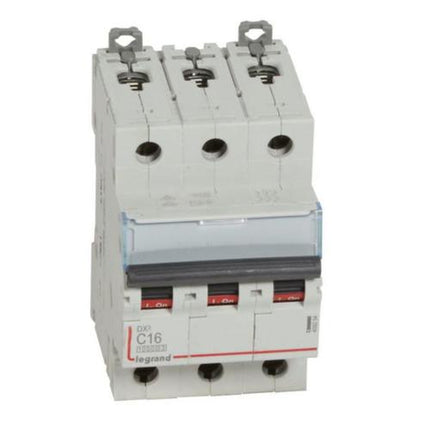

Shop Legrand DX3 MCB 3 Pole 16A Curve C Circuit Breaker | 409254 In Iraq Best Prices

Legrand DX3 thermal-magnetic circuit breaker with 16A C curve and 10000A breaking capacity for reliable protection of residential and commercial electrical installations.

The Legrand DX3 MCB 10000A is a high-performance thermal-magnetic circuit breaker designed to protect wiring installations against overloads and short circuits. With a rated current of 16A and C curve characteristic, this 3-pole breaker delivers a breaking capacity of 10000A at 400V, making it ideal for residential and small commercial applications. The device features advanced protection mechanisms with a tripping threshold between 80A and 160A for short-circuit conditions, ensuring reliable safety for your electrical infrastructure. This circuit breaker combines protection with control and isolation capabilities, allowing you to manage your installation effectively. The DX3 series is compatible with Legrand auxiliaries, RCD add-on modules, and various accessories, providing flexibility for system expansion. The breaker features DIN rail mounting with dual clamps for independent removal without disturbing the busbar system. With IP20 protection rating against solid bodies larger than 12.5mm and current limiting class 3, this device meets the highest safety standards. The MCB DX3 is engineered for environmental consciousness and compliance with substance-restriction requirements. It features a convenient label holder for circuit identification and clear ON/OFF indication on the handle with red and green backgrounds. The product is halogen-free and suitable for ambient temperatures ranging from -25°C to 70°C, with storage capabilities from -40°C to 70°C. Installation should be performed by qualified electricians in compliance with local electrical codes.

Key Features

Breaking capacity of 10000A according to IEC 60898-1 standard for household installations
Three-pole configuration with 16A rated current and C curve release characteristic
Thermal-magnetic protection against overloads and short circuits with tripping threshold 80A-160A
IP20 protection rating against solid bodies larger than 12.5mm with current limiting class 3
Compatible with Legrand DX3 auxiliaries, RCD add-on modules and various accessories
DIN rail mounting with dual independent clamps for easy installation and removal
Label holder for circuit identification with clear ON/OFF indication on handle
Halogen-free design with environmentally conscious manufacturing process
Accepts copper cable, prong busbar, fork busbar or Legrand HX3 plug busbar connection
Operating temperature range -25°C to 70°C with storage capability -40°C to 70°C

Technical Specifications

Specification	Value
Product Name	MCB DX3 10000A 3 Pole 16A Curve C
Reference Number	409254
EAN Code	3245064092548
Brand	Legrand
Series	DX³
Number of Poles	3
Rated Current	16 A
Release Characteristic	C Curve
Rated Voltage	400 V
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity at 230V	16 kA
Breaking Capacity at 400V	10 kA
Short-circuit Breaking Capacity Icu at 230V	32 kA
Short-circuit Breaking Capacity Icu at 400V	16 kA
Voltage Type	AC
Frequency	50-60 Hz
Current Limiting Class	3
Degree of Protection	IP20
Width in Modular Spacings	3
Width	53.1 mm
Height	94.8 mm
Depth	77.8 mm
Built-in Depth	44 mm
Degree of Impact Strength	IK02
Ambient Temperature Operating Range	-25°C to 70°C
Storage Temperature Range	-40°C to 70°C
Connectable Conductor Cross Section Solid-core	1.5-35 mm²
Connectable Conductor Cross Section Multi-wired	1.5-25 mm²
Connection Type	Screwed Terminal
Electric Supplying Direction	By the top or bottom
Mounting Method	DIN Rail
Flush-mounted Installation	Yes
Concurrently Switching Neutral Conductor	No
Pollution Degree	2
Additional Equipment Possible	Yes
Colour	Grey
RAL Number	7035
Halogen Free	Yes
Explosion-proof	No
Label Space/Information Surface	Yes
Carbon Footprint Manufacturing Phase	2.906 kg CO2 eq.
Number of Protected Poles	3
Tripping Threshold Short-circuit	80A-160A (5In-10In)

Order Legrand DX3 MCB 3 Pole 16A Curve C Circuit Breaker | 409254 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
