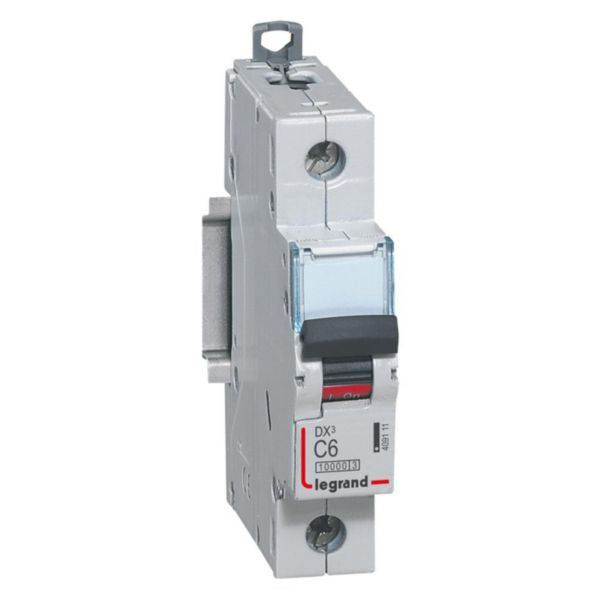

Shop Legrand DX3 MCB 1 Pole 6A Curve C Circuit Breaker | 409111 In Iraq Best Prices
Thermal magnetic circuit-breaker with 6A C curve, 10000A breaking capacity, IP20 protection, and DIN rail mounting for residential and commercial electrical installations
The Legrand DX3 MCB 10000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This 1-pole device features a 6A rated current with C curve release characteristic, offering a breaking capacity of 10000A according to IEC 60898-1 standard. The circuit breaker provides IP20 protection, making it fingerproof against solid bodies larger than 12.5mm, and is mounted on DIN rail for easy installation and removal. The device features energy limitation class 3 according to IEC 60898-1 standard, ensuring maximum protection for your electrical installation.
This MCB can be supplied by copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side). It is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, making it highly versatile for different installation requirements. The device is equipped with two DIN rail clamps allowing independent removal when the prong busbar is still in place. It features a label holder for clear circuit identification and ON/OFF indication printed on the handle with red and green backgrounds for easy status identification.
The product complies with substance-restriction requirements and has been designed in an environmentally conscious process. With a built-in depth of 44mm, width of 17.8mm, and height of 94.8mm, this compact device is suitable for residential and small commercial applications. The carbon footprint during the manufacturing phase is 0.833 kg CO2 eq., reflecting its sustainable design. All installation should be performed by qualified electricians in compliance with local installation rules.
Key Features
- Breaking capacity of 10000A according to IEC 60898-1 standard for household installations
- C curve release characteristic with tripping threshold between 30A and 60A (5 In to 10 In)
- IP20 protection - fingerproof against solid bodies larger than 12.5mm
- Energy limitation class 3 for maximum let-through energy limitation
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories
- Dual DIN rail clamps allowing independent removal during operation
- Label holder with ON/OFF indication for easy circuit identification
- Screwed terminal connection for copper and aluminum cables
- Suitable for both top and bottom electric supply direction
- Environmentally conscious design with halogen-free materials
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Rated Current | 6 Amperes |
| Release Characteristic | C Curve |
| Number of Poles | 1 Pole |
| Breaking Capacity | 10000A at 230V (Icn) / 16000A at 230V (Icu) |
| Rated Voltage | 230V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4 kV |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 |
| Impact Strength | IK02 |
| Connection Type | Screwed Terminal |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Connectable Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Mounting Method | DIN Rail |
| Built-in Depth | 44 mm |
| Width | 17.8 mm |
| Height | 94.8 mm |
| Modular Width | 1 Module (17.5 mm) |
| Colour | Grey (RAL 7035) |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Pollution Degree | 2 |
| Material Composition | Halogen Free |
| Carbon Footprint (Manufacturing) | 0.833 kg CO2 eq. |
| Reference Number | 409111 |
| EAN Code | 3245064091114 |
| Neutral Conductor Switching | No |
| Additional Equipment Possible | Yes |
