Legrand DX3 single-pole 6A curve D circuit-breaker with 25kA breaking capacity, IP20 finger-safe design, and comprehensive protection for residential and small commercial installations.

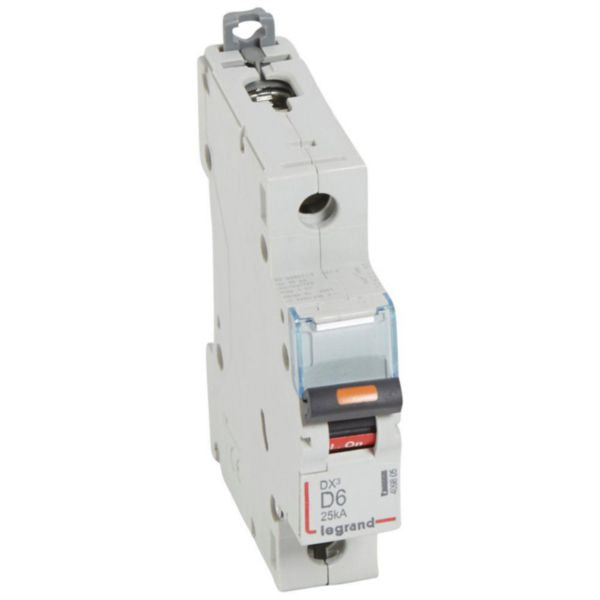

The Legrand DX3 MCB is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. This single-pole 6A curve D breaker features a 25kA breaking capacity at 230V, providing reliable protection for residential and small commercial electrical systems. The device is IP20 finger-safe rated, ensuring protection against solid bodies larger than 12.5mm, making it suitable for installation in accessible areas.
This circuit-breaker can be supplied by copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side). It is equipped with DIN rail clamps on both top and bottom sides, allowing independent removal even when the prong busbar supplying the row remains in place. The breaker features a convenient label holder for clear circuit identification and ON/OFF indication printed on the handle with red and green backgrounds for easy status recognition.
The DX3 MCB complies with IEC 60947-2 standards and includes a D-curve tripping characteristic with a short-circuit tripping threshold between 60A and 84A (10-14 times rated current). It can be equipped with Legrand DX3 auxiliaries and accessories, and supports connection to aluminum cables with appropriate terminal accessories. The product is halogen-free and designed in an environmentally conscious process, meeting all substance-restriction requirements. Built-in depth of 44mm and width of 17.8mm makes it compact for space-efficient installations.
Key Features
- 25kA breaking capacity at 230V according to IEC 60947-2 standards
- D-curve tripping characteristic with 60A-84A short-circuit threshold (10-14 times rated current)
- IP20 finger-safe design protecting against solid bodies larger than 12.5mm
- Dual DIN rail clamps for independent removal without disturbing busbar supply
- Compatible with Legrand DX3 auxiliaries, accessories, and aluminum cable connections
- Label holder with ON/OFF indication in red and green backgrounds
- Compact design with 44mm built-in depth and 17.8mm width
- Multiple supply options: copper cable, prong busbar, fork busbar, or HX3 plug busbar
- Halogen-free and environmentally conscious manufacturing process
- Operating temperature range -25°C to +70°C with storage range -40°C to +70°C
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit-Breaker |
| Manufacturer | Legrand |
| Product Series | DX3 |
| Reference Number | 409805 |
| EAN Code | 3245064098052 |
| Number of Poles | 1 pole (single pole) |
| Rated Current | 6 Amperes |
| Tripping Curve | D-curve |
| Rated Voltage | 230V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity | 25 kA at 230V according to IEC 60947-2 |
| Short-Circuit Tripping Threshold | 60A to 84A (D curve 10-14 times rated current) |
| Frequency | 50-60 Hz |
| Degree of Protection | IP20 (finger-safe) |
| Degree of Impact Strength | IK02 |
| Width in Modular Spacings | 1 module |
| Width | 17.8 mm |
| Height | 94.8 mm |
| Built-in Depth | 44 mm |
| Total Depth | 77.8 mm |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Connectable Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Connection Type | Screwed terminal, Busbar and cable |
| Mounting Method | DIN rail |
| Supply Direction | Top or bottom |
| Flush-mounted Installation | Yes |
| Concurrently Switching Neutral Conductor | No |
| Pollution Degree | 3 |
| Additional Equipment Possible | Yes |
| Colour | Grey |
| RAL Number | 7035 |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Nominal Voltage Range | 210-250V |
| Halogen Free | Yes |
| Explosion-proof | No |
| Label Space/Information Surface | Yes |
| Carbon Footprint (Manufacturing Phase) | 0.947 kg CO2 eq. |
| Warranty | Standard Legrand warranty terms apply |
