Shop Legrand DX3 MCB 1 Pole 63A D-Curve Circuit Breaker | 410193 In Iraq Best Prices

Thermal magnetic circuit-breaker with 50kA breaking capacity, D-curve tripping, 63A rating, and IP20 protection for reliable electrical system protection and control.

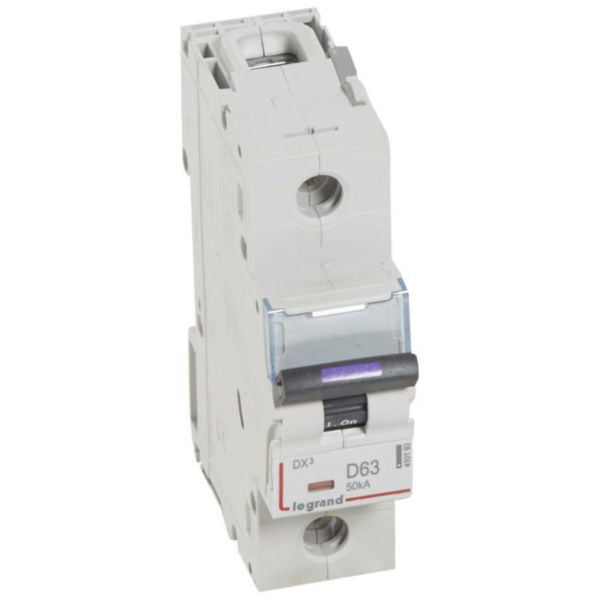

The Legrand DX3 MCB 1 Pole 63A D-Curve Circuit Breaker (Reference 410193) is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With an impressive 50kA breaking capacity at 230V, this device provides robust protection for residential and small commercial electrical systems. The D-curve tripping characteristic ensures reliable performance in applications requiring delayed response to overcurrents, making it ideal for circuits with inductive loads or motor applications. This single-pole breaker can also control and isolate the installation, offering both protection and operational flexibility. The device features a red/green mechanical indicator that clearly displays the status of the contacts (open or closed), along with a label holder for convenient circuit identification. With a rated voltage of 230V AC and an insulation voltage rating of 500V, it meets international safety standards including IEC 60947-2. The breaker is equipped with 1.5 modular spacing width and offers IP20 protection against solid bodies larger than 12.5mm, classifying it as fingerproof according to IEC/EN 60529 standards. This Legrand circuit breaker is engineered for flush-mounted installation with a built-in depth of 47mm and can accommodate copper conductors with cross-sections ranging from 1.5 to 50mm² (solid-core) or 1.5 to 35mm² (multi-wired). The device is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, providing a comprehensive solution for electrical installation requirements. It operates reliably in ambient temperatures from -25°C to 70°C and complies with substance-restriction requirements while being designed through an environmentally conscious manufacturing process.

Key Features

50kA breaking capacity at 230V according to IEC 60947-2 standard for maximum short-circuit protection
D-curve tripping characteristic with threshold between 630A and 882A (10 In to 14 In) for delayed response to overcurrents
Red/green mechanical indicator clearly displays open or closed contact status for easy circuit monitoring
IP20 protection rating fingerproof against solid bodies larger than 12.5mm per IEC/EN 60529 standard
Compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories for system flexibility
Copper cable supply capability from top or bottom side with optional aluminum cable terminal accessory
Single-pole design with 1.5 modular spacing width for compact installation in distribution panels
Operating temperature range -25°C to 70°C with reliable performance in various environmental conditions
Environmentally conscious design complying with substance-restriction requirements and RoHS directives

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit-Breaker (MCB)
Manufacturer	Legrand
Product Line	DX³
Reference/SKU	410193
EAN Code	3245064101936
Number of Poles	1 pole (single-pole)
Rated Current	63 A
Rated Voltage	230 V AC
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	6 kV
Breaking Capacity (Icu)	50 kA at 230 V according to IEC 60947-2
Release Characteristic	D-curve (10 In to 14 In)
Tripping Threshold	630 A to 882 A (short-circuit)
Frequency Range	50-60 Hz
Degree of Protection (IP)	IP20 (fingerproof)
Degree of Impact Strength	IK02
Pollution Degree	3
Built-in Depth	47 mm
Width in Modular Spacings	1.5
Physical Width	26.7 mm
Physical Height	127.5 mm
Physical Depth	79.2 mm
Connectable Conductor Cross-Section (Solid-Core)	1.5 to 50 mm²
Connectable Conductor Cross-Section (Multi-Wired)	1.5 to 35 mm²
Conductor Material	Copper (top or bottom supply) or Aluminum with accessory
Ambient Operating Temperature	-25°C to 70°C
Storage Temperature	-40°C to 70°C
Nominal Voltage Range	210-250 V
Flush-Mounted Installation	Yes
Concurrently Switching Neutral	No
Additional Equipment Possible	Yes - DX3 auxiliaries, RCD add-on modules, accessories
Explosion-Proof	No
Carbon Footprint (Manufacturing)	1.479 kg CO₂ eq.
Compliance Standards	IEC 60947-2, IEC/EN 60529, RoHS Directive
Environmental Design	Substance-restriction compliant, environmentally conscious process
Mechanical Indicator	Red/Green status display (open/closed)
Label Holder	Yes - for circuit identification

Order Legrand DX3 MCB 1 Pole 63A D-Curve Circuit Breaker | 410193 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
