Shop Legrand DX3 MCB 1 Pole 32A Curve D Circuit Breaker | 410190 In Iraq Best Prices

Professional-grade 1-pole 32A circuit breaker with 50kA breaking capacity, D-curve protection, and IP20 safety rating for reliable electrical installation protection.

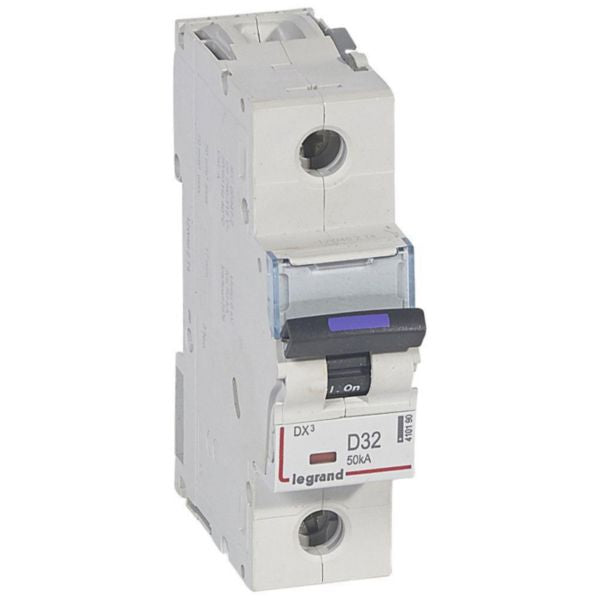

The Legrand DX3 MCB 1 Pole 32A Curve D is a high-performance thermal-magnetic circuit breaker designed to protect wiring installations against overloads and short circuits. With a breaking capacity of 50kA at 230V, this device provides robust protection for demanding electrical circuits. The D-curve tripping characteristic ensures reliable protection with a tripping threshold between 320A and 448A (10-14 times the rated current), making it ideal for circuits with moderate inrush currents such as lighting and heating loads. This circuit breaker features advanced safety characteristics including IP20 protection against solid bodies larger than 12.5mm and compliance with IEC 60947-2 standards. The device is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories, allowing for flexible system integration. The red/green mechanical indicator clearly displays the contact status (open or closed), while the integrated label holder enables convenient circuit identification. Built-in depth of 47mm with 1.5 modular spacing ensures compact installation in standard distribution panels. The product is engineered with environmental consciousness and complies with substance-restriction requirements. It can be supplied by copper cable from either the top or bottom side and can be connected to aluminium cable using the optional terminal accessory. Operating temperature range from -25°C to 70°C and rated insulation voltage of 500V ensure reliable performance in various installation environments. Installation should be performed by qualified electricians in compliance with local electrical codes.

Key Features

50kA breaking capacity at 230V for maximum circuit protection
D-curve tripping characteristic (320-448A) for demanding circuits
IP20 protection against solid bodies larger than 12.5mm
Compatible with Legrand DX3 auxiliaries and RCD add-on modules
Red/green mechanical indicator for clear status display
Compact 1.5 modular spacing design
Wide operating temperature range -25°C to 70°C
Environmentally conscious design with substance-restriction compliance
Supports both copper and aluminium cable connections
Label holder for convenient circuit identification

Technical Specifications

Specification	Value
Product Type	Thermal-magnetic circuit breaker (MCB)
Number of Poles	1 pole
Rated Current	32 A
Tripping Characteristic	D curve (320-448A)
Rated Voltage	230 V AC
Rated Insulation Voltage	500 V
Impulse Withstand Voltage	6 kV
Breaking Capacity	50 kA at 230V (IEC 60947-2)
Frequency	50-60 Hz
Degree of Protection	IP20
Impact Strength Rating	IK02
Built-in Depth	47 mm
Width	26.7 mm
Height	127.5 mm
Total Depth	79.2 mm
Modular Spacing	1.5
Operating Temperature Range	-25°C to 70°C
Storage Temperature Range	-40°C to 70°C
Connectable Conductor Cross Section (Solid-core)	1.5-50 mm²
Connectable Conductor Cross Section (Multi-wired)	1.5-35 mm²
Pollution Degree	3
Flush-mounted Installation	Yes
Concurrently Switching Neutral	No
Additional Equipment Possible	Yes (auxiliaries and RCD modules)
SKU/Reference Number	410190
EAN Code	3245064101905
Carbon Footprint (Manufacturing)	1.427 kg CO₂ eq.
RoHS Compliance	Yes
Nominal Voltage Range	210-250 V
Brand	Legrand

Order Legrand DX3 MCB 1 Pole 32A Curve D Circuit Breaker | 410190 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
