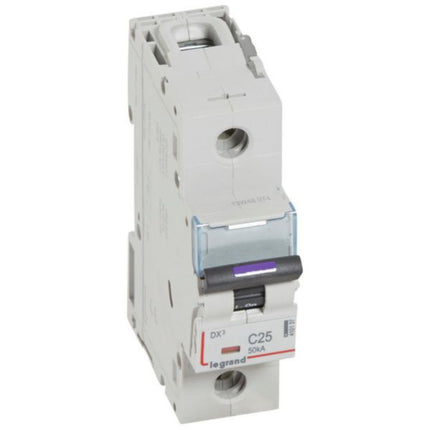

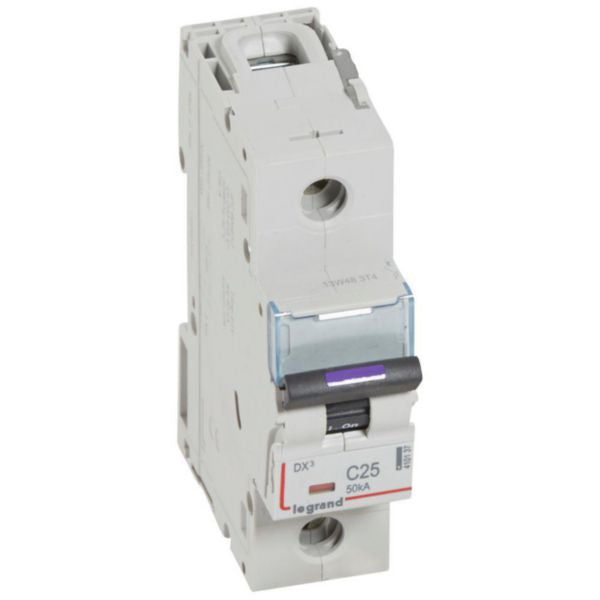

Shop Legrand DX3 MCB 1 Pole 25A Curve C Circuit Breaker | 410137 In Iraq Best Prices
Legrand DX3 thermal magnetic circuit-breaker rated 25A, 1 pole, C curve with 50kA breaking capacity at 230V. Features IP20 fingerproof protection, mechanical status indicator, and compatibility with Legrand DX3 accessories for reliable electrical installation protection.
The Legrand DX3 MCB is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a rated current of 25A at 1 pole and C curve characteristic, this device offers a breaking capacity of 50kA at 230V. The circuit-breaker features IP20 fingerproof protection, making it safe for residential and small commercial applications. It includes a red/green mechanical indicator displaying the open or closed status of contacts, along with a label holder for clear circuit identification. The device can be equipped with Legrand DX3 auxiliaries and accessories, and is compatible with both copper and aluminum cables when using appropriate terminal accessories.
This MCB provides reliable control, isolation, and protection functions for electrical installations. It operates at rated voltage of 230V AC with frequency range of 50-60 Hz and rated insulation voltage of 500V. The tripping threshold in case of short-circuit ranges between 125A and 250A (C curve between 5 In and 10 In), ensuring rapid response to fault conditions. Built-in depth of 47mm and width of 26.7mm allows for compact installation in standard electrical panels. The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Installation should be carried out by qualified electricians in compliance with installation rules. The product meets IEC 60947-2 standards and includes comprehensive technical documentation. It features a storage temperature range of -40 to 70°C and operating ambient temperature of -25 to 70°C, demonstrating reliability across various environmental conditions. With a carbon footprint of 1.453 kg CO2 eq. during the manufacturing phase, this circuit-breaker represents an environmentally responsible choice for electrical protection.
Key Features
- 50kA breaking capacity at 230V according to IEC 60947-2 standard
- C curve tripping characteristic between 125A and 250A (5 In to 10 In)
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Red/green mechanical indicator for open/closed contact status display
- Compatible with Legrand DX3 auxiliaries, accessories, and aluminum cables with terminal accessory
- Label holder for clear and visible circuit identification
- Flush-mounted installation capability in standard electrical panels
- Operating temperature range -25 to 70°C with storage range -40 to 70°C
- Complies with substance-restriction requirements and environmentally conscious design
- Rated insulation voltage 500V with impulse withstand voltage 6kV
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit-Breaker |
| Number of Poles | 1 Pole |
| Rated Current | 25 A |
| Release Characteristic | C Curve |
| Rated Voltage | 230 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 6 kV |
| Breaking Capacity | 50 kA at 230V |
| Frequency | 50-60 Hz |
| Tripping Threshold (Short-Circuit) | 125A to 250A (C curve 5 In to 10 In) |
| Degree of Protection | IP20 |
| Degree of Impact Strength | IK02 |
| Width | 26.7 mm |
| Height | 127.5 mm |
| Depth | 79.2 mm |
| Built-in Depth | 47 mm |
| Width in Modular Spacings | 1.5 |
| Connectable Conductor Cross Section (Multi-wired) | 1.5-35 mm² |
| Connectable Conductor Cross Section (Solid-core) | 1.5-50 mm² |
| Operating Temperature Range | -25 to 70 °C |
| Storage Temperature Range | -40 to 70 °C |
| Nominal Voltage Range | 210-250 V |
| Pollution Degree | 3 |
| Flush-mounted Installation | Yes |
| Additional Equipment Possible | Yes |
| Concurrently Switching Neutral Conductor | No |
| Explosion-proof | No |
| Carbon Footprint (Manufacturing) | 1.453 kg CO2 eq. |
| Reference Number | 410137 |
| EAN Code | 3245064101370 |
