Shop Legrand DX3 MCB 1 Pole 20A D-Curve Circuit Breaker | 410188 In Iraq Best Prices
Legrand DX3 thermal-magnetic circuit breaker with 1 pole, 20A capacity, D-curve characteristic, 50kA breaking capacity, IP20 protection, and compatibility with DX³ auxiliaries for reliable wiring protection.

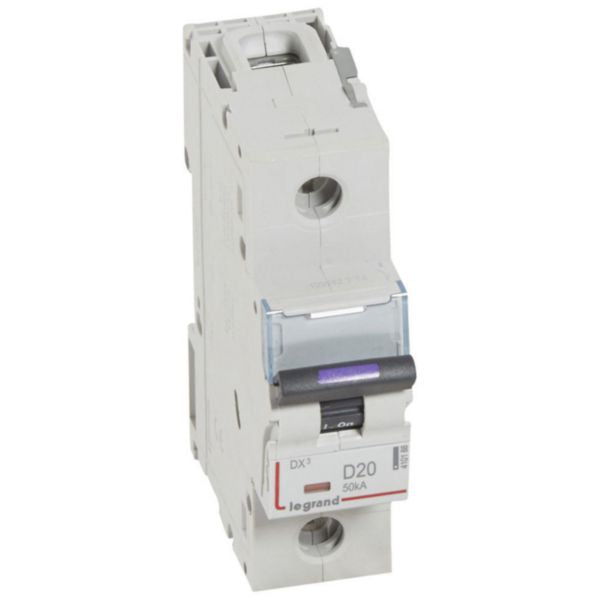

The Legrand DX3 MCB 1 Pole 20A D-Curve Circuit Breaker (Reference 410188) is a thermal-magnetic circuit breaker designed to protect wiring installations against overloads and short-circuits. This high-performance device features a 50kA breaking capacity at 230V, making it suitable for residential and small commercial applications. The D-curve characteristic provides optimal protection with a tripping threshold between 200A and 280A (10-14 times the rated current), ensuring reliable protection without nuisance trips.
This circuit breaker is equipped with IP20 fingerproof protection according to IEC/EN 60529 standards, preventing accidental contact with live parts. The 1.5-module width design allows for space-efficient installation in DX³ distribution boards. The device features a red/green mechanical indicator that clearly displays the status of the contacts (open or closed), and includes a label holder for convenient circuit identification. It can be supplied by copper cable from either the top or bottom side and is compatible with DX³ auxiliaries and RCD add-on modules.
The product complies with substance-restriction requirements and has been designed with environmental consciousness in mind. Operating at a rated voltage of 230V AC with a rated insulation voltage of 500V, this circuit breaker is suitable for ambient temperatures ranging from -25°C to 70°C. It accommodates solid-core conductors from 1.5-50mm² and multi-wired conductors from 1.5-35mm², providing flexibility in installation. The device carries a carbon footprint of 1.459 kgCO₂eq during the manufacturing phase, reflecting Legrand's commitment to environmental responsibility.
Key Features
- Thermal-magnetic protection against overloads and short-circuits with 50kA breaking capacity
- D-curve characteristic with tripping threshold between 200A-280A for optimal protection
- IP20 fingerproof protection preventing accidental contact with live parts
- Red/green mechanical indicator displaying open/closed contact status clearly
- Compatible with DX³ auxiliaries, RCD add-on modules and Legrand accessories
- Space-efficient 1.5-module width design for compact installation
- Accepts copper cable supply from top or bottom connection points
- Label holder for convenient and visible circuit identification
- Rated for 230V AC with 500V insulation voltage and 6kV impulse withstand voltage
- Environmental compliance with substance-restriction requirements and eco-conscious design
Technical Specifications
| Specification |
Value |
| Product Reference | 410188 |
| EAN Code | 3245064101882 |
| Brand | Legrand |
| Series | DX³ |
| Number of Poles | 1 Pole |
| Rated Current | 20 Amperes |
| Release Characteristic | D-Curve |
| Rated Voltage | 230V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 6kV |
| Breaking Capacity | 50kA at 230V according to IEC 60947-2 |
| Short-Circuit Tripping Threshold | 200A to 280A (D-curve between 10 In and 14 In) |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (Fingerproof) |
| Degree of Impact Strength | IK02 |
| Width in Modular Spacings | 1.5 Modules |
| Width Dimension | 26.7 mm |
| Height Dimension | 127.5 mm |
| Depth Dimension | 79.2 mm |
| Built-in Depth | 47 mm |
| Solid-Core Conductor Cross-Section | 1.5-50 mm² |
| Multi-Wired Conductor Cross-Section | 1.5-35 mm² |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Nominal Voltage Range | 210-250V |
| Pollution Degree | 3 |
| Flush-Mounted Installation | Yes |
| Concurrently Switching Neutral | No |
| Additional Equipment Possible | Yes |
| Explosion-Proof | No |
| Carbon Footprint (Manufacturing) | 1.459 kgCO₂eq |
| Mechanical Indicator | Red/Green Status Display |
| Label Holder | Included |
| Cable Supply Options | Top or Bottom Connection |
| Aluminum Cable Compatibility | Yes (with terminal accessory n° 4 063 10) |
| Compliance Standards | IEC 60947-2, IEC/EN 60529, RoHS Directive |
Order Legrand DX3 MCB 1 Pole 20A D-Curve Circuit Breaker | 410188 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
