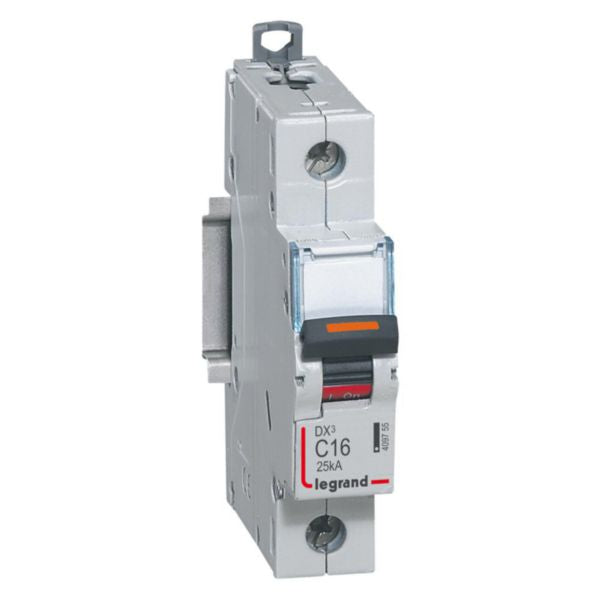

Shop Legrand DX3 MCB 1 Pole 16A Curve C Circuit Breaker | 409755 In Iraq Best Prices

Legrand DX3 single-pole 16A circuit breaker with 25kA breaking capacity, C curve protection, and DIN rail mounting for reliable electrical distribution and overload protection.

The Legrand DX³ MCB is a single-pole modular thermal-magnetic circuit breaker designed for reliable protection and isolation in residential and small commercial applications. With a 25kA short-circuit breaking capacity at 230/400V~, this device delivers superior protection against electrical faults and overloads. The C curve 16A tripping characteristic ensures precise and responsive protection, making it ideal for general purpose circuits in homes and small businesses. The DIN rail mounting system allows for quick and easy installation, while the fully visible breaking mechanism provides clear indication of the circuit status. This circuit breaker features advanced thermal-magnetic tripping technology that responds to both gradual overloads and sudden short circuits. The device is protected against solid bodies larger than 12.5mm (IP20 rating) and can be supplied through multiple connection methods including copper cables, prong busbars, fork busbars, or Legrand HX3 plug busbars. Its compact design with a built-in depth of 44mm makes it suitable for space-constrained installations. The breaker is compatible with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories, providing flexibility for system expansion and customization. The MCB DX3 complies with IEC 60947-2 standards and includes environmentally conscious design features with halogen-free materials. It operates reliably across a wide ambient temperature range from -25°C to +70°C and includes a label holder for clear circuit identification. The ON/OFF indication printed on the handle with red and green backgrounds ensures easy status identification. This product represents Legrand's commitment to quality, safety, and reliability in electrical distribution systems.

Key Features

25kA short-circuit breaking capacity at 230/400V AC for maximum protection
C curve 16A tripping characteristic for precise overload and short-circuit protection
Single-pole thermal-magnetic circuit breaker with fully visible breaking mechanism
DIN rail mounting system with independent removal capability and two clamps
IP20 protection rating with fingerproof design against solid bodies larger than 12.5mm
Compatible with Legrand DX3 auxiliaries, RCD add-on modules and accessories
Multiple connection methods: copper cables, prong busbar, fork busbar, and HX3 plug busbar
Label holder with clear ON/OFF indication in red and green for easy status identification
Halogen-free environmentally conscious design compliant with RoHS and REACH
Wide operating temperature range from -25°C to +70°C for reliable performance

Technical Specifications

Specification	Value
Product Type	Modular Thermal-Magnetic Circuit Breaker (MCB)
Rated Current	16 A
Number of Poles	1 pole
Release Characteristic	C curve (80-160A short-circuit tripping between 5In and 10In)
Rated Voltage	230 V AC
Rated System Voltage	230/400 V three-phase
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Short-Circuit Breaking Capacity (Icu)	25 kA at 230 V according to IEC 60947-2
Frequency	50-60 Hz
Voltage Type	AC (Alternating Current)
Connection Type	Screwed terminal, Busbar and cable connections
Connectable Conductor Cross Section (Solid-core)	1.5-35 mm²
Connectable Conductor Cross Section (Multi-wired)	1.5-25 mm²
Mounting Method	DIN rail (35mm)
Width in Modular Spacings	1 module
Width	17.8 mm
Height	94.8 mm
Built-in Depth	44 mm
Overall Depth	77.8 mm
Degree of Protection (IP)	IP20 - Fingerproof against solid bodies larger than 12.5mm
Impact Strength Rating (IK)	IK02
Pollution Degree	3
Ambient Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +70°C
Nominal Voltage Range	210-250 V
Electric Supply Direction	Top or bottom
Colour	Grey
RAL Number	7035
Halogen Free	Yes
Explosion-proof	No
Additional Equipment Possible	Yes - Compatible with Legrand DX3 auxiliaries and RCD add-on modules
Flush-mounted Installation	Yes
Concurrently Switching Neutral Conductor	No
Label Space/Information Surface	Yes - Integrated label holder
Terminal Marking Indication	No
Reference Number	409755
EAN Code	3245064097550
Carbon Footprint (Manufacturing Phase)	0.969 kg CO2 eq.
Standards Compliance	IEC 60947-2, IEC/EN 60529, RoHS Directive, REACH Declaration
Warranty	Legrand standard warranty - see product documentation

Order Legrand DX3 MCB 1 Pole 16A Curve C Circuit Breaker | 409755 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
